C9115AXE-A Overview

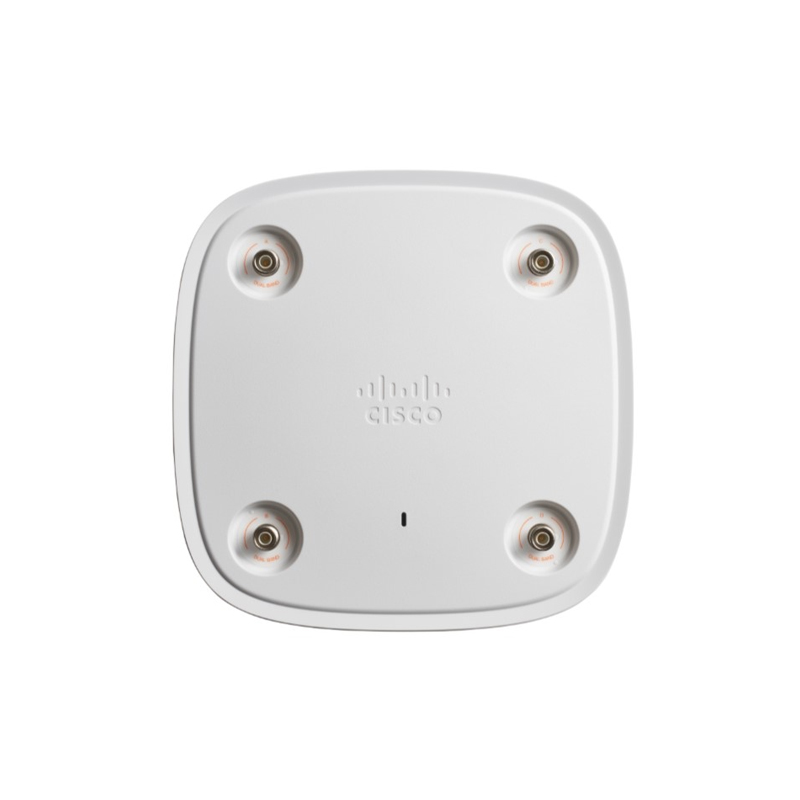

Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, A Domain C9115AXE-A
Overview
C9115AXE-A Overview
Cisco Catalyst 9115AXE, 100,1000,2500 Mbit/s, IEEE 802.11ax, 10/100/1000Base-T(X), Multi User MIMO, Grey, Status
Cisco® Catalyst® 9115 Series Wi-Fi 6 Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. C9115AXE-A is the Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, A Domain.
Product Details
Cisco AP 9115 series provides these features:
- 802.11ax (Wi-Fi 6)
- Uplink/downlink OFDMA
- MU‑MIMO technology
- BSS coloring
- Target wake time
- Cisco Mobility Express
- Multigigabit Ethernet support
- Bluetooth 5.0
- Apple Features
Supported Platforms
Supported wireless LAN controllers and Software | Recommended Model |
Cisco 3500 Series Wireless Controllers | |
Cisco 5520 Series Wireless Controllers | |
Cisco 8540 Series Wireless Controllers | |
Cisco 9800 series Wireless Controllers | |
Cisco Virtual Wireless Controller | / |
Cisco Unified Wireless Network Software Release 8.9 or later | / |
Cisco IOS ® XE Software Release 16.11 or later | / |
Compare to Similar Items
SKU | Description |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, A Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, B Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, D Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, E Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, I Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, K Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, Q Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, S Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, Z Domain |
Catalyst 9115AXE Access Point: Indoor, challenging environments, with external antennas
- ● Wi-Fi 6 certifiable
- ● Three radios: 2.4 GHz (4x4), 5 GHz (4x4), and BLE
- ● OFDMA and MU-MIMO
- ● Multigigabit support
- ● Internal or external antenna
- ● Available with optional embedded wireless controller
- 2.4 GHz
- 5 GHz
- IEEE 802.11ax
- Power over Ethernet (PoE)
- Internal & external
Summary Description
Cisco Catalyst 9115AXE, 100,1000,2500 Mbit/s, IEEE 802.11ax, 10/100/1000Base-T(X), Multi User MIMO, Grey, Status
Need help with C9115AXE-A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
C9115AXE-A Specification
C9115AXE-A Specification | |
Description | Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, A Domain |
Software | ● Cisco Unified Wireless Network Software Release 8.9 or later ● Cisco IOS ® XE Software Release 16.11 or later |
Supported wireless LAN controllers | ● Cisco Catalyst 9800 Series Wireless Controllers ● Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller |
802.11n version 2.0 (and related) capabilities | ● 4x4 MIMO with four spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
802.11ac | ● 4x4 downlink MU-MIMO with four spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support |
802.11ax | ● 4x4 downlink MU-MIMO with four spatial streams ● Uplink/downlink OFDMA ● TWT ● BSS coloring ● MRC ● 802.11ax beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support |
Integrated antenna | ● 2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
External antenna (sold separately) | ● Cisco Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios |
Interfaces | ● 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ● Management console port (RJ-45) ● USB 2.0 (enabled via future software) |
Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
Dimensions (W x L x H) | ● Access point (without mounting brackets): C9115I: 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm), C9115E: 8.0 x 8.0 x 1.7 in. (20.3 x 20.3 x 4.3 cm) |
Input power requirements | ● 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®) ● Cisco power injector, AIR-PWRINJ6= ● 802.3af PoE ● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off. |
Environmental | Cisco Catalyst 9115AXI ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 122°F (0° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft. Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled. Cisco Catalyst 9115AXE ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: -4° to 122°F (-20° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft. |
System memory | ● 2048 MB DRAM ● 1024 MB flash |
Available transmit power settings | 2.4 GHz ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1dBm (0.79mW) ● -4dBm (0.39mW) 5 GHz ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1dBm (0.79mW) ● -4dBm (0.39mW) |
Frequency band and 20-MHz operating channels | A (A regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels |
Frequently Asked Questions
What are the primary performance advantages of the Cisco C9115AXE-A Wi-Fi 6 technology? +
The C9115AXE-A leverages 802.11ax standards to significantly improve network efficiency and throughput in high-density environments. By utilizing OFDMA and MU-MIMO, this access point manages multiple client connections simultaneously, reducing latency and increasing total capacity compared to previous 802.11ac wave 2 deployments. It is an ideal choice for organizations looking to optimize performance for bandwidth-intensive applications.
Does the C9115AXE-A require specific antennas for installation? +
Yes, the 'E' suffix in the product model signifies that this unit features external antenna connectors. You must procure and attach compatible external antennas to achieve the desired coverage pattern, whether you need directional antennas for focused areas or omnidirectional antennas for wide-open spaces. This design offers flexibility in physical deployment scenarios where ceiling mounting or specific signal propagation is required.
How does the 4x4:4 MIMO configuration benefit network connectivity? +
The 4x4:4 MIMO architecture allows the access point to utilize four spatial streams for both transmitting and receiving data. This increases the total spatial multiplexing capability, enabling faster data rates for compatible clients and improved reliability in environments with significant multipath interference. It ensures that the AP can handle concurrent high-speed traffic demands from multiple devices without compromising individual connection quality.
What does the 'A' regulatory domain indicate for the C9115AXE-A? +
The 'A' regulatory domain indicates that this specific model is pre-configured to comply with the radio frequency regulations of the United States and North American markets. It is critical to ensure that your AP's domain matches your deployment region to maintain legal compliance with local spectrum authorities and to ensure that channels and power levels operate within certified parameters.
Can the Cisco Catalyst 9115AX series be managed via Cisco DNA Center? +
Absolutely. The Catalyst 9115AX series is fully integrated with Cisco DNA Center, enabling advanced automation, deep analytics, and simplified management across your wireless fabric. This centralized approach allows IT teams to monitor performance, push configuration updates, and troubleshoot connectivity issues across the entire site from a single dashboard, significantly reducing operational overhead for enterprise deployments.
Is the C9115AXE-A suitable for mounting in challenging enterprise environments? +
Given its support for external antennas, this unit is exceptionally versatile for difficult mounting scenarios. It excels in environments like warehouses, high-ceiling auditoriums, or facilities with physical obstructions where integrated antenna models might struggle to provide adequate coverage. The external antenna connectors allow administrators to extend the radio signal precisely where it is needed most, bypassing physical signal blockers.
How should I power the C9115AXE-A access point? +
This unit is designed to be powered via Power over Ethernet (PoE), utilizing either 802.3at PoE+ or 802.3af PoE standards depending on the desired feature set and radio operation modes. For optimal performance of all radios and spatial streams, we generally recommend using an 802.3at-compliant power source to ensure the access point has sufficient power headroom for high-load operations.
Is the C9115AXE-A compatible with existing Cisco wireless LAN controllers? +
The C9115AXE-A is designed for seamless integration with Cisco Catalyst 9800 series controllers and is compatible with modern Cisco wireless infrastructures. We recommend verifying your current software version on your controller, as Wi-Fi 6 access points typically require updated firmware to leverage the latest security and management features available within the Cisco Catalyst ecosystem.
