C9115AXE-D - Cisco Catalyst 9115 Access Point
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
- Authenticity: Original Genuine OEM
C9115AXE-D
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com SAM.gov Registered Vendor CAGE Code : 23P86
overview
specifications
faqs
reviews
C9115AXE-D Overview

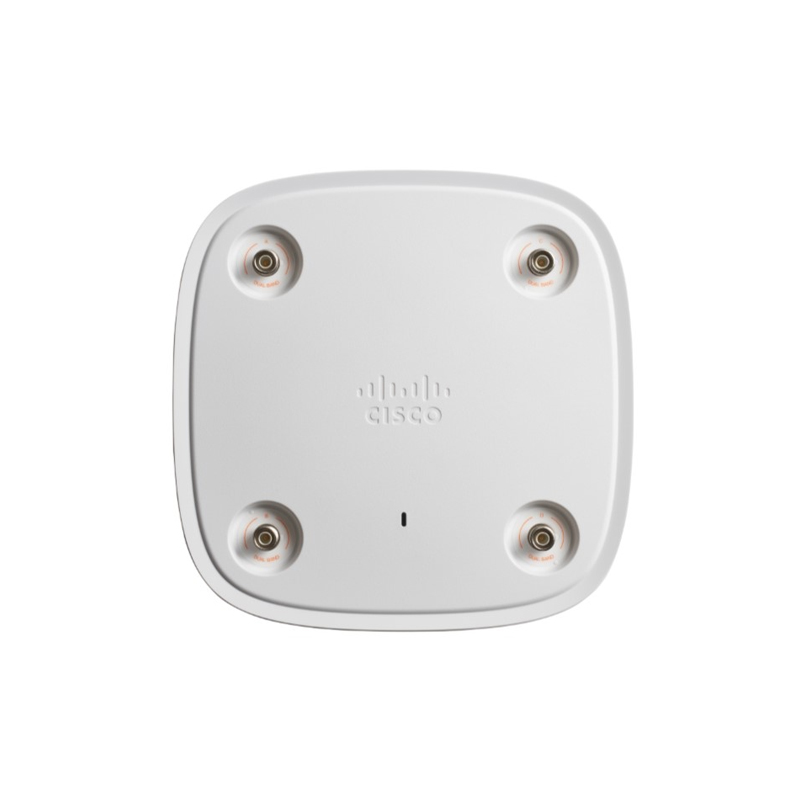

Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, D Domain C9115AXE-D
Overview
C9115AXE-D Overview
Cisco 9115, 2500 Mbit/s, IEEE 802.11ac
Cisco® Catalyst® 9115 Series Wi-Fi 6 Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. C9115AXE-D is the Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, D Domain.
Product Details
Cisco AP 9115 series provides these features:
- 802.11ax (Wi-Fi 6)
- Uplink/downlink OFDMA
- MU‑MIMO technology
- BSS coloring
- Target wake time
- Cisco Mobility Express
- Multigigabit Ethernet support
- Bluetooth 5.0
- Apple Features
Supported Platforms
Supported wireless LAN controllers and Software | Recommended Model |
Cisco 3500 Series Wireless Controllers | |
Cisco 5520 Series Wireless Controllers | |
Cisco 8540 Series Wireless Controllers | |
Cisco 9800 series Wireless Controllers | |
Cisco Virtual Wireless Controller | / |
Cisco Unified Wireless Network Software Release 8.9 or later | / |
Cisco IOS ® XE Software Release 16.11 or later | / |
Compare to Similar Items
SKU | Description |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, A Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, B Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, D Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, E Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, I Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, K Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, Q Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, S Domain | |
Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, Z Domain |
4x4 downlink MU-MIMO, 802.11ac, 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45), USB 2.0, regulatory domain D
- Wi-Fi 6 certifiable
- Three radios: 2.4 GHz (4x4), 5 GHz (4x4), and BLE
- OFDMA and MU-MIMO
- Multigigabit support
- Internal or external antenna
- Available with optional embedded wireless controller
- 2.4 GHz
- 5 GHz
- IEEE 802.11ac
Summary Description
Cisco 9115, 2500 Mbit/s, IEEE 802.11ac
Need help with C9115AXE-D?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
C9115AXE-D Specification
C9115AXE-D Specification | |
Description | Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, D Domain |
Software | ● Cisco Unified Wireless Network Software Release 8.9 or later ● Cisco IOS ® XE Software Release 16.11 or later |
Supported wireless LAN controllers | ● Cisco Catalyst 9800 Series Wireless Controllers ● Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller |
802.11n version 2.0 (and related) capabilities | ● 4x4 MIMO with four spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
802.11ac | ● 4x4 downlink MU-MIMO with four spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support |
802.11ax | ● 4x4 downlink MU-MIMO with four spatial streams ● Uplink/downlink OFDMA ● TWT ● BSS coloring ● MRC ● 802.11ax beamforming ● 20-, 40-, 80-, and 160-MHz channels ● PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● 802.11 DFS ● CSD support |
Integrated antenna | ● 2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
External antenna (sold separately) | ● Cisco Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios |
Interfaces | ● 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ● Management console port (RJ-45) ● USB 2.0 (enabled via future software) |
Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
Dimensions (W x L x H) | ● Access point (without mounting brackets): C9115I: 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm), C9115E: 8.0 x 8.0 x 1.7 in. (20.3 x 20.3 x 4.3 cm) |
Input power requirements | ● 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®) ● Cisco power injector, AIR-PWRINJ6= ● 802.3af PoE ● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off. |
Environmental | Cisco Catalyst 9115AXI ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 122°F (0° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft. Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled. Cisco Catalyst 9115AXE ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: -4° to 122°F (-20° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft. |
System memory | ● 2048 MB DRAM ● 1024 MB flash |
Available transmit power settings | 2.4 GHz ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1dBm (0.79mW) ● -4dBm (0.39mW) 5 GHz ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1dBm (0.79mW) ● -4dBm (0.39mW) |
Frequency band and 20-MHz operating channels | D (D regulatory domain): ● 2.412 to 2.462 GHz; 11 channels |
Frequently Asked Questions
What are the primary performance benefits of the Cisco C9115AXE-D's 4x4:4 MIMO configuration? +
The 4x4:4 MIMO architecture significantly enhances throughput and spatial streams, allowing the access point to manage multiple simultaneous data flows efficiently. This setup provides robust connectivity for high-density environments, ensuring that both legacy devices and modern Wi-Fi 6 clients experience improved spectral efficiency and faster data rates compared to older 802.11ac wave 2 standards.
Does the C9115AXE-D support external antennas, and what are the deployment advantages? +
Yes, the C9115AXE-D is specifically designed for external antennas. This versatility is ideal for deployments requiring specialized coverage patterns, such as high-ceiling warehouses or areas with significant physical obstructions. By attaching directional or high-gain antennas, network administrators can precisely focus the wireless signal where it is needed most, optimizing coverage range and reliability in challenging indoor radio frequency environments.
What does the 'D' domain designation signify for the Cisco C9115AXE-D? +
The 'D' regulatory domain identifier confirms that this specific SKU is configured for use within the regulatory jurisdiction of the United States. It ensures that the access point adheres to local FCC standards regarding frequency usage, channel allocation, and transmit power levels, maintaining legal compliance for wireless operations within domestic networks.
Is the C9115AXE-D compatible with existing Cisco Catalyst 9800 Series wireless controllers? +
Absolutely. The C9115AXE-D is fully compatible with Cisco Catalyst 9800 Series wireless controllers and legacy AireOS controllers. This integration allows for seamless migration to Wi-Fi 6, enabling advanced features like Application Visibility and Control (AVC), proactive troubleshooting, and unified management across your campus or branch network infrastructure.
How does the Wi-Fi 6 technology in this access point impact battery life for mobile devices? +
The Wi-Fi 6 standard incorporates Target Wake Time (TWT), a critical feature supported by the C9115AXE-D. TWT allows the access point to schedule communication sessions with client devices, letting them remain in a low-power sleep state when not transmitting data. This reduces contention and significantly extends the battery life of mobile endpoints, including IoT sensors and enterprise smartphones.
What is the recommended power delivery method for the Cisco C9115AXE-D? +
This access point is powered via Power over Ethernet (PoE), typically requiring 802.3at (PoE+) for full functionality. When connected to a standard 802.3at switch, the C9115AXE-D provides comprehensive performance for all four spatial streams. Ensure your switching infrastructure supports the necessary power budget to maintain stable operation across your entire wireless deployment.
Can the C9115AXE-D be managed through Cisco DNA Center? +
Yes, the C9115AXE-D is a core component of the Cisco DNA architecture. By integrating with Cisco DNA Center, administrators gain access to software-defined access (SD-Access), automated provisioning, and sophisticated AI-driven analytics. This platform enables centralized management and granular insights, simplifying day-to-day operations and network security across distributed enterprise environments.
Why is the C9115AXE-D suitable for high-density enterprise environments? +
Built for high-density performance, this AP utilizes OFDMA and MU-MIMO to handle traffic from multiple users simultaneously without collisions. These Wi-Fi 6 enhancements allow the C9115AXE-D to maintain high throughput and low latency even in congested spaces like conference rooms or lecture halls, providing a consistent user experience despite the increased demand for high-bandwidth applications.
How can I obtain a bulk quote for multiple C9115AXE-D units from BuyRouterSwitch.com? +
If you are planning a large-scale wireless rollout, contact our sales team directly through the BuyRouterSwitch.com website. We specialize in providing competitive volume pricing for enterprise procurement managers and IT departments. Simply submit your bill of materials or request a quote for your specific quantity requirements, and our team will provide a tailored proposal to support your infrastructure budget.
Why should I purchase Cisco hardware from BuyRouterSwitch.com? +
BuyRouterSwitch.com is a trusted provider of authentic enterprise networking equipment. We offer a streamlined procurement process for professional IT teams looking to secure genuine Cisco hardware quickly. By choosing us, you benefit from our industry expertise, dedicated support for large-volume orders, and a secure online purchasing environment designed to help you scale your network infrastructure with confidence.
