C1117-4PLTEEA Overview
ISR 1100 4P DSL Annex A Router w/ LTE Adv SMS/GPS EMEA & NA C1117-4PLTEEA
Overview
C1117-4PLTEEA Overview

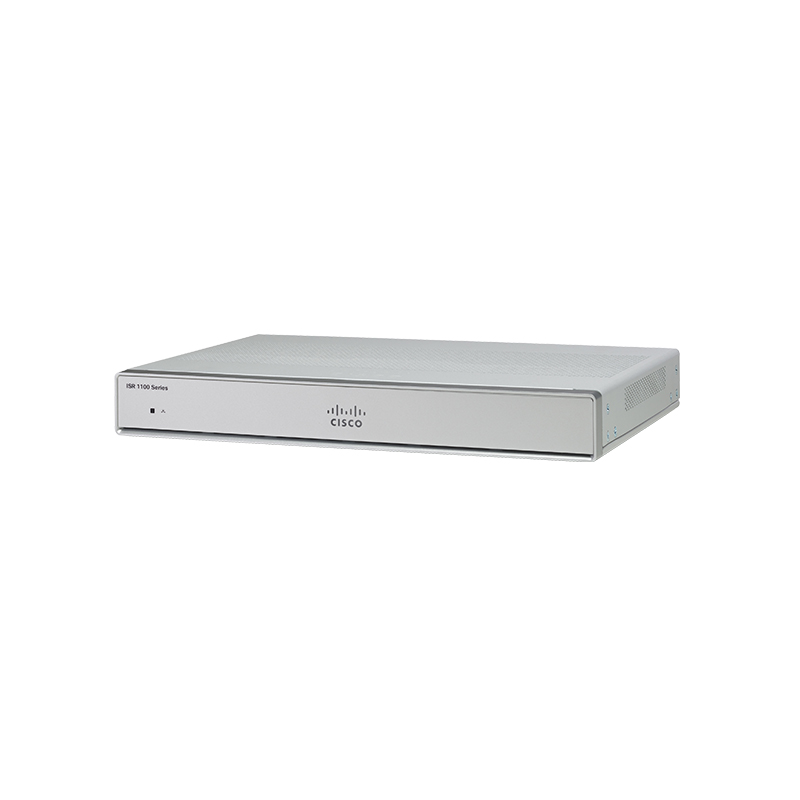

Cisco C1117-4PLTEEA Integrated Services Router with 4-Gigabit Ethernet (GbE) Ports, 1 ADSL2/VDSL2+ (Annex A) Router with LTE Advanced (CAT6), SMS/GPS, 1-Year Limited Hardware Warranty (C1117-4PLTEEA), Ethernet LAN, Grey, Tabletop router
Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1117-4PLTEEA is the ISR 1100 4P Annex A Router with w/ LTE Adv, SMS/GPS EMEA & NA.
Quick Spec
Model | C1117-4PLTEEA |
WAN GE | N/A |
WAN GE/SFP combo | 1 |
ADSL2/VDSL2+ | 1 ADSL2/VDSL2+ (Annex A) |
LTE Advanced (CAT6) | 1 EMEAR & North America |
802.11ac | N/A |
LAN GE | 4 |
PoE | 2 |
PoE+ | 1 |
Integrated USB 3.0 AUX/console | Yes |
Dimensions (H x W x D) | H x W X D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet) |
Weight with AC PS (w/o modules) | 5.5 Lbs. (2.5 kg) maximum |
Product Details
Business need | Features/description |
Lightweight, compact size with low power consumption | ●Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors. |
High performance to run concurrent services | ●High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. |
High availability and business continuity | ● Redundant WAN connections for failover protection and load balancing. ● Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
Consistent, high application performance levels | ● The router can run multiple services simultaneously with minimal performance degradation. |
Risk mitigation with multilevel security | ● Network perimeter security with integrated application inspection firewall. ● Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. ● High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN ● Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources. ● Enforced security policy with OpenDNS. ● Security hardware acceleration. ● Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. ● Encrypted traffic analytics maintain integrity of encrypted flow |
Unified control of wired and wireless networks from a common console for streamlined operations | ● Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller. ● Supports Mobility Express for WLAN-enabled routers. |
Remote configuration and management to keep local IT staff lean | ● Supports separate console/auxiliary and USB ports. ● Can be configured to work with optional USB token. ● Supports TR-069. |
Performance ● Throughput ● Service reliability | ● Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P. ● A distributed multicore architecture with the industry’s first internal services plane. ● Remote installation of application-aware services that run identically to their counterparts in dedicated appliances. |
Lower WAN expenditures | ● Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection. |
Pay as you grow: IPsec performance upgrade model | ● Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management. |
IT consolidation, space savings, and improved Total Cost of Ownership (TCO) | ● Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
Business continuity and increased resiliency | ● The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints. |
Product Accessories
Licenses
Licenses | Description |
SL-1100-4P-APP | AppX License for Cisco ISR 1100 4P Series |
C1-SL-1100-4P-APP | AppX Foundation License for Cisco ISR 1100 4P Series |
SL-1100-4P-SEC | Security License for Cisco ISR 1100 4P Series |
Security License for Cisco ISR 1100 4P Series | |
NPE Security License for Cisco ISR 1100 4P Series |
Small Form-Factor Pluggable Supported
Small Form-Factor Pluggable | ISR 1100 8P | ISR 1100 4P | Description |
Yes | Yes | 1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM. | |
Yes | Yes | GE SFP, LC connector LX/LH transceiver; with DOM. | |
Yes | Yes | GE SFP, LC connector SX transceiver; with DOM. | |
Yes | Yes | 1000BASE-ZX SFP; with DOM. | |
Yes | Yes | 100BASE-ZX SFP (80km). | |
GLC-GE-100FX | Yes | Yes | 100FX SFP on GE ports. |
Yes | Yes | 1000BASE-BX SFP, 1490NM. | |
Yes | Yes | 1000BASE-BX SFP, 1310NM. |
Compare to Similar Item
Model | C1117-4PLTEEA | |
WAN GE | N/A | N/A |
WAN GE/SFP combo | 1 | 1 |
ADSL2/VDSL2+ | 1 VA-DSL (Annex A) | 1 ADSL2/VDSL2+ (Annex A) |
LTE Advanced (CAT6) | N/A | 1 EMEAR & North America |
802.11ac | N/A | N/A |
LAN GE | 4 | 4 |
PoE | 2 | 2 |
PoE+ | 1 | 1 |
Integrated USB 3.0 AUX/console | Yes | Yes |
C1117-4PLTEEA Integrated Services Router with 4-Gigabit Ethernet (GbE) Ports, 1 ADSL2/VDSL2+ (Annex A) Router with LTE Advanced (CAT6), SMS/GPS, 1-Year Limited Hardware Warranty (C1117-4PLTEEA)
- PORT COUNT: 4-port managed Gigabit Ethernet switch (2 ports PoE capable with 1 port PoE+)
- CONNECTIVITY: LTE Advanced (CAT6) WAN, ADSL2/VDSL2+ (Annex A) WAN and WAN/SFP combo ports with integrated USB 3.0 AUX/console
- SECURITY: Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud
- PERFORMANCE: Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services
- PEACE OF MIND: 1-year limited hardware warranty with 10-day advanced replacement
- Tabletop router Grey
- Gigabit Ethernet
- Ethernet WAN
- Ethernet LAN (RJ-45) ports: 4
- USB port
- Quality of Service (QoS) support
Summary Description
Cisco C1117-4PLTEEA Integrated Services Router with 4-Gigabit Ethernet (GbE) Ports, 1 ADSL2/VDSL2+ (Annex A) Router with LTE Advanced (CAT6), SMS/GPS, 1-Year Limited Hardware Warranty (C1117-4PLTEEA), Ethernet LAN, Grey, Tabletop router
Need help with C1117-4PLTEEA?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
C1117-4PLTEEA Specification
C1117-4PLTEEA Specification | |
Description | ISR 1100 4P DSL Annex A Router w/ LTE Adv SMS/GPS EMEA & NA |
Physical Properties | |
Dimensions (H x W x D) | LTE models: H x W X D = 1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet) |
Weight with AC PS (w/o modules) | 5.5 Lbs. (2.5 kg) maximum |
AC Input Power | |
Input voltage | Universal 100 to 240 VAC |
Frequency | 50-60 Hz |
Input current | PoE not enabled: 0.82A maximum PoE enabled: 1.55A Maximum |
Surge current | 90 A peak and less than 8 Arms per half cycle |
Ports | |
Micro USB Port | One RJ-45: Separate console port |
USB port | USB 3.0 Type A host port USB devices supported: USB flash memory |
Console port | One USB 5-pin micro Type B: Console management connectivity |
10/100/1000 Gigabit Ethernet | Two GE ports allocated among RJ45 and SFP as: One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1) |
Wireless VLANs | 32 (encrypted and non-encrypted VLANs) |
Wireless specifications | 2x2 .11ac Wave 2 |
Default and maximum DRAM | 4GB |
Default and maximum flash | 4GB |
Inline PoE | 4 ports for -8P PIDs, 2 ports for -4P PIDs 802.3af-compliant PoE or 802.3at-compliant PoE+ |
Acoustic for Cisco 1100 Series ISRs | Not Applicable - Fanless design |
Approvals and compliance | Emission 47 CFR Part 15
CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
Environmental | |
Operating humidity | 5 to 85% relative humidity |
Operating temperature | 32 to 104°F (0 to 40°C) Sea Level; 32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft |
Altitude in China | 0-6560 ft (0-2000 m) |
Altitude in all other countries | 0-10,000 ft (0-3050 m) |
Transportation and Storage | |
Nonoperating temperature | -40 to 158°F (-40 to 70°C) |
Nonoperating humidity | 5 to 95% relative humidity (noncondensing) |
Nonoperating altitude | 0 to 15,000 ft (0 to 4570m) |
Resources
Frequently Asked Questions
What primary connectivity options does the Cisco C1117-4PLTEEA offer for branch offices? +
This router features integrated DSL (Annex A) capability alongside 4G LTE Advanced support. It acts as a versatile edge device, allowing businesses to utilize high-speed DSL as a primary connection while leveraging LTE for seamless failover or redundant site connectivity, ensuring continuous uptime for critical branch operations.
Does the C1117-4PLTEEA support GPS functionality for remote asset tracking? +
Yes, this model includes integrated GPS capabilities. This feature is particularly useful for deployments requiring location awareness, such as mobile installations or distributed branch environments where precise device positioning and telemetry tracking are necessary for network management and security compliance.
Which geographic regions is the C1117-4PLTEEA LTE modem optimized for? +
The C1117-4PLTEEA is specifically engineered to support LTE Advanced bands across EMEA (Europe, Middle East, and Africa) and NA (North America). This makes it an ideal solution for multinational companies seeking a standardized hardware platform for branch offices located across these key global regions.
How many integrated LAN ports are available on this specific ISR 1100 model? +
The C1117-4PLTEEA is equipped with four integrated Gigabit Ethernet LAN ports. These ports provide high-speed wired connectivity for local network devices such as printers, IP phones, and workstations, making it a compact, all-in-one routing solution for small-to-medium branch offices or remote kiosks.
Can the C1117-4PLTEEA be managed using Cisco SD-WAN software? +
Absolutely. This router belongs to the Cisco ISR 1100 series, which is fully compatible with Cisco's SD-WAN architecture. By integrating with SD-WAN, administrators can centrally manage traffic, optimize application performance across the WAN, and enhance security policies across distributed branch networks with simplified orchestration.
What type of DSL standard does the C1117-4PLTEEA support? +
This router supports DSL Annex A, which is the standard for ADSL over POTS (Plain Old Telephone Service). It is designed to work efficiently with existing copper infrastructure, providing reliable broadband connectivity in environments where fiber or cable options might be limited or unavailable.
Does the C1117-4PLTEEA require special configuration for SMS messaging? +
The device includes support for integrated SMS via the LTE interface. This functionality allows for remote monitoring and basic management via text commands, providing an out-of-band communication channel that is invaluable for troubleshooting the router when primary network paths are unstable or unreachable.
Is this router suitable for compact or space-constrained deployment scenarios? +
With its desktop-friendly, compact form factor, the ISR 1100 is specifically designed for environments where rack space is limited. It provides enterprise-grade routing performance without requiring a dedicated server room, making it the perfect choice for retail locations, branch offices, and professional services outlets.
