C1117-4P Overview
ISR 1100 4 Ports DSL Annex A/M and GE WAN Router C1117-4P
Overview
C1117-4P Overview

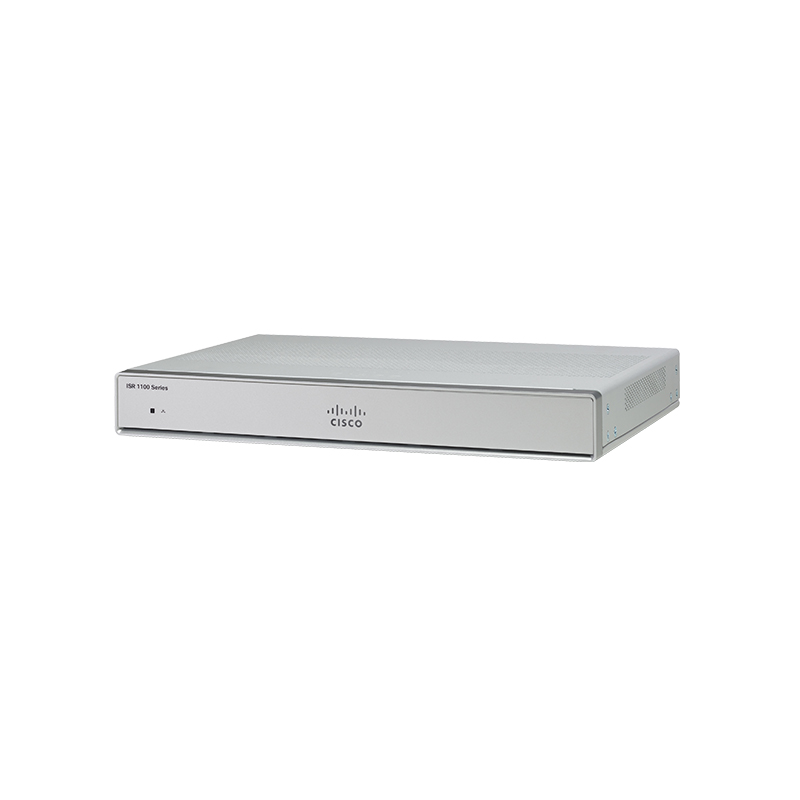

Cisco C1117-4P Integrated Services Router with 4-Gigabit Ethernet (GbE) Ports, 1 VA-DSL (Annex A/M) and GE WAN Router, 1-Year Limited Hardware Warranty (C1117-4P), Ethernet WAN, Silver
Cisco 1100 Series Integrated Services Router (ISRs) delivers Cisco IOS® XE Software, providing WAN, comprehensive security, wired and wireless access in a single, high-performance platform. Cisco 1100 Series ISR is ideal for Small and Medium enterprise branch offices. The C1117-4P is the ISR 1100 4 Ports DSL Annex A/M and GE WAN Router, delivering 1 GE/SFP Combo WAN port and 4GE LAN ports.
Quick Spec
Model | C1117-4P |
WAN GE | N/A |
WAN GE/SFP combo | 1 |
ADSL2/VDSL2+ | 1 VA-DSL (Annex A) |
LTE Advanced (CAT6) | N/A |
802.11ac | N/A |
LAN GE | 4 |
PoE | 2 |
PoE+ | 1 |
Integrated USB 3.0 AUX/console | Yes |
Dimensions (H x W x D) | 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet) |
Weight with AC PS (w/o modules) | 5.5 Lbs. (2.5 kg) maximum |
Product Details
Business need | Features/description |
Lightweight, compact size with low power consumption | ●Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors. |
High performance to run concurrent services | ●High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services. |
High availability and business continuity | ● Redundant WAN connections for failover protection and load balancing. ● Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP). |
Consistent, high application performance levels | ● The router can run multiple services simultaneously with minimal performance degradation. |
Risk mitigation with multilevel security | ● Network perimeter security with integrated application inspection firewall. ● Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption. ● High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN ● Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources. ● Enforced security policy with OpenDNS. ● Security hardware acceleration. ● Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor. ● Encrypted traffic analytics maintain integrity of encrypted flow |
Unified control of wired and wireless networks from a common console for streamlined operations | ● Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller. ● Supports Mobility Express for WLAN-enabled routers. |
Remote configuration and management to keep local IT staff lean | ● Supports separate console/auxiliary and USB ports. ● Can be configured to work with optional USB token. ● Supports TR-069. |
Performance ● Throughput ● Service reliability | ● Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P. ● A distributed multicore architecture with the industry’s first internal services plane. ● Remote installation of application-aware services that run identically to their counterparts in dedicated appliances. |
Lower WAN expenditures | ● Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection. |
Pay as you grow: IPsec performance upgrade model | ● Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management. |
IT consolidation, space savings, and improved Total Cost of Ownership (TCO) | ● Single converged branch platform integrates routing, switching, security, and performance management capabilities. |
Business continuity and increased resiliency | ● The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints. |
Product Accessories
Licenses
Licenses | Description |
SL-1100-4P-APP | AppX License for Cisco ISR 1100 4P Series |
C1-SL-1100-4P-APP | AppX Foundation License for Cisco ISR 1100 4P Series |
SL-1100-4P-SEC | Security License for Cisco ISR 1100 4P Series |
Security License for Cisco ISR 1100 4P Series | |
NPE Security License for Cisco ISR 1100 4P Series |
Small Form-Factor Pluggable Supported
Small Form-Factor Pluggable | ISR 1100 8P | ISR 1100 4P | Description |
Yes | Yes | 1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM. | |
Yes | Yes | GE SFP, LC connector LX/LH transceiver; with DOM. | |
Yes | Yes | GE SFP, LC connector SX transceiver; with DOM. | |
Yes | Yes | 1000BASE-ZX SFP; with DOM. | |
Yes | Yes | 100BASE-ZX SFP (80km). | |
GLC-GE-100FX | Yes | Yes | 100FX SFP on GE ports. |
Yes | Yes | 1000BASE-BX SFP, 1490NM. | |
Yes | Yes | 1000BASE-BX SFP, 1310NM. |
Compare to Similar Item
Model | C1117-4P | |
WAN GE | N/A | 1 |
WAN GE/SFP combo | 1 | 1 |
ADSL2/VDSL2+ | 1 VA-DSL (Annex A) | N/A |
LTE Advanced (CAT6) | N/A | N/A |
802.11ac | N/A | N/A |
LAN GE | 4 | 4 |
PoE | 2 | 2 |
PoE+ | 1 | 1 |
Integrated USB 3.0 AUX/console | Yes | Yes |
C1117-4P Integrated Services Router with 4-Gigabit Ethernet (GbE) Ports, 1 VA-DSL (Annex A/M) and GE WAN Router, 1-Year Limited Hardware Warranty (C1117-4P)
- PORT COUNT: 4-port managed Gigabit Ethernet switch (2 ports PoE capable with 1 port PoE+)
- CONNECTIVITY: VA-DSL (Annex A) WAN and WAN/SFP combo ports with integrated USB 3.0 AUX/console
- SECURITY: Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud
- PERFORMANCE: Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services
- PEACE OF MIND: 1-year limited hardware warranty with 10-day advanced replacement
- Ethernet WAN
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
- VDSL
- Web-based management
- 3DES, 802.1x RADIUS, AES, DES
Summary Description
Cisco C1117-4P Integrated Services Router with 4-Gigabit Ethernet (GbE) Ports, 1 VA-DSL (Annex A/M) and GE WAN Router, 1-Year Limited Hardware Warranty (C1117-4P), Ethernet WAN, Silver
Need help with C1117-4P?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
C1117-4P Specification
C1117-4P Specification | |
Description | ISR 1100 4 Ports DSL Annex A/M and GE WAN Router |
Physical Properties | |
Dimensions (H x W x D) | Non-LTE models: H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet) |
Weight with AC PS (w/o modules) | 5.5 Lbs. (2.5 kg) maximum |
AC Input Power | |
Input voltage | Universal 100 to 240 VAC |
Frequency | 50-60 Hz |
Input current | PoE not enabled: 0.82A maximum PoE enabled: 1.55A Maximum |
Surge current | 90 A peak and less than 8 Arms per half cycle |
Ports | |
Micro USB Port | One RJ-45: Separate console port |
USB port | USB 3.0 Type A host port USB devices supported: USB flash memory |
Console port | One USB 5-pin micro Type B: Console management connectivity |
10/100/1000 Gigabit Ethernet | Two GE ports allocated among RJ45 and SFP as: One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1) |
Wireless VLANs | 32 (encrypted and non-encrypted VLANs) |
Wireless specifications | 2x2 .11ac Wave 2 |
Default and maximum DRAM | 4GB |
Default and maximum flash | 4GB |
Inline PoE | 4 ports for -8P PIDs, 2 ports for -4P PIDs 802.3af-compliant PoE or 802.3at-compliant PoE+ |
Acoustic for Cisco 1100 Series ISRs | Not Applicable - Fanless design |
Approvals and compliance | Emission 47 CFR Part 15
CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
Environmental | |
Operating humidity | 5 to 85% relative humidity |
Operating temperature | 32 to 104°F (0 to 40°C) Sea Level; 32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft |
Altitude in China | 0-6560 ft (0-2000 m) |
Altitude in all other countries | 0-10,000 ft (0-3050 m) |
Transportation and Storage | |
Nonoperating temperature | -40 to 158°F (-40 to 70°C) |
Nonoperating humidity | 5 to 95% relative humidity (noncondensing) |
Nonoperating altitude | 0 to 15,000 ft (0 to 4570m) |
Frequently Asked Questions
What primary connectivity options does the Cisco C1117-4P provide for WAN access? +
The C1117-4P is a versatile ISR 1100 series router designed for small to medium branch offices. It features integrated VDSL2/ADSL2+ Annex A/M support for DSL connectivity, alongside a dedicated Gigabit Ethernet WAN port. This dual-capability allows businesses to deploy high-speed broadband or utilize dedicated fiber uplinks depending on the specific service provider infrastructure available at their location.
How many LAN ports are available on the C1117-4P for connecting local devices? +
This model is equipped with four integrated Gigabit Ethernet LAN ports. These ports allow for reliable, high-speed wired connections to local networking equipment such as switches, access points, or directly connected IP devices, making it an excellent all-in-one solution for edge routing in branch environments that require a compact footprint.
Is the Cisco C1117-4P suitable for SD-WAN deployments? +
Yes, the C1117-4P is fully capable of supporting Cisco SD-WAN architectures. It provides the necessary performance and software feature set to manage traffic across multiple WAN links effectively, enabling secure, optimized application delivery and centralized orchestration to meet the demands of modern cloud-integrated enterprise networks.
What is the primary use case for the C1117-4P router? +
This router is specifically engineered for branch office and small-business environments that require a secure, high-performance platform. It is ideally suited for organizations that need to consolidate routing, security, and WAN connectivity into a single, reliable device while maintaining robust connectivity to the corporate head office or cloud-based services.
Does the C1117-4P support advanced security features? +
The C1117-4P includes comprehensive security capabilities inherent to the Cisco IOS XE software suite. It supports encrypted WAN connections, robust firewall functionality, and threat defense mechanisms. These features ensure that data traversing the branch network remains protected, meeting the requirements of modern businesses that demand strong edge security.
How do I manage the C1117-4P router in my existing network infrastructure? +
Management is handled through the industry-standard Cisco IOS XE command-line interface (CLI) or via Cisco DNA Center. This allows network administrators to utilize centralized automation and configuration tools, ensuring that deployment and ongoing operational maintenance of the router are streamlined across distributed branch locations.
What are the performance expectations for the Cisco C1117-4P? +
The C1117-4P provides high-performance routing throughput optimized for business-class internet connectivity. While actual performance depends on the specific services and features enabled, such as encryption and deep packet inspection, the architecture is designed to handle multiple concurrent services without sacrificing network stability or speed in typical branch office scenarios.
Is the C1117-4P rack-mountable for professional server room installation? +
The compact form factor of the C1117-4P is designed for easy installation in various environments. It can be placed on a desk or mounted in a standard rack configuration using the appropriate rack-mount kit. This flexibility ensures it can be integrated neatly into existing small wiring closets or communications cabinets.
