Mfr.part#:	WS-X4648-RJ45-E Rating: 100% 5/5.0 5 Reviews

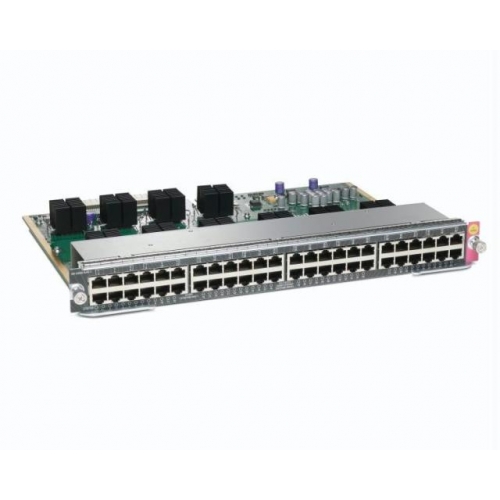

Name:	WS-X4648-RJ45-E Catalyst 4500 E-Series Linecard
Detail:	Catalyst 4500 E-Series Linecard 48-Port 10/100/1000 (RJ45) WS-X4648-RJ45-E
Availability:	In Stock
Condition:	New
Price:	$76.12

WS-X4648-RJ45-E

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

resources

reviews

overview

Overview

WS-X4648-RJ45-E Overview

Cisco WS-X4648-RJ45-E. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z. Switching capacity: 24 Gbit/s, Bandwidth: 1 Gbit/s. Mean time between failures (MTBF): 280365 h, Compatibility: Catalyst 4503-E, 4506-E, 4507R-E, 4507R+E, 4510R-E, 4510R+E. Power consumption (typical): 89 W. Certification: RoHS, Safety: UL 1950, EN 60950, CSA-C22.2, IEC 950, Electromagnetic compatibility: FCC 15J A, VCCI A, CE, EN 55022 A, EN 55024 A, CISPR 22 A, AS/NZ 3548, NEBS 3 (GR-1089-CORE,...

Cisco catalyst WS-X4648-RJ45-E line-card is designed for data only user access with 48 non-POE ports. WS-X4648-RJ45-E delivers high-performance and secures user experience with superior backward and forward compatibility to process large file transfers and network backups for campus and branch applications. This WS-X4648-RJ45-E is similar with the WS-X4648-RJ45-E=. The WS-X4648-RJ45-E= is a spare one.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	WS-X4648-RJ45-E
Line-Card Type	Cisco catalyst 4500 E-series line card
Chassis Support	4503-E/4506-E/4507R+E/4510R+E/4507R-E/4510R-E
Supervisor support	6L-E/6-E/7L-E/7-E/8-E
switching capacity	Up to 24 Gbps
ports	48 * 10/100/1000 Gigabit Ethernet ports
Max Rated Power (W)	89
Rated MTBF (Hours)	280,365
module	10/100/1000 module (RJ-45)
Cisco IOS Software	Cisco IOS Software Release 12.2(50)SG or later
Bandwidth	Bandwidth is allocated across eight 6-port groups, providing 3 Gbps per port group (2:1)
L2-4 Jumbo Frame support	up to 9216 bytes
Service provider	GE/100M aggregation for DSLAM and PON

·All power numbers shown in Table 1 are maximum values recommended for facility power and cooling capacity planning. These figures are not indicative of the actual power draw during operation. Typical power draw is about 20 percent lower than the maximum value shown.

Compare to Similar Items

Table 2 shows the comparison of WS-X4648-RJ45-E and WS-X4748-RJ45-E.

Product Code	WS-X4648-RJ45-E	WS-X4748-RJ45-E
Line-Card Type	Cisco catalyst 4500 E-series line card	Cisco catalyst 4500 E-series line card
Chassis Support	4503-E/4506-E/4507R+E/4510R+E/4507R-E/4510R-E	4503-E/4506-E/4507R+E/4510R+E/4507R-E/4510R-E
Supervisor support	6L-E/6-E/7L-E/7-E/8-E	7L-E/7-E/8-E
switching capacity	Up to 24 Gbps	Up to 48 Gbps
ports	48 * 10/100/1000 Gigabit Ethernet ports	48 * 10/100/1000 Gigabit nonblocking Ethernet ports
Max Rated Power (W)	89	75
Rated MTBF (Hours)	280,365	402,386
module	10/100/1000 module (RJ-45)	10/100/1000 module (RJ-45)

Get more information

Do you have any question about the WS-X4648-RJ45-E?

Catalyst 4500E Series 48-Port Data-only 10/100/1000 (RJ-45)

Gigabit Ethernet 10,100,1000 Mbit/s

Quality of Service (QoS) support

89 W

Summary Description

Cisco WS-X4648-RJ45-E, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, 24 Gbit/s, 1 Gbit/s, 280365 h

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco WS-X4648-RJ45-E?

Our lowest price for WS-X4648-RJ45-E is $76.12 Buy Now

Explore even more affordable prices for Networking Accessories and Cisco products.

specifications

Specification

WS-X4648-RJ45-E Specification

WS-X4648-RJ45-E Specifications
Port Information
Type	E-Series 10/100/1000/Multigigabit Line Cards
Number of Ports	48
Port Speed	10/100/1000
Port Type	RJ-45
Wire Rate	2-to-1
Feature
Standards	● Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az ● 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM
EtherChannel Technology	● Gigabit EtherChannel: All 1000 Mbps ports ● 10 Gigabit EtherChannel: All 10Gbps ports ● IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports ● Port Aggregation Protocol (PagP): Yes ● Number of ports per tuple: 8 ● EtherChannel and IEEE 802.3ad technology across line cards: Yes
Physical Dimensions	● Occupies one slot in the Cisco Catalyst 4500 Series platform ● Dimensions (H x W x D): 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm)
Environmental Conditions	● Operating temperature: 32° to 104°F (0° to 40°C) ● Storage temperature: -40° to 167°F (-40° to 75°C) ● Relative humidity: 10 to 90%, noncondensing ● Operating altitude: -60 to 3000m
Safety Conditions	Fiber optic lasers: Class 1 laser products
Safety Certifications	● UL 1950 ● EN 60950 ● CSA-C22.2 no 950 ● IEC 950 ● IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11
Electromagnetic Emissions Certifications	● FCC 15J Class A ● VCCI Class A ● CE Marking ● EN 55022 Class A ● EN 55024 Class A ● CISPR 22 Class A ● AS/NZ 3548 ● NEBS Level 3 (GR-1089-CORE, GR-63-CORE) ● ETSI ETS-300386-2 ● EN 50121-4
ROHS Compliance	ROHS5
Power and MTBF Information
Max Rated Power (W)	89
Rated MTBF (Hours)	280,365
