Mfr.part#:	WS-X4606-X2-E Rating: 100% 5/5.0 9 Reviews
Name:	WS-X4606-X2-E Catalyst 4500 E-Series Linecard
Detail:	Catalyst 4500 E-Series Linecard 6-Port 10GbE (X2)- TwinGig Converter Module - 12-port SFP WS-X4606-X2-E
Availability:	In Stock
Condition:	New
Price:	$223.63

WS-X4606-X2-E

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

WS-X4606-X2-E Overview

Cisco WS-X4606-X2-E. Product colour: Silver, Bandwidth: 24 Gbit/s, Electromagnetic compatibility: FCC 15J Class A, VCCI Class A, CE Marking, EN 55022 Class A, EN 55024 Class A, CISPR 22 Class A,.... Data transfer rate: 10 Gbit/s, Connectivity technology: Wired, Cabling technology: 10GBase-X,1GBase-X. Dimensions (WxDxH): 362 x 273 x 30 mm. Compatible operating systems: Cisco IOS

WS-X4606-X2-E is the Cisco catalyst WS-X4606-X2-E line-card. It is designed for high-speed backbone and switch-to-switch applications. Integrated 6 ports 10GB X2 or 12 ports 1 GE SFP with TwinGig Converter Module, the ports can be used interchangeably as Gigabit Ethernet and 10 Gigabit Ethernet to support phased migration from Gigabit Ethernet to 10 Gigabit Ethernet. This WS-X4606-X2-E is similar with the WS-X4606-X2-E=. The WS-X4606-X2-E= is a spare one.

Quick Specs

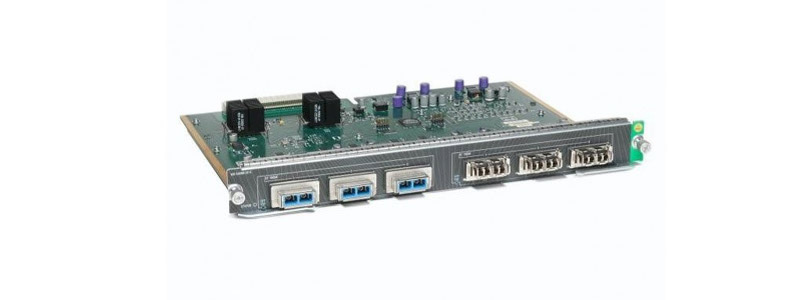

Figure 1 shows the appearance of WS-X4606-X2-E.

Table 1 shows the Quick Specs.

Product Code	WS-X4606-X2-E
Line-Card Type	Cisco Catalyst 4500 46xx E‑Series Line Cards
Number of Ports	6
Port Speed	10GBASE-X
Per-Slot Bandwidth	24 Gbps
Chassis Support	Cisco Catalyst 4503-E, 4506-E, 4507R-E, 4507R+E, 4510R-E, and 4510R+E1
Supervisor Support	Supervisor Engine 8-E, Supervisor Engine 8L-E, Supervisor Engine 7-E, Supervisor Engine 7L-E, Supervisor Engine 6-E, Supervisor Engine 6L-E
per-slot capacity	24 gigabits
Modules	·10GBASE-X (X2) and 1GBASE-X (SFP) ·Up to 6 ports 10GE X2 or 12 ports GE SFP using TwinGig Converter Module ·TwinGig modules must be used in groups of three: ports 1-3 or ports 4-6
Cisco IOS Software	Cisco IOS Software Release 12.2(40)SG or later
Enterprise and commercial	designed for high-speed backbone and switch-to-switch applications
Service provider	10GE/GE mix aggregation for DSLAM/PON/mobile data backhaul
L2-4 Jumbo Frame support	up to 9216 bytes
Max Rated Power (W)	50
Rated MTBF (Hours)	535,717
Package weight(KG)	7.1800

·All power numbers shown in Table 1 are maximum values recommended for facility power and cooling capacity planning. These figures are not indicative of the actual power draw during operation. Typical power draw is about 20 percent lower than the maximum value shown.

Get more information

Do you have any question about the WS-X4606-X2-E?

Summary Description

Cisco WS-X4606-X2-E, Silver, 24 Gbit/s, FCC 15J Class A, VCCI Class A, CE Marking, EN 55022 Class A, EN 55024 Class A, CISPR 22 Class A,..., UL 1950, EN 60950, CSA-C22.2 no 950, IEC 950, 10 Gbit/s, Wired

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco WS-X4606-X2-E?

Our lowest price for WS-X4606-X2-E is $223.63 Buy Now

Explore even more affordable prices for Networking Accessories and Cisco products.

specifications

Specification

WS-X4606-X2-E Specification

WS-X4606-X2-E Specifications
Port Information
Type	E-Series 10 Gigabit Ethernet Line Cards
Number of Ports	6
Port Speed	10GBASE-X
Port Type	X2 or SFP with TwinGig Converter Module
Wire Rate	2.5-to-1 with X2 1:1 with SFP
Feature
Standards	● Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az ● 1000BASE-X (GBIC), 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, CWDM
EtherChannel Technology	● Gigabit EtherChannel: All 1000 Mbps ports ● 10 Gigabit EtherChannel: All 10Gbps ports ● IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports ● Port Aggregation Protocol (PagP): Yes ● Number of ports per tuple: 8 ● EtherChannel and IEEE 802.3ad technology across line cards: Yes
Physical Dimensions	● Occupies one slot in the Cisco Catalyst 4500 Series platform ● Dimensions (H x W x D): 1.2 x 14.25 x 10.75 in. (3.0 x 36.2 x 27.3 cm)
Environmental Conditions	● Operating temperature: 32° to 104°F (0° to 40°C) ● Storage temperature: -40° to 167°F (-40° to 75°C) ● Relative humidity: 10 to 90%, noncondensing ● Operating altitude: -60 to 3000m
Safety Conditions	Fiber optic lasers: Class 1 laser products
Safety Certifications	● UL 1950 ● EN 60950 ● CSA-C22.2 no 950 ● IEC 950 ● IEC 60950-1, 2nd Ed. EN 60950-1, 2nd Ed. UL 60950-1, 2nd Ed. CAN/CSA-C22.2 No. 60950-1 2nd Ed.11
Electromagnetic Emissions Certifications	● FCC 15J Class A ● VCCI Class A ● CE Marking ● EN 55022 Class A ● EN 55024 Class A ● CISPR 22 Class A ● AS/NZ 3548 ● NEBS Level 3 (GR-1089-CORE, GR-63-CORE) ● ETSI ETS-300386-2 ● EN 50121-4
ROHS Compliance	ROHS5
Power and MTBF Information
Max Rated Power (W)	50
Rated MTBF (Hours)	535,717
