Mfr.part#:	WS-C3850-12X48U-E Rating: 100% 5/5.0 4 Reviews

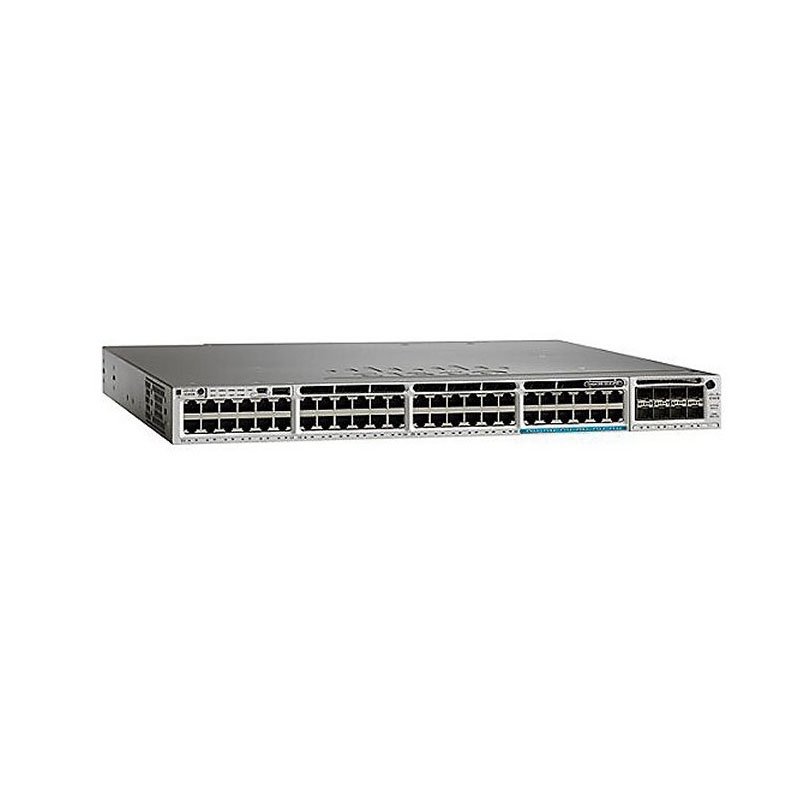

Name:	WS-C3850-12X48U-E Catalyst 3850 Switch
Detail:	Stackable 12 100M/1G/2.5G/5G/10G and 36 1 G UPoE ports, 1 network module slot, 1100 W power supply WS-C3850-12X48U-E
Availability:	In Stock
Condition:	Refurbished
GTIN:	0882658763137 0882658763137 882658763137
Price:	$1,110.42

WS-C3850-12X48U-E

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

WS-C3850-12X48U-E Overview

Cisco Catalyst WS-C3850-12X48U-E. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 60. MAC address table: 32000 entries. Networking standards: IEEE 802.11ac, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting

Stackable 12 100M/1G/2.5G/5G/10G and 36 1 G UPoE ports, 1 network module slot, 1100 W power supply

Switch to Something New

Why Upgrade to Catalyst 9300? | See the Catalyst 9300 Series

Catalyst 3850, Stackable, 60 Port, UPOE, 1100W, 1 RU, IP Services feature set

Managed SNMP v1, SNMP v2c, SNMP v3

Quality of Service (QoS) support

Basic switching RJ-45 Ethernet ports quantity: 60

MAC address table: 32000 entries

Access Control List (ACL)

Rack mounting Stackable

Power over Ethernet (PoE)

Summary Description

Cisco Catalyst WS-C3850-12X48U-E, Managed, Power over Ethernet (PoE), Rack mounting

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco WS-C3850-12X48U-E?

Our lowest price for WS-C3850-12X48U-E is $1,110.42 Buy Now

Explore even more affordable prices for Switches and Cisco products.

specifications

Specification

WS-C3850-12X48U-E Specification

WS-C3850-12X48U-E Specification
Capacity
Type	Virtual interfaces (VLANs)
Value	4000
Dimensions & Weight
Width	17.5 in
Depth	19.2 in
Height	1.8 in
Weight	17.64 lbs
Environmental Parameters
Min Operating Temperature	23 °F
Max Operating Temperature	113 °F
Humidity Range Operating	10 - 95% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
Flash Memory
Installed Size	2 GB
Header
Compatibility	PC
Manufacturer	Cisco Systems
Packaged Quantity	1
Product Line	Cisco Catalyst
Model	3850-12X48U-E
Brand	Cisco
Interface Provided
Qty	36
Type	Management (mini-USB)
Connector Type	Type B
Comments	Management
PoE Power	60 W
Miscellaneous
Compliant Standards	AS/NZS 3548 Class A, AS/NZS CISPR 22, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CNS 13438, EN 300386, EN 55022 Class A, EN 60950-1, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS 5/6, UL 60950-1, UL 60950-1 Second Edition, VCCI Class A
Authentication Method	Kerberos, RADIUS, Secure Shell (SSH), TACACS+
MTBF	202,030 hours
Height (Rack Units)	1
Color Category	Gray
Networking
Type	Switch
Remote Management Protocol	CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Compliant Standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Status Indicators	Active, PoE, Port duplex mode, Port transmission speed, Power, Status, System
Ports Qty	48
Features	802.1x authentication, Access Control List (ACL) support, ARP inspection, ARP support, Bridge protocol data unit (BPDU), Cisco StackPower technology, Cisco StackWise-480 technology, Control plane protection (CoPP), DHCP snooping, DHCP support, Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), Multiple Spanning Tree Protocol (MSTP) support, PIM snooping, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Radio resource management (RRM), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), SSH support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), Virtual Routing and Forwarding (VRF), VLAN Trunking Protocol (VTP), Weighted Tail Drop (WTD)
Routing Protocol	BGP-4, EIGRP, EIGRP for IPv6, IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MLDv2, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng
MAC Address Table Size	32000 entries
Stackable	Stackable
Subcategory	Network hubs and switches
Power Over Ethernet (PoE)	UPOE
Advanced Switching	Layer 3
Manageable	Yes
Form Factor	Desktop, Rack-mountable
Jumbo Frame Support	9198 bytes
Subtype	Gigabit Ethernet
PoE Budget	630 W
Performance
Type	Switching capacity
Value	176 Gbps
Ports
Qty	48
Type	10/100/1000 (UPOE)
Power Device
Frequency Required	50 - 60 Hz
Power Provided	1100 Watt
Installed Qty	1
Max Supported Qty	2
Nominal Voltage	AC 120/230 V
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Type	Internal power supply
RAM
Installed Size	4 GB
Service
Support Details Type	Technical support
Support Details Service Included	Consulting
Support Details Full Contract Period	90 days
Service & Support
Type	Limited lifetime warranty
Service & Support Details
Response Time	Next business day
Slot Provided
Type	Expansion slot
Total Qty	1
Free Qty	1
Software
Type	Cisco IOS IP Services
