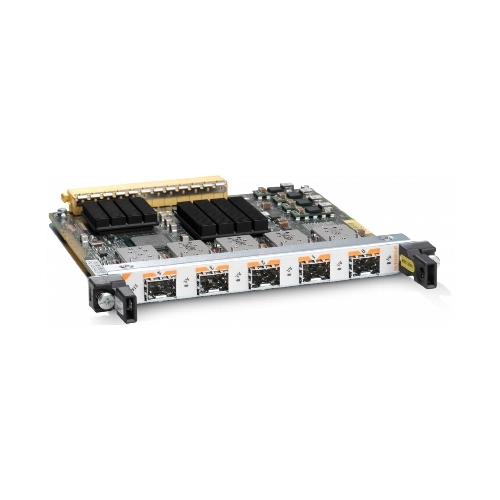

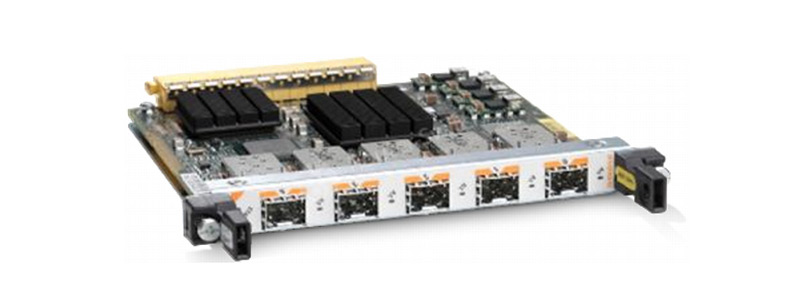

SPA-5X1GE-V2 Specification

Product compatibility

• Cisco Catalyst 6500 Series Switches (2 and 10-port GE SPAs)

• Cisco 7600 Series Router (2-, 5-, and 10-port GE SPAs)

• Cisco 12000 Series Router (2-, 5-, 8-, and 10-port GE SPAs)

• Cisco XR 12000 Series Router (2-, 5-, 8-, and 10-port GE SPAs)

• Cisco ASR 1000 Series Router (2-, 5-, 8-, and 10-port GE SPAs)

• Cisco CRS Carrier Routing System (5-, 8-, and 10-port GE SPAs)

• Cisco 10000 Series Router (2 and 5-port GE SPAs)

Port density per SPA

2*, 5, 8, or 10 Gigabit Ethernet ports

* Usable in combination of SFP and RJ-45 ports for a total of 2 Gigabit Ethernet ports

Physical interfaces

• Short wavelength (SX)

• Long reach/long haul (LX/LH)

• Extended distance (ZX) SFP

• SFP-GE-T (5-, 8-, and 10-port Gigabit Ethernet SPAs)

• Built-in RJ-45 (2-port Gigabit Ethernet SPA)

LED indicators

SPA status: Bicolor green and amber LEDs encode the SPA status as follows:

• LED off: SPA is powered off

• LED amber: SPA is powered on and initializing

• LED green: SPA is powered on and operational

In addition to the status LED, the SPAs also have a bicolor, surface-mount, right-angle LED dedicated to each port to indicate port status. The green and amber LEDs encode the port status as follows:

• LED off: Port is not enabled by software

• LED: Port is enabled by software, but there is a problem with the Ethernet link

• LED green: Port is enabled by software, and there is a valid Ethernet link

Features and functions

• Autonegotiation

• Full-duplex operation

• 802.1Q VLAN termination

• 802.1ad QinQ termination (stacked VLAN processing)

• Jumbo Frames support (9188 bytes)

• Support for command-line interface (CLI)-controlled online insertion and removal (OIR)

• 802.3x flow control

• Bridge protocol data unit (BPDU), Cisco Discovery Protocol, and VLAN Trunking Protocol (VTP) filtering

• Layer 2 Protocol (BPDU, Cisco Discovery Protocol, and VTP) Tunneling

• Layer 2 access list (MAC address-based filtering)

• Up to 8000 VLANs per SPA and subject to a limit of 4000 VLANs per port for 802.1q

• Up to 5000 MAC accounting entries per SPA (source MAC accounting on the ingress, and destination MAC accounting on the egress)

• Up to 2000 MAC address entries for destination MAC address filtering per SPA, and up to 1000 MAC address filtering entries per port

• Per-port byte and packet counters for policy drops; oversubscription drops; cyclic redundancy check (CRC) error drops; packet sizes; and unicast, multicast, and broadcast packets

• Per-VLAN byte and packet counters for policy drops; oversubscription drops; and unicast, multicast, and broadcast packets

• Per-port byte counters for good bytes and dropped bytes

Network management

Network management using:

• Host-system CLI

• Simple Network Management Protocol (SNMP)

Inventory- and asset management-related MIBs:

• Entity-MIB (RFC 2737)

• Cisco-entity-asset-MIB

Fault management:

• Cisco-entity-field-replaceable unit (FRU)-control-MIB

• Cisco-entity-alarm-MIB

• Cisco-entity-sensor-MIB

Physical interface management:

• IF-MIB

• Etherlike-MIB (RFC 2665)

Other MIBs:

• Remote Monitoring (RMON)-MIB (RFC 1757)

• Cisco-class-based-QoS-MIB

• MPLS-related MIBs

• Ethernet MIB/RMON

Reliability and availability

• OIR of the SPA within the SIP and the optics within the SPA

• Field-replaceable SFP optical modules

Physical specifications

Weight: 0.75 lb (0.34 kg)

Height: 0.8 in. (2.03 cm) (single height)

Width: 6.75 in. (17.15 cm)

Depth: 7.28 in. (18.49 cm)

Power

5-port Gigabit Ethernet SPA: 18.1W

Environmental specifications

• Storage temperature: -38 to 150°F (-40 to 70°C)

• Operating temperature, nominal: 32 to 104°F (0 to 40°C)

• Operating temperature, short term: 32 to 131°F (0 to 55°C)

• Storage relative humidity: 5 to 95% relative humidity

• Operating humidity, nominal: 5 to 85% relative humidity

• Operating humidity, short term: 5 to 90% relative humidity

• Operating altitude: -60 to 4000m

Compliance and agency approvals

Safety

• UL 60950-1

• CSA C22 No. 60950-1

• EN 60950-1

• IEC 60950-1

• AS/NZS 60950

• EN 60825-1

• EN 60825-2

• 21 CRF 1040

EMC

• CFR 47

• FCC Part 15-Class A

• ICES 003-Class A

• CISPR 22 Class A

• EN 55022 Class A

• EN 300386 Class A

• AS/NZS Class A

• VCCI-Class B

• EN 50082-1

• EN 55024

• IEC/EN61000-4-2 Electrostatic Discharge Immunity (8-kV contact, 15-kV air)

• IEC/EN61000-4-3 Radiated Immunity (10 V/m)

• IEC/EN61000-4-4 Electrical Fast Transient Immunity (2-kV power, 1-kV signal)

• IEC/EN61000-4-5 Surge AC Port (4-kV CM, 2-kV DM)

• IEC/EN61000-4-5 Surge Signal Port (1-kV indoor, 2-kV outdoor)

• IEC/EN61000-4-5 Surge DC Port (1 kV)

• IEC/EN61000-4-6 Immunity to Conducted Disturbances (10 Vrms)

• IEC/EN61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m)

• IEC/EN61000-4-11 Voltage Dips, Short Interruptions, and Voltage Variations

Telecom

• IEEE 802.3z

Industry Standards

The Cisco Gigabit Ethernet SPAs are designed to meet the following requirements (some qualifications are currently in progress):

• SR-3580 Network Equipment Building Standards (NEBS): criteria levels (Level 3 compliant)

• GR-63-CORE-NEBS: Physical protection

• GR-1089-CORE-NEBS EMC and safety
