| Mfr.part#: |
ISR4451-X-V/K9 |
|
| Name: | ISR4451-X-V/K9 - Cisco Router 4000 Series | |
| Detail: |
Cisco ISR 4451 UC Bundle. PVDM4-64. UC Lic.CUBE25 ISR4451-X-V/K9
|
|
| Availability: | In Stock | |
| Condition: | New | |
| Price: | $15,081.00 | |
ISR4451-X-V/K9
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
Payment:
-
Pay by Visa. -
Pay with your Discover Card. -
Pay with your America Express. -
Pay with your JCB. -
Pay with your Wire Transfer.
-
Genuine Guarantee
-
Price Protection
-
Bulk Order Rebate
-
30 Day Return Policy
overview
specifications
reviews
Overview
ISR4451-X-V/K9 Overview
Cisco 4451 Integrated Services Router, named as ISR4451-X, which supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps to 2Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router. The Cisco ISR4451-X-V/K9 is the 4451 Voice(V) Bundle.
Quick Spec

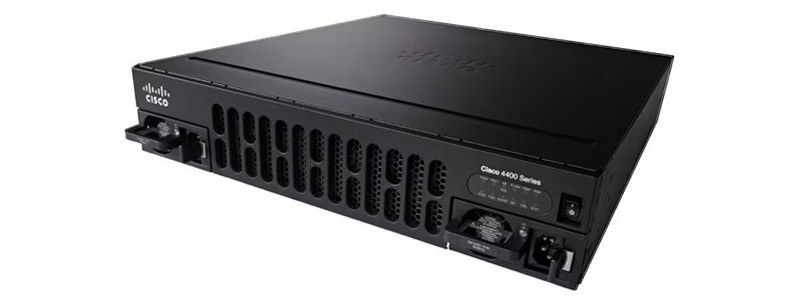

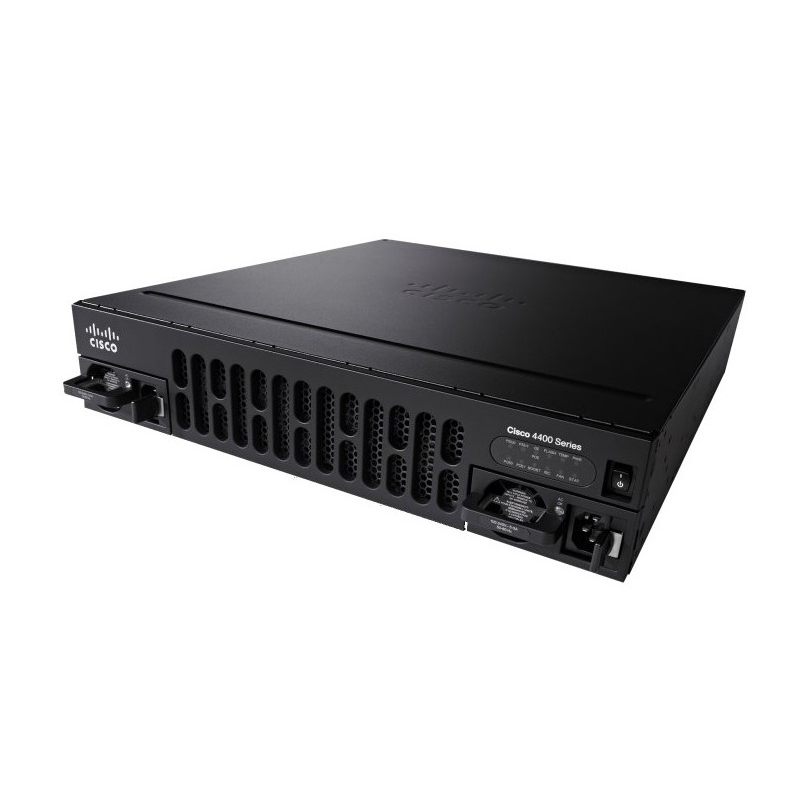

Figure 1 shows the appearance of ISR4451-X-V/K9.
Table 1 shows the quick spec.
Product Number | ISR4451-X-V/K9 |
Product Description | Cisco ISR 4451 UC Bundle. PVDM4-64. UC Lic. CUBE25 |
Aggregate Throughput | 1 Gbps to 2Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 |
RJ-45-based ports | 4 |
SFP-based ports | 4 |
NIM slots | 3 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default flash memory | 8 GB |
Maximum flash memory | 32 GB |
Product Details
Figure 2 shows the LEDs on the front panel of the Cisco ISR4451-X/K9 for reference. ISR4451-X-V/K9 is similar with it.

Note:
â‘ | AC power supply unit (PSU0) | â‘£ | Router power On/Off switch |
② | Router fan tray | ⑤ | LEDs |
â‘¢ | AC power supply unit (PSU1) | Â | |
·Router fan tray is hidden behind removable bezel.
·LEDs include 12 indicators.
Table 2 shows the LED descriptions.
LEDs | Represents | Color | Description |
PSU | Power Supply Unit (P0 and P1) Status | Green | PSU is on and is providing power. |
Amber | PSU is on but with errors or in a failure condition. | ||
Off | Power supply is turned off. | ||
GE POE | Internal PoE Daughter Card Status | Green | PSU is installed and providing power |
Amber | PSU is installed but in a failure condition. | ||
Off | PSU is off. | ||
FLASH | System Flash Status | Blinking Green | Compact flash/eUSB flash is present and currently being accessed. |
TEMP | Temperature Status | Solid green | All temperature sensors in the system are within acceptable range. |
Amber | One or more temperature sensors in the system are outside the acceptable range. | ||
Off | Temperature is not being monitored. | ||
PWR | System Power | Green | System power is on and functioning correctly. |
Green blinking | System power is in the process of shutting down. | ||
Amber | System power is up, but low level initialization failed. | ||
Amber blinking | System power is up, but the system failed to come out of reset. | ||
Off | System power is off. | ||
POE BOOST | Power Over Ethernet Boost Mode | Green | Two PoE power supplies are installed and operating in boost mode. |
Off | This can mean one of the following: ·No PoE PSU installed. ·One PoE PSU installed. ·Two PoE PSUs installed and operating in redundant mode. | ||
ISC | ISC Slot Status | Green | PVDM4 is present and enabled. |
Amber | Initialized with error. | ||
Off | Not present. | ||
FAN | Fan Status | Green | All fans are operating. |
Amber | One fan has stopped working. | ||
Blinking Amber | Two or more fans have stopped working, or the fan tray has been removed. | ||
Off | Fans are not being monitored. | ||
STAT | System Status | Solid green | System operating normally. |
Blinking amber | BIOS/Rommon is booting. | ||
Amber | BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software. | ||
Off | System is not out of reset or BIOS image is not loadable. |
Figure 3 shows the back panel of Cisco ISR4451-X-V/K9.

Note:
①| USB Type A port | ⑤ | Auxiliary port |
â‘¡ | GE management port | â‘¥ | GE Ports |
③ | USB Type B mini port | ⑦ | NIM Slots |
④ | Console port | ⑧ | SM-X Slot |
·The NIMs support 2 single-wide or 1 double-wide.
·The GE Ports include 4 RJ45 ports and 4 SFP ports.
The Modules, Cards, Licenses & Accessories
Table 3 shows some recommended modules, cards, licenses and several cables.
Items | Models | Descriptions |
Console and Auxillary Cables | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M | |
CAB-ETH-S-RJ45 | Cisco Router Cable CAB-ETH-S-RJ45 | |
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | ||
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | ||
Licenses | Cisco ISR 4431/4451 AppX license L-SL-44-APP-K9= with WAAS/vWAAS 1300/2500 conns RTU | |
Network Interface Modules | NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
Cisco Multiflex Trunk Voice and WAN network interface module | ||
NIM-4E/M | Analog voice network interface card (ear and mouth) | |
Cisco Analog voice network interface card NIM-2FXS | ||
NIM-2FXS/4FXO | Cisco Analog voice network interface card NIM-2FXS/4FXO | |
NIM-8MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
SFPs for On-Board GE Ports | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | ||
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
 Compare to Similar Items
Table 4Â shows the comparison between ISR4451-X-V/K9 and ISR4351-V/K9.
Product Number | ISR4451-X-V/K9 | |
Product Description | Cisco ISR 4451 UC Bundle. PVDM4-64. UC Lic. CUBE25 | Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle) |
Aggregate Throughput | 1 Gbps to 2Gbps | 200 Mbps to 400 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 | 3 |
RJ-45-based ports | 4 | 3 |
SFP-based ports | 4 | 3 |
NIM slots | 3 | 3 |
Onboard ISC slot | 1 | 1 |
Get more information
Do you have any question about the ISR4451-X-V/K9?
Contact us now via Live Chat or support@buyrouterswitch.com.
Specification
ISR4451-X-V/K9 Specification
Cisco ISR4451-X-V/K9 Specification | |
Product Number | ISR4451-X-V/K9 |
Product Description | Cisco ISR 4451 UC Bundle. PVDM4-64. UC Lic. CUBE25 |
Aggregate Throughput | 1 Gbps to 2Gbps |
Total onboard WAN or LAN 10/100/1000 ports | 4 |
RJ-45-based ports | 4 |
SFP-based ports | 4 |
Enhanced service-module slots | 2 |
Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
NIM slots | 3 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | NA |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
Default memory DDR3 ECC DRAM (data plane) | 2 GB |
Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
Default flash memory | 8 GB |
Maximum flash memory | 32 GB |
External USB 2.0 slots (type A) | 2 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | Internal: AC, DC and PoE |
Redundant power supply | Internal: AC, DC and PoE |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
AC input surge current | <50 A |
Typical power (no modules) (watts) | 158 |
Maximum power with AC power supply (watts) | 450 (no PoE) |
Maximum power with PoE power supply (platform only) (watts) | 1000 with PoE redundant 1450 with PoE boost no redundancy |
Maximum endpoint PoE power available from PoE power supply (watts) | 500 W with optional redundancy |
Maximum endpoint PoE power capacity with PoE boost (watts) | 950 W no redundancy |
