Mfr.part#:	ISR4351-VSEC/K9 Rating: 100% 5/5.0 5 Reviews
Name:	ISR4351-VSEC/K9 - Cisco Router 4000 Series
Detail:	Cisco ISR 4351 Bundle with UC & Sec Lic. PVDM4-64. CUBE-25 ISR4351-VSEC/K9
Availability:	In Stock
Condition:	New
Price:	$10,736.00

ISR4351-VSEC/K9

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

ISR4351-VSEC/K9 Overview

Cisco 4351 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 200 Mbps to 400 Mbps aggregate throughput. ISR4351-VSEC/K9 is the Cisco ISR 4351 router bundled with UC & Sec Lic, PVDM4-64 and CUBE-25

Quick Specs

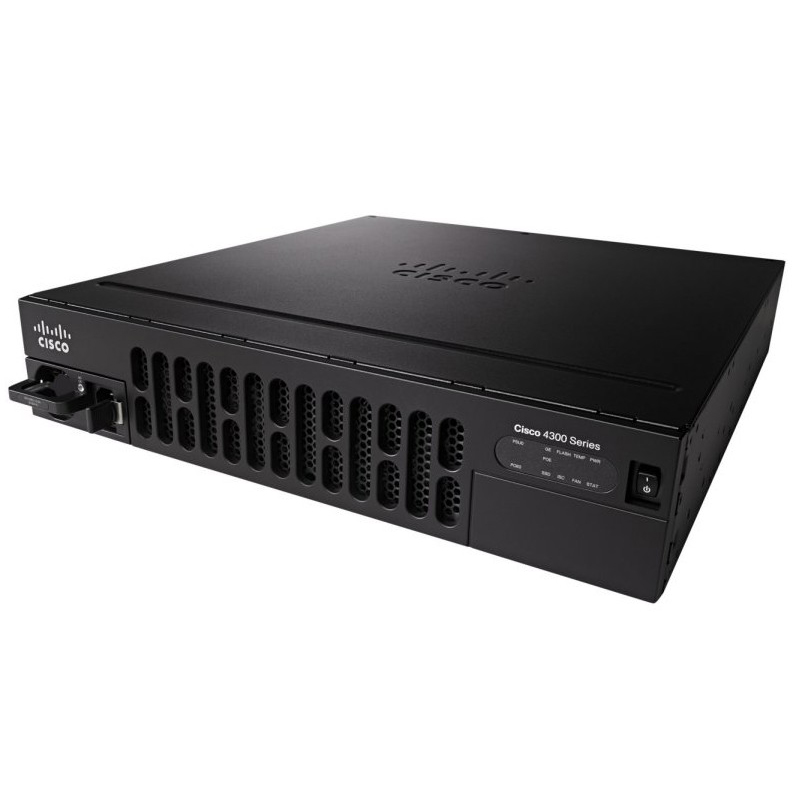

Figure 1 shows the appearance of Cisco ISR4351/K9 for reference. ISR4351-VSEC/K9 is similar with it.

Cisco ISR4351/K9

Table 1 shows the Quick Specs.

Product Code	ISR4351-VSEC/K9
Aggregate Throughput	200 Mbps to 400 Mbps
Total onboard WAN or LAN 10/100/1000 ports	3
RJ-45-based ports	3
SFP-based ports	3
Enhanced service-module (SM-X) slot	2
NIM (Network Interface Modules) slots	3
Onboard ISC slot	1
Memory	4 GB (default) / 16 GB (maximum)
Flash Memory	4 GB (default) / 16 GB (maximum)
Power-supply options	Internal: AC, DC (roadmap), and PoE
Rack height	2 RU
Dimensions (H x W x D)	43.9 x 438.15 x 507.2 mm

Product Details

Figure 2 shows the front panel of Cisco ISR4351/K9 for reference. ISR4351-VSEC/K9 is similar with it..

Cisco ISR4351/K9 Front Panel

Note:

①	Power supply unit	③	Router power On/Off switch
②	Router fan tray	④	LEDs

·The router fan tray is hidden behind the removable bezel.

·LEDs include ten indicators.

Table 2. Voice Security Bundle Features Table.

Authentication and Encryption Features	• Media encryption of voice RTP streams using SRTP • Exchange of RTP Control Protocol (RTCP) information using secure RTCP • SRTP to RTP fallback for calls between secure and insecure endpoints • Secure calls supported in Cisco Unified Survivable Remote Site Telephony (SRST) mode during WAN failover • Compressed RTP (CRTP) supported with media encrypted calls using SRTP
Authentication and Encryption Algorithm	• Supports AES-128 encryption algorithm • Supports the HMAC secure hash authentication algorithm (SHA 1)
Signaling Authentication and Encryption Features	• Gateway to Cisco Unified Communications Manager signaling and encryption uses IPSec for Media Gateway Control Protocol (MGCP), H.323 and SIP gateways • IP phone to Cisco Unified Survivable Remote Site Telephony router signaling and encryption uses TLS (Transport Layer Security)
Protocol Support	• MGCP 0.1 (supports MGCP gateways with Cisco Unified Communications Manager) • H.323 (supported on H.323 gateways and CUBE; Cisco Unified Communications Manager interoperability is optional) • Session Initiation Protocol (SIP) • SCCP (Cisco Unified IP Phone) in SRST mode
Module Support	• Any module that has PVDM2, PVDM3 and/or built-in DSP
Codec Support	• G.711, G.729A, and G.729

Figure 3 shows the back panel of Cisco ISR4351/K9 for reference. ISR4351-VSEC/K9 is similar with it..

Cisco ISR4351/K9 Back Panel

Note:

①	USB Type A port	⑦	SFP port (GE 0/0/0)
②	GE management port	⑧	RJ-45 port (GE/0/0/2)
③	USB Type B mini port	⑨	NIM slots
④	Auxiliary port	⑩	Ground connection
⑤	Console port	⑪	Enhanced Service Module (SM-X) slot
⑥	RJ-45 port (GE 0/0/1)

·The NIMs support 2 single-wide or 1 double-wide.

The Modules, Cards, Licenses & Accessories

Table 3 shows some recommended modules, cards, licenses and several cables.

Items	Models	Descriptions
Console and Auxillary Cables	CAB-AUX-RJ45	Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M
	CAB-ETH-S-RJ45	Cisco Router Cable CAB-ETH-S-RJ45
	CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
	CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
Licenses	L-SL-4350-APP-K9=	Cisco AppX license L-SL-4350-APP-K9= with 1300 conns/ISRWAAS or vWAAS for ISR4351
Network Interface Modules	NIM-1MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
	NIM-2CE1T1-PRI	Cisco Multiflex Trunk Voice and WAN network interface module
	NIM-4E/M	Analog voice network interface card (ear and mouth)
	NIM-2FXS	Cisco Analog voice network interface card NIM-2FXS
	NIM-2FXS/4FXO	Cisco Analog voice network interface card NIM-2FXS/4FXO
	NIM-8MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
SFPs for On-Board GE Ports	GLC-SX-MMD	Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
	GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
	GLC-ZX-SMD	Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 4 shows the comparison chart.

Models	ISR4351-VSEC/K9	ISR4351/K9
Description	Cisco ISR 4351 Bundle with UC & Sec Lic. PVDM4-64. CUBE-25	Cisco ISR 4351 (3GE,3NIM,2SM,4G FLASH,4G DRAM,IP Base)
Aggregate Throughput	200 Mbps to 400 Mbps	200 Mbps to 400 Mbps
Total onboard WAN or LAN 10/100/1000 ports	3	3
RJ-45-based ports	3	3
SFP-based ports	3	3
Enhanced service-module slots	2	2
NIM slots	3	3
Onboard ISC slot	1	1
Rack height	2	2

Get more information

Do you have any question about the Cisco ISR4351-VSEC/K9?

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco ISR4351-VSEC/K9?

Our lowest price for ISR4351-VSEC/K9 is $10,736.00 Buy Now

Explore even more affordable prices for Routers and Cisco products.

specifications

Specification

ISR4351-VSEC/K9 Specification

ISR4351-VSEC/K9 Specification
Description	Cisco ISR 4351 Bundle with UC & Sec Lic. PVDM4-64. CUBE-25
Aggregate Throughput	200 Mbps to 400 Mbps
Total onboard WAN or LAN 10/100/1000 ports	3
RJ-45-based ports	3
SFP-based ports	3
Enhanced service-module slots	2
Doublewide service-module slots	1 (assumes no singlewide SM-X modules installed)
NIM slots	3
OIR (all I/O modules)	Yes
Onboard ISC slot	1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	16 GB
Default memory DDR3 ECC DRAM (data plane)	NA
Maximum memory DDR3 ECC DRAM (data plane)	NA
Default memory DDR3 ECC DRAM (control/services plane)	NA
Maximum memory DDR3 ECC DRAM (control/services plane)	NA
Default flash memory	4 GB
Maximum flash memory	16 GB
External USB 2.0 slots (type A)	2
USB console port -type B mini (up to 115.2 kbps)	1
Serial console port - RJ45 (up to 115.2 kbps)	1
Serial auxiliary port - RJ45 (up to 115.2 kbps)	1
Power-supply options	Internal: AC, DC, and PoE
Redundant power supply	N/A
AC input voltage	100 to 240 VAC autoranging
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	7.1 to 3.0A
AC input surge current	60 A peak and less than 12 Arms per half cycle
Typical power (no modules) (watts)	48
Maximum power with AC power supply (watts)	430
Maximum power with PoE power supply (platform only) (watts)	990
Maximum endpoint PoE power available from PoE power supply (watts)	500
