Mfr.part#:	IE-4000-8GT8GP4G-E Rating: 100% 5/5.0 9 Reviews
Name:	IE-4000-8GT8GP4G-E - Cisco ONE Industrial Ethernet (IE) 4000 Series Platform
Detail:	IE 4000 8 x RJ45 10/100/1000 with 8 x 1G PoE, 4 x 1G Combo IE-4000-8GT8GP4G-E
Availability:	In Stock
Condition:	Refurbished
GTIN:	0882658730740 0882658730740 882658730740
Price:	$2,081.39

IE-4000-8GT8GP4G-E

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

resources

reviews

overview

Overview

IE-4000-8GT8GP4G-E Overview

Cisco IE-4000-8GT8GP4G-E. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. MAC address table: 16000 entries. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE)

IE-4000-8GT8GP4G-E is an IE4000 series switch providing 8 x RJ45 10/100/1000 with 8 x 1G PoE, 4 x 1G Combo, and LAN Base. The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including manufacturing, energy, transportation, smart cities. The IE4000 has built-in SW image verification to ensure authenticity of the Cisco Software. With improved overall performance, greater bandwidth, advanced security features, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.

Quick Spec

Table 1 shows the quick spec.

Model	IE-4000-8GT8GP4G-E
Total Ports	20
GE combo uplinks (4G)	4 GE combo uplink ports
RJ-45 copper ports (T)	8 GE
PoE/PoE+ ports (P, GP), Maximum PoE power budget	8GE, 240W
Default software	LAN Base feature set
Dimensions (H x W x D)	6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
Weight	6.35 pounds (2.88 kg)

Product Details

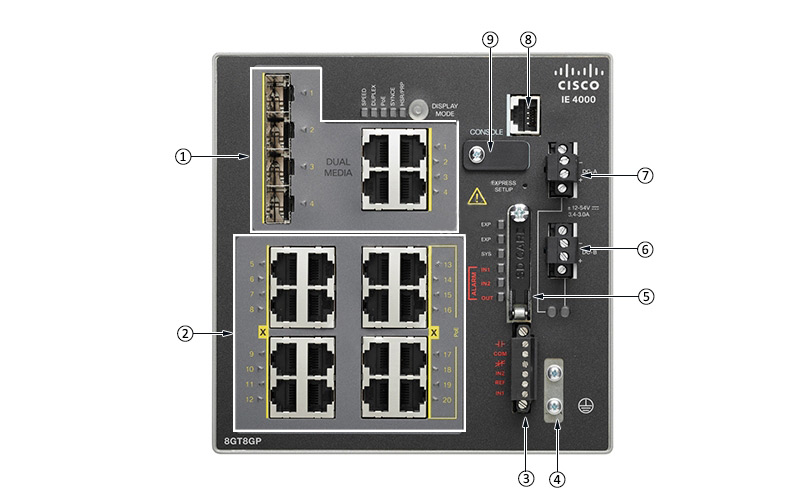

Figure 1 shows the front view of IE4000 8GT8GP switches.

IE 4000 8GT8GP Front View

Note:

①	4 GE combo uplink ports
②	8GE RJ-45 copper ports + 8GE PoE Ports
③	Alarm connector
④	Protective ground connection
⑤	Flash memory card slot
⑥	Power connector DC-B
⑦	Power connector DC-A
⑧	RJ-45 console port
⑨	USB mini-Type B (console) port (Use a screwdriver to remove the port cover and access the port.)

Figure 2 shows the back view of IE4000 switches.

IE 4000 Rear Panel

Supported Products

Table 2 shows the supported modules, cards, licenses and accessories.

Model	Description
L-IE4000-RTU=	Electronic IP SERVICES License for IE4000 Switches
C1F1PIE4K5K1K9	Cisco ONE Foundation Perpetual - IE 4000/5000
C1A1PIE40001K9	Cisco ONE Advanced Perpetual - IE 4000
GLC-SX-MM-RGD	Cisco GLC-SX-MM-RGD 1000Mbps Multi-Mode Rugged SFP
GLC-BX40-U-I	1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1550-nm RX wavelength, single LC/PC connector
GLC-TE	1000BASE-T SFP transceiver module for Category 5 copper wire
GLC-ZX-SM	1000BASE-ZX SFP
GLC-BX-U	1000BASE-BX SFP, 1310NM
SFP-GE-L	1000BASE-LX/LH SFP (DOM)
GLC-ZX-SMD	Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM
GLC-SX-MMD	Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
GLC-FE-100EX	100BASE-EX SFP (40km)
GLC-FE-100BX-U	100BASE-BX10-U SFP

Compare to Similar Items

Table 3 shows the comparison.

Model	IE-4000-8GS4G-E	IE-4000-8GT8GP4G-E
Total Ports	20	20
GE combo uplinks (4G)	4 GE combo uplink ports	4 GE combo uplink ports
RJ-45 copper ports (T)	N/A	8 GE
SFP fiber ports (S)	8 GE	N/A
PoE/PoE+ ports (P, GP), Maximum PoE power budget	N/A	8GE, 240W
Default software	LAN Base feature set	LAN Base feature set

Ordering Guide

[PDF] Cisco Industrial Ethernet Switches Ordering Guide

[PDF] Simple Cisco Industrial Ethernet Switches (IE 4000, IE 2000 included) Selection Guides

Get More Information

Do you have any question about the IE-4000-8GT8GP4G-E?

IE-4000-8GT8GP4G-E - 4x GE Combo Uplinks, 8x GE RJ-45, 8x GE PoE/PoE+

Managed L2

Quality of Service (QoS) support

Basic switching RJ-45 Ethernet ports quantity: 12

MAC address table: 16000 entries

Access Control List (ACL)

Power over Ethernet (PoE)

Summary Description

Cisco IE-4000-8GT8GP4G-E, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco IE-4000-8GT8GP4G-E?

Our lowest price for IE-4000-8GT8GP4G-E is $2,081.39 Buy Now

Explore even more affordable prices for Switches and Cisco products.

specifications

Specification

IE-4000-8GT8GP4G-E Specification

IE-4000-8GT8GP4G-E Specification
Physical Specification
Total Ports	20
GE combo uplinks (4G)	4 GE combo uplink ports (Combo ports provide one copper and one fiber physical port and only one can be activated at a time.)
RJ-45 copper ports (T)	8 GE
PoE/PoE+ ports (P, GP), Maximum PoE power budget	8GE, 240W
Default software	LAN Base feature set (Can be upgraded to IP Services at a fee.)
Hardware	● 1GB DRAM ● 128-MB onboard flash memory ● 1-GB removable SD flash memory card ● Mini-USB connector ● RJ-45 connector
Alarm	Alarm I/O: two alarm inputs to detect dry contact open or closed, one alarm output relay
Power Input	● Redundant DC input voltage with operating range: nominal 9.6 to 60VDC ● Maximum DC input current: 4.3A
Dimensions (H x W x D)	6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm)
Weight	6.35 pounds (2.88 kg)
Switch performance and scalability
Forwarding rate	Line rate for all ports and all packet sizes
Number of queues	4 egress
Unicast MAC addresses	16,000
IGMP multicast groups	1,000
Number of VLANs	1,000
IPv4 MAC security ACEs	1,000 with default TCAM Template
NAT translation	Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
