| Name: |
IE-2000-8TC-G-E - Industrial Ethernet 2000 Series |
|
| Mfr. Part #: |
IE-2000-8TC-G-E
|
|
| Condition: | Refurbished | |
| Availability: | In Stock | |
| Brand: | Cisco | |
| Price: | $577.50 | |
IE-2000-8TC-G-E
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
-
Genuine Guarantee
-
Price Protection
-
Bulk Order Rebate
-
30 Day Return Policy
overview
specifications
reviews
IE-2000-8TC-G-E Overview
IE2000 with 8FE Copper ports and 2GE Combo (Lan Base) - 1588 IE-2000-8TC-G-E
Overview
Cisco IE-2000-8TC-G-E, Managed, Fast Ethernet (10/100), Full duplex
IE-2000-8TC-G-E is the IE2000 series 8 10/100, 2 T/SFP, and LAN Base switch. The Cisco IE 2000 Series are designed for low cost, low ports, and small sizes. They offer:
1. Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor
2. Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink
3. Dual-input DC power supply, alarm relays, DIN rail mount
4. Industrial Power over Ethernet (PoE) solution
5. Conformal coating available
6. Swappable SD flash card and mini-USB connector
7. Industrial environmental compliance and certifications
8. Industrial partner applications: Ethernet/IP and PROFINET
Quick Spec
Part Number | IE-2000-8TC-G-E |
Total Ports | 10 |
RJ45 Ports | 8 FE |
Combo Ports | 2 GE |
Manufacturing license | LAN Base |
Type of possible upgrade | 1, 2, 4 |
“Type of possible upgrade” legend:
1: LAN Base to IP Lite Cisco IOS Software Upgrade
2: Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade
3: LAN Lite to LAN Base Cisco IOS Software Upgrade
4: LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade
Product Details

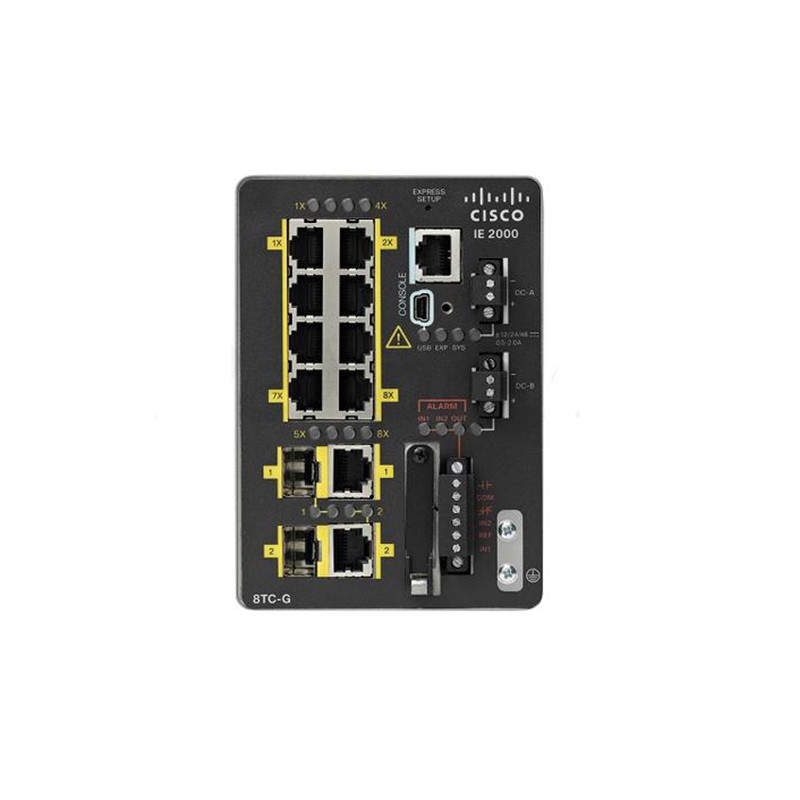

Figure 1 shows the front view of IE2000 8TC-G switches.
Note:
① | 8 10/100 |
② | 2 T/SFP |
③ | SD Flash |
④ | 2 Dry-contact alarm inputs, and 1 alarm relay output |
⑤ | Dual DC inputs |
⑥ | Console port RJ45 and Mini USB |
Supported Products
Model | Description |
1GB SD Memory Card | |
Cisco GLC-SX-MM-RGD 1000Mbps Multi-Mode Rugged SFP | |
1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1550-nm RX wavelength, single LC/PC connector | |
1000BASE-T SFP transceiver module for Category 5 copper wire | |
1000BASE-ZX SFP | |
1000BASE-BX SFP, 1310NM | |
1000BASE-LX/LH SFP (DOM) | |
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM | |
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
IE2000 LAN Base or Enhanced LAN Base to IPLite e-license | |
STK-RACK-DINRAIL= | 19 in. DIN Rail mount kit |
Compare to Similar Items
Part Number | IE-2000-8TC-G-E | |
Total Ports | 10 | 10 |
RJ45 ports | 8 FE | 8 FE |
Combo Ports | 2 GE | 2 GE |
Manufacturing license | LAN Lite | LAN Base |
Type of possible upgrade | 3 | 1, 2, 4 |
“Type of possible upgrade” legend:
1: LAN Base to IP Lite Cisco IOS Software Upgrade
2: Enhanced LAN Base to IP Lite Cisco IOS Software Upgrade
3: LAN Lite to LAN Base Cisco IOS Software Upgrade
4: LAN Base to Enhanced LAN Base Cisco IOS Software Upgrade and License Upgrade
Ordering Guide
8x RJ45 Ports, 2x 2GE, mini-USB, RS-232, EtherNet/IP, PROFINET, LAN Base, IEEE 1588
- Managed Web-based management SNMPv3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 8000 entries Switching capacity: 7.6 Gbit/s
- Access Control List (ACL)
Summary Description
Cisco IE-2000-8TC-G-E, Managed, Fast Ethernet (10/100), Full duplex
Need help with IE-2000-8TC-G-E?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
IE-2000-8TC-G-E Specification
IE-2000-8TC-G-E Specification | |
Physical Specification | |
Total Ports | 10 |
RJ45 Ports | 8 FE |
Combo Ports | 2 GE |
Manufacturing license | LAN Base |
IEEE 1588 | Yes |
L2NAT | Upgradable to L2NAT via Enhanced Lan Base or IP Lite license |
Power consumption | 8-port downlink models: 12.5-20 W |
Hardware | ● 256 MB DRAM with ECC memory ● IEEE 1588v2 FPGA ● 64 MB on-board flash memory ● 1GB removable SD flash memory card (optional) ● Mini-USB connector |
Alarm | ● Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
Connectors and cabling | ● 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
IE2000 Software Features | |
LAN Lite license | Baseline features |
Layer 2 switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2) |
Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session |
Multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
Management | Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog |
Industrial Ethernet | EtherNet/IP, Profinet v2 |
LAN Base license | Additional features |
Layer 2 switching | VTPv3, EtherChannel, Voice VLAN, Flexlink |
Security | IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL) |
Quality of service | IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS |
Management | Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM) |
Industrial Ethernet | IEEE 1588 PTPv2 |
IPv4 routing | IPv4 static routing |
IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
Enhanced LAN Base | Additional features |
Industrial management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
IP Lite license | Additional features |
IPv4 routing | RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode. |
IPv6 Routing | IPv6 Static routing, OSPFv3 |
Security | FIPS 140-2 |
Embedded Event Manager | EEM feature enabled with IP Lite license |
DNA Essentials | Additional features |
Cisco DNA Center | Discovery, topology, inventory, software image management |
Visibility | DNA assurance, Device 360 |
Day-zero network bring-up automation | Cisco Network Plug-and-Play application |
