Mfr.part#:	J9783A Rating: 100% 5/5.0 5 Reviews
Name:	Aruba J9783A - Aruba 2530 Switch
Detail:	Aruba 2530 8 Switch J9783A
Availability:	In Stock
Condition:	Refurbished
GTIN:	0886112459963 0886112459963 886112459963 0886112459970 886112459970 8861124599182 4053162364981 0886112459925 886112459925 0886112459918 886112459918 5054533512078 5054484512189 0886112459895 886112459895 0886112459932 886112459932 5054484512073 0132017935379 132017935379 5054533512184 0190017083414 190017083414
Price:	$201.98

J9783A

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

resources

reviews

overview

Overview

J9783A Overview

Aruba 2530 8. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U

Aruba 2530 Series Fast Ethernet devices are fully managed Layer 2 edge switches delivering cost effective, reliable, and secure connectivity for business networks. This J9783A has 8 x 10/100 ports. Additionally the switch has two 10/100/1000 ports dual personality together with two Gigabit SFP ports. Designed for entry level to midsize enterprise networks, these switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 host support.

Quick Spec

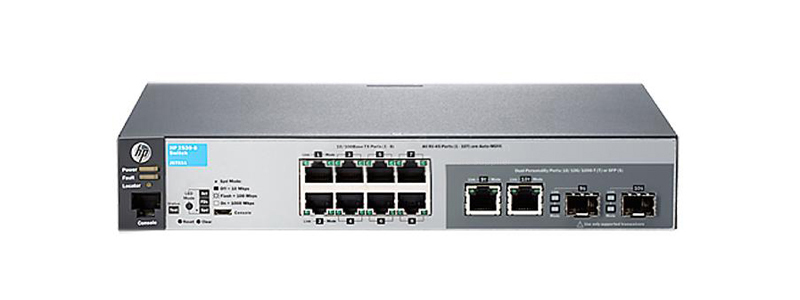

Figure 1 shows the appearance of Aruba J9783A.

Table 1 shows the quick spec.

Product Code	J9783A
Type	Aruba 2530-8 Switch
Ports	· 8 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Media Type: Auto-MDIX; Duplex: half or full · 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports · 1 dual-personality (RJ-45 or USB micro-B) serial console port.
Throughput	up to 4.1 million pps (64-byte packets)
Switching capacity	5.6 Gb/s
Dimensions (W x D x H)	25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height)
Weight	0.82 kg (1.8 lb)

Product Details

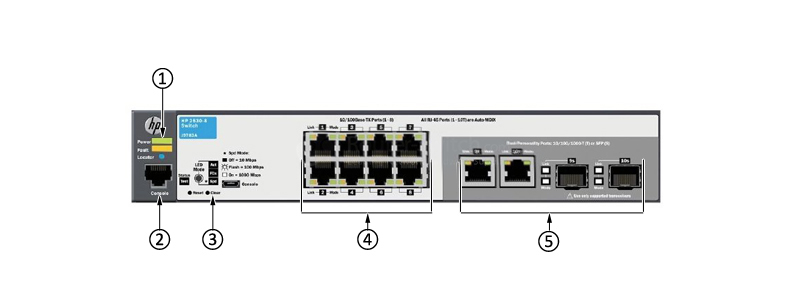

Figure 2 shows the front panel of Aruba J9783A.

Note:

①	Power, Fault, and Locator LEDs
②	Console Port
③	LED Mode select button and indicator LEDs
④	8 × RJ-45 autosensing 10/100 ports
⑤	Dual-personality ports (10/100/1000BASE-T or SFP)

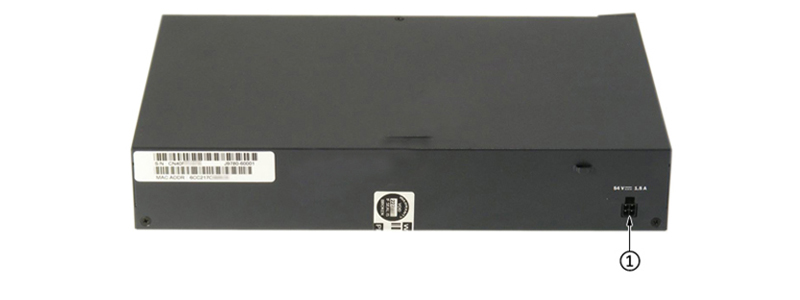

Figure 3 shows the back panel of Aruba J9783A.

Note:

①	DC Power Connector

Compare to Similar Items

Table 2 shows the comparison.

Product Code	J9783A	J9776A	J9775A	J9773A	J9772A
Type	Aruba 2530-8 Switch	Aruba 2530-24G Switch	Aruba 2530-48G Switch	Aruba 2530-24G-PoE+ Switch	Aruba 2530-48G-PoE+ Switch
PoE power	N/A	N/A	N/A	195 W	382 W
Throughput	up to 4.1 million pps (64-byte packets)	Up to 41.6 million pps (64-byte packets)	Up to 77.3 Mp/s (64-byte packets)	up to 41.6 million pps (64-byte packets)	Up to 77.3 million pps (64-byte packets)
Switching capacity	5.6 Gb/s	56 Gb/s	104 Gb/s	56 Gb/s	104 Gb/s

Get more information

Do you have any question about the J9783A?

Aruba 2530 8 Switch

Managed L2 Web-based management

Quality of Service (QoS) support

Basic switching RJ-45 Ethernet ports quantity: 8

10BASE-T, 100BASE-TX

MAC address table: 16000 entries Switching capacity: 5.6 Gbit/s

Access Control List (ACL)

1U Rack mounting Stackable

AC Power supply included

Summary Description

Aruba 2530 8, Managed, L2, Fast Ethernet (10/100), Full duplex, Rack mounting, 1U

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Aruba J9783A?

Our lowest price for J9783A is $201.98 Buy Now

Explore even more affordable prices for Aruba and Aruba products.

specifications

Specification

J9783A Specification

J9783A Specifications
Type	Aruba 2530-8 Switch
System specifications
Ports	· 8 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Media Type: Auto-MDIX; Duplex: half or full · 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports · 1 dual-personality (RJ-45 or USB micro-B) serial console port.
Memory and processor	Processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated.
Mounting	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting.
Management	IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; Out-of-band management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
Performance (IPv6 Ready Certified)
100 Mb latency	< 1.3 µs (LIFO 64-byte packets)
1000 Mb Latency	< 1.3 µs (LIFO 64-byte packets)
Throughput	up to 4.1 million pps (64-byte packets)
Switching capacity	5.6 Gb/s
MAC address table size	16000 entries
Physical specifications
Dimensions (W x D x H)	25.4 x 15.95 x 4.45 cm (10 x 6.28 x 1.75 in) (1U height)
Weight	0.82 kg (1.8 lb)
Electrical specifications
Maximum heat dissipation	25 BTU/hr (26.38 kJ/hr)
Voltage	100 - 127 / 200 - 240 V ac
Current	0.5 A
Idle power1	4.5 W
Maximum power rating2	7.2 W
Frequency	50/60 Hz
NOTE: 1: Idle power is the actual power consumption of the device with no ports connected. 2: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Environmental specifications
Operating temperature	0° to 45°C (32° to 113°F)
Operating relative humidity	15% to 95% @ 104°F (40°C), noncondensing
Non-operating/storage temperature	-40° to 70°C (-40° to 158°F)
Non-operating/storage relative humidity	15% to 90% @ 149°F (65°C), noncondensing
Altitude	up to 3 km (10,000 ft)
Acoustic	Power: 0 dB, Pressure: 0 dB
Safety agency certifications
Safety	UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
NOTE: IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required.
