| Mfr.part#: |
ISR4351-SEC/K9 |
|
| Name: | Cisco ISR4351-SEC/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Security Bundle) | |
| Detail: |
200Mbps-400Mbps system throughput, 3 WAN/LAN ports, 3 SFP ports, multi-Core CPU,2 service module slots, Security, VPN, WAAS, Intelligrnt WAN, OnePK, AVC ISR4351-SEC/K9
|
|
| Availability: | In Stock | |
| Condition: | New | |
| Price: | $7,299.00 | |
ISR4351-SEC/K9
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
Payment:
-
Pay by Visa. -
Pay with your Discover Card. -
Pay with your America Express. -
Pay with your JCB. -
Pay with your Wire Transfer.
-
Genuine Guarantee
-
Price Protection
-
Bulk Order Rebate
-
30 Day Return Policy
overview
specifications
reviews
Overview
ISR4351-SEC/K9 Overview
Cisco ISR4351-SEC/K9 is the Cisco ISR4351/k9 router with Security Bundle. Its other specifications are the same as ISR4351/k9.
Quick Specs

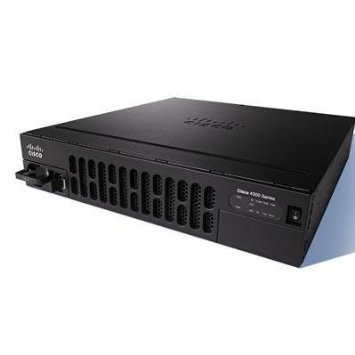

Figure 1 shows the appearance of Cisco ISR4351-SEC/K9.
Table 1 shows the Quick Specs.
Product Code | Cisco ISR4351-SEC/K9 |
Bundle | Security Bundle |
Aggregate Throughput | 200 Mbps to 400 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 3 |
RJ-45-based ports | 3 |
SFP-based ports | 3 |
Enhanced service-module (SM-X) slot | 2 |
NIM (Network Interface Modules) slots | 3 |
Onboard ISC slot | 1 |
Memory | 4 GB (default) / 16 GB (maximum) |
Flash Memory | 4 GB (default) / 16 GB (maximum) |
Power-supply options | Internal: AC, DC (roadmap), and PoE |
Rack height | 2 RU |
Dimensions (H x W x D) | 88.9 mm x 438.15 mm x 469.9 mm |
Product Details
Figure 2 shows the front panel of Cisco ISR4351-SEC/K9.
Note:
â‘ | Power supply unit | â‘¢ | Router power On/Off switch |
â‘¡ | Router fan tray | â‘£ | LEDs |
· The router fan tray is hidden behind the removable bezel.
· LEDs include ten indicators: PSU0, GE/POE, FLASH, TEMP, PWR, POE0, SSD, ISC, FAN and STAT.

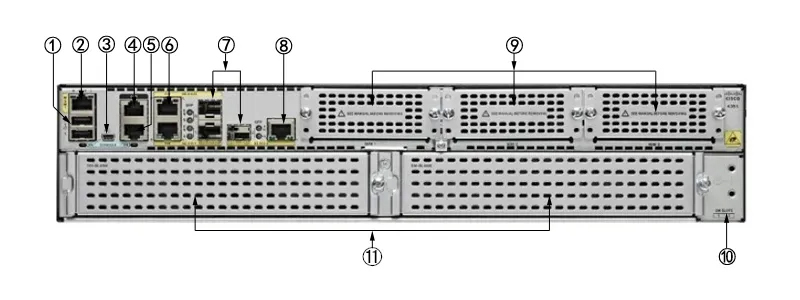

Figure 3 shows the back panel of Cisco ISR4351-SEC/K9.
Note:
①| USB Type A port | ⑦ | SFP port (GE 0/0/0) |
② | GE management port | ⑧ | RJ-45 port (GE/0/0/2) |
③ | USB Type B mini port | ⑨ | NIM slots |
â‘£ | Auxiliary port | â‘© | Ground connection |
⑤ | Console port | ⑪ | Enhanced Service Module (SM-X) slot |
â‘¥ | RJ-45 port (GE 0/0/1) |
· The NIMs support 2 single-wide or 1 double-wide.
Figure 4 shows the Security Bundle features.
The Modules, Cards and Accessories
Table 2 shows some recommended modules, cards and accessories of Cisco ISR4351-SEC/K9.
Items | Models | Descriptions |
Console and Auxillary Cables | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M | |
CAB-ETH-S-RJ45 | Cisco Router Cable CAB-ETH-S-RJ45 | |
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | ||
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | ||
Network Interface Modules | NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
Cisco Multiflex Trunk Voice and WAN network interface module | ||
NIM-4E/M | Analog voice network interface card (ear and mouth) | |
Cisco Analog voice network interface card NIM-2FXS | ||
NIM-2FXS/4FXO | Cisco Analog voice network interface card NIM-2FXS/4FXO | |
NIM-8MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
SFPs for On-Board GE Ports | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | |
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | ||
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
Compare to Similar Item
Table 3 shows the comparison between two similar items.
Models | ISR4351/K9 | ISR4351-SEC/K9 |
Bundle | None | Security Bundle |
Aggregate Throughput | 200 Mbps to 400 Mbps | 200 Mbps to 400 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 3 | 3 |
RJ-45-based ports | 3 | 3 |
SFP-based ports | 3 | 3 |
Enhanced service-module slots | 2 | 2 |
NIM slots | 3 | 3 |
Onboard ISC slot | 1 | 1 |
Rack height | 2 | 2 |
Get more information
Do you have any question about the Cisco ISR4351-SEC/K9?
Contact us now via Live Chat or support@buyrouterswitch.com.
Specification
ISR4351-SEC/K9 Specification
Cisco ISR4351-SEC/K9 Specification | |
Type | Cisco ISR4351/K9 with Security Bundle |
Aggregate Throughput | 200 Mbps to 400 Mbps |
Total onboard WAN or LAN 10/100/1000 ports | 3 |
RJ-45-based ports | 3 |
SFP-based ports | 3 |
Enhanced service-module slots | 2 |
Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
NIM slots | 3 |
OIR (all I/O modules) | Yes |
Onboard ISC slot | 1 |
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4 GB |
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
Default memory DDR3 ECC DRAM (data plane) | NA |
Maximum memory DDR3 ECC DRAM (data plane) | NA |
Default memory DDR3 ECC DRAM (control/services plane) | NA |
Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
Default flash memory | 4 GB |
Maximum flash memory | 16 GB |
External USB 2.0 slots (type A) | 2 |
USB console port -type B mini (up to 115.2 kbps) | 1 |
Serial console port - RJ45 (up to 115.2 kbps) | 1 |
Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
Power-supply options | Internal: AC, DC, and PoE |
Redundant power supply | N/A |
AC input voltage | 100 to 240 VAC autoranging |
AC input frequency | 47 to 63 Hz |
AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
AC input surge current | 60 A peak and less than 12 Arms per half cycle |
Typical power (no modules) (watts) | 48 |
Maximum power with AC power supply (watts) | 430 |
Maximum power with PoE power supply (platform only) (watts) | 990 |
Maximum endpoint PoE power available from PoE power supply (watts) | 500 |
