Mfr.part#:	ISR4331-SEC/K9 Rating: 98% 4.9/5.0 40 Reviews
Name:	Cisco ISR4331-SEC/K9 (3GE,2NIM,1SM,4G FLASH,4G DRAM, Advanced Security Bundle)
Detail:	100Mbps-300Mbps system throughput, 3 WAN/LAN ports, 2 SFP ports, multi-Core CPU,1 service module slots, Security, Voice, WAAS, Intelligrnt WAN, OnePK, AVC ISR4331-SEC/K9
Availability:	In Stock
Condition:	Refurbished
GTIN:	0882658710544 0882658710544 882658710544 8826587105448
Price:	$288.55

ISR4331-SEC/K9

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

resources

reviews

overview

Overview

ISR4331-SEC/K9 Overview

Cisco ISR 4331. Networking standards: IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3, IEEE 802.3ah, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Routing protocols: BGP, EIGRP, IS-IS, OSPF. Firewall security: Zone based firewall (ZBFW). Flash memory: 4000 MB, Internal memory: 4096 MB, Maximum memory card size: 16 GB. Product colour: Black, Rack capacity: 1U

Cisco ISR4331-SEC/K9 is the Cisco ISR4331/k9 router with Security Bundle. Its other specifications are the same as ISR4331/k9.

Quick Specs

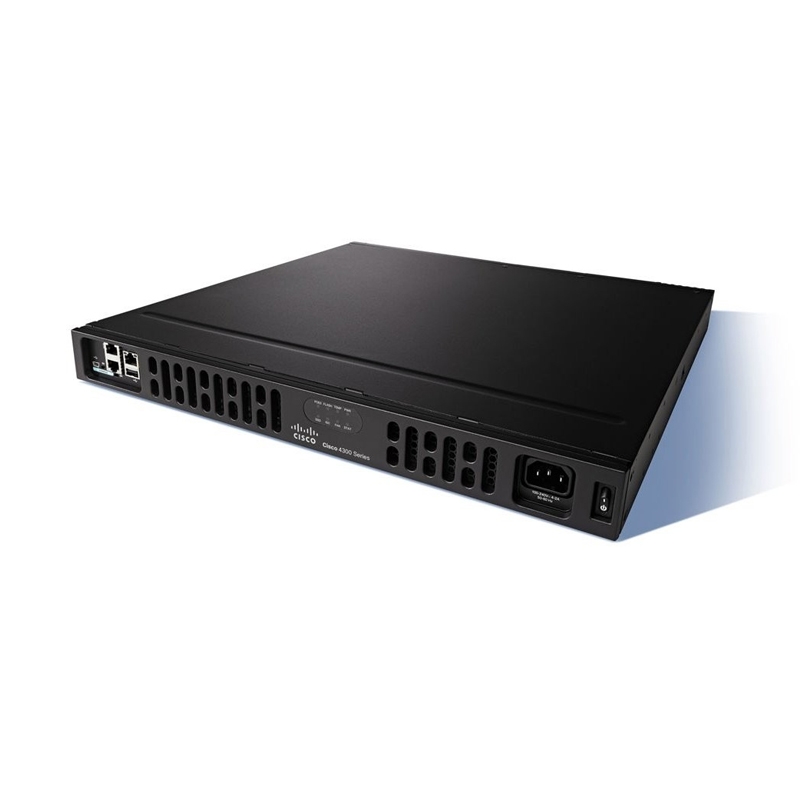

Figure 1 shows the appearance of Cisco ISR4331-SEC/K9.

CISCO ISR4331-SEC/K9

Table 1 shows the Quick Specs.

Product Code	Cisco ISR4331-SEC/K9
Bundle	Security Bundle
Aggregate Throughput	100 Mbps to 300 Mbps
Total onboard WAN or LAN 10/100/1000 ports	3
RJ-45-based ports	2
SFP-based ports	2
Enhanced service-module (SM-X) slot	1
NIM (Network Interface Modules) slots	2
Onboard ISC slot	1
Memory	4 GB (default) / 16 GB (maximum)
Flash Memory	4 GB (default) / 16 GB (maximum)
Power-supply options	Internal: AC and PoE
Rack height	1 RU
Dimensions (H x W x D)	44.45 x 438.15 x 438.15 mm
Package Weight	12.96 Kg

Product Details

Figure 2 shows the front panel of Cisco ISR4331-SEC/K9.

CISCO ISR4331-SEC/K9 Front Panel

Note:

①	USB Type B mini port	⑤	Management port
②	Serial console port	⑥	LEDs
③	USB Type A port	⑦	AC Power
④	AUX Port	⑧	Power switch

· The LEDs include eight indicators: POE0, FLASH, TEMP, PWR, SSD, ISC, FAN and STAT.

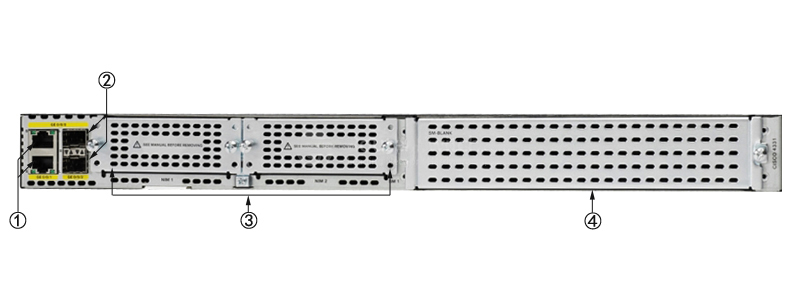

Figure 3 shows the back panel of Cisco ISR4331-SEC/K9.

CISCO ISR4331-SEC/K9 Back Panel

Note:

①	RJ45 Ports	③	NIM Slots
②	SFP Ports	④	SM-X Slot

·① & ② : These four ports include one combo port, one RJ45 port and one SFP port. It means the RJ45 and SFP in the combo port can't be used at the same time.

· NIM slots support one double-wide or two signal-wide modules.

· An SM-X slot can be converted into a Network Interface Module (NIM) slot using an optional carrier card.

Figure 4 shows Security Bundle Functions.

Security Bundle Functions

The Modules, Cards and Accessories

Table 2 shows some recommended modules, cards and accessories of Cisco ISR4331-SEC/K9.

Items	Models	Descriptions
Console and Auxillary Cables	CAB-AUX-RJ45	Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M
	CAB-ETH-S-RJ45	Cisco Router Cable CAB-ETH-S-RJ45
	CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
	CAB-CONSOLE-USB	Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B
Network Interface Modules	NIM-1MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
	NIM-2CE1T1-PRI	Cisco Multiflex Trunk Voice and WAN network interface module
	NIM-4E/M	Analog voice network interface card (ear and mouth)
	NIM-2FXS	Cisco Analog voice network interface card NIM-2FXS
	NIM-2FXS/4FXO	Cisco Analog voice network interface card NIM-2FXS/4FXO
	NIM-8MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
SFPs for On-Board GE Ports	GLC-SX-MMD	Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
	GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
	GLC-ZX-SMD	Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Item

Table 3 shows the comparison between two similar items.

Models	Cisco ISR4331/K9	ISR4331-SEC/K9
Bundle	None	Security Bundle
Aggregate Throughput	100 Mbps to 300 Mbps	100 Mbps to 300 Mbps
Total onboard WAN or LAN 10/100/1000 ports	3	3
RJ-45-based ports	2	2
SFP-based ports	2	2
Enhanced service-module slots	1	1
NIM slots	2	2
Onboard ISC slot	1	1
Rack height	1	1

Get more information

Do you have any question about the Cisco ISR4331-SEC/K9?

100 - 300 Mbps, 3x GE, 2x NIM, 1x ISC, 1x SM, 4x GB Flash Memory, 4x GB DRAM, 1RU, 250W, 11.0 lb w/SEC license

Ethernet WAN

IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3, IEEE 802.3ah

Gigabit Ethernet

ADSL2

Web-based management

Summary Description

Cisco ISR 4331, Ethernet WAN, Gigabit Ethernet, Black

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco ISR4331-SEC/K9?

Our lowest price for ISR4331-SEC/K9 is $288.55 Buy Now

Explore even more affordable prices for Routers and Cisco products.

specifications

Specification

ISR4331-SEC/K9 Specification

Cisco ISR4331-SEC/K9 Specification
Type	Cisco ISR4331/K9 with Security Bundle
Aggregate Throughput	100 Mbps to 300 Mbps
Total onboard WAN or LAN 10/100/1000 ports	3
RJ-45-based ports	2
SFP-based ports	2
Enhanced service-module slots	1
Doublewide service-module slots	0
NIM slots	2
OIR (all I/O modules)	Yes
Onboard ISC slot	1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	16 GB
Default memory DDR3 ECC DRAM (data plane)	NA
Maximum memory DDR3 ECC DRAM (data plane)	NA
Default memory DDR3 ECC DRAM (control/services plane)	NA
Maximum memory DDR3 ECC DRAM (control/services plane)	NA
Default flash memory	4 GB
Maximum flash memory	16 GB
External USB 2.0 slots (type A)	1
USB console port -type B mini (up to 115.2 kbps)	1
Serial console port - RJ45 (up to 115.2 kbps)	1
Serial auxiliary port - RJ45 (up to 115.2 kbps)	1
Power-supply options	Internal: AC and PoE
Redundant power supply	N/A
AC input voltage	100 to 240 VAC autoranging
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	3 to 1.3A
AC input surge current	60 A peak and less than 5 Arms per half cycle
Typical power (no modules) (watts)	42
Maximum power with AC power supply (watts)	250
Maximum power with PoE power supply (platform only) (watts)	530
Maximum endpoint PoE power available from PoE power supply (watts)	250
