Mfr.part#:	ISR4221-SEC/K9 Rating: 96% 4.8/5.0 37 Reviews
Name:	Cisco ISR 4221 SEC Bundle with SEC lic
Detail:	35Mbps-75Mbps system throughput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, SEC Bundle with SEC lic ISR4221-SEC/K9
Availability:	In Stock
Condition:	New
GTIN:	0882658978616 0882658978616 882658978616 8592978103392
Price:	$573.12

ISR4221-SEC/K9

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

ISR4221-SEC/K9 Overview

Cisco ISR4221-SEC/K9. Networking standards: IEEE 802.1ag, IEEE 802.3, IEEE 802.3ah, Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 3DES, 128-bit AES, 256-bit AES, DES, WDS. Flash memory: 8 MB, Internal memory: 4 MB, Mean time between failures (MTBF): 593270 h. Product colour: Black, Grey, Rack capacity: 1U. Power consumption (typical): 24 W, Power source type: AC, AC input voltage: 100 - 240 V

ISR4221-SEC/K9 is the Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It bundles Security Bundle with Security License.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	Cisco ISR4221-SEC/K9
Bundle	Cisco ISR 4221 SEC Bundle with SEC lic
Aggregate Throughput	35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports	2
RJ-45-based ports	2
SFP-based ports	1
NIM (Network Interface Modules) slots	2
Onboard ISC slot	No
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	4 GB
Flash Memory	8 GB
Power-supply options	External AC only
Rack height	1 RU
Dimensions (H x W x D)	1.72 x 12.7 x 10 in (43.7 x 322.6 x 254 mm)
Weight with AC PS (no modules)	7.1 lb (3.22 kg)

Product Details

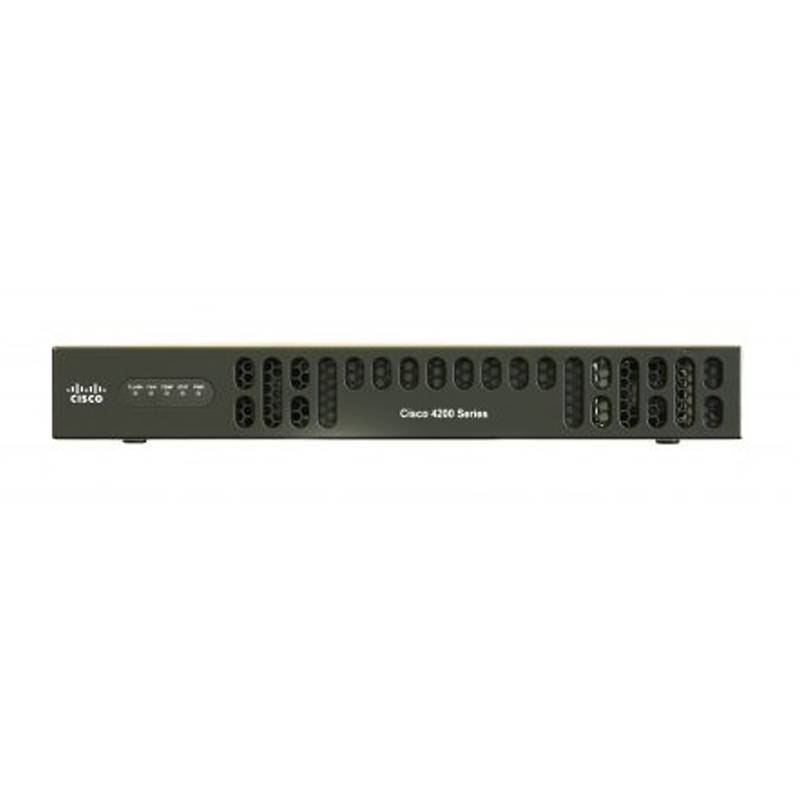

Figure 1 shows the LEDs on the front panel of the Cisco ISR4221-SEC/K9.

CISCO ISR4221-SEC-K9 Front Panel

·There are 4 LEDs on the front panel.

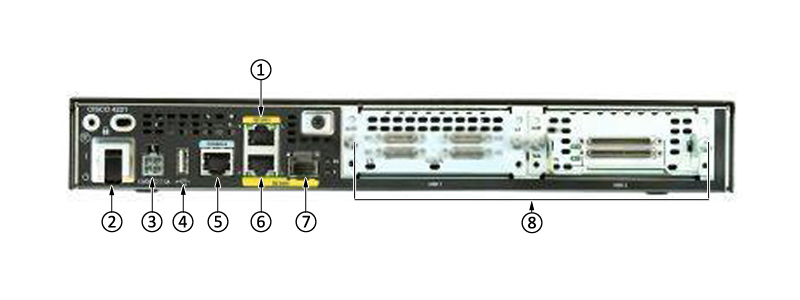

Figure 2 shows the back panel of Cisco ISR4221-SEC/K9.

CISCO ISR4221-SEC-K9 Back Panel

Note:

①	GE 0/0/0 RJ-45 (copper cable) port	⑤	Console port
②	Power switch	⑥	GE 0/0/1 (copper cable) port
③	Power input connector	⑦	GE 0/0/0 SFP (fiber-optic) port
④	GE “MGMT” port (with USB port below)	⑧	NIM slots

Figure 3 shows the Security License function.

The Modules & Cards

Table 2 shows some recommended modules and cards.

Items	Models	Description
Console and Auxillary Cables	CAB-CONSOLE-RJ45	Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
Network Interface Modules	NIM-1MFT-T1/E1	Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
	NIM-ES2-4	Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2
	NIM-ES2-8	Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM
SFPs for On-Board GE Ports	GLC-LH-SMD	Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
	GLC-ZX-SMD	Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM
	GLC-SX-MMD	Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

Compare to Similar Items

Table 3 shows the comparison.

Models	ISR4221/K9	ISR4221-SEC/K9
Bundle	N/A	Cisco ISR 4221 SEC Bundle with SEC lic
Aggregate Throughput	35 Mbps to 75 Mbps	35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports	2	2
RJ-45-based ports	2	2
SFP-based ports	1	1
NIM slots	2	2
Rack height	1	1

Get more information

Do you have any question about the Cisco ISR4221-SEC/K9?

ISR 4221 SEC Bundle with SEC lic

Ethernet WAN

IEEE 802.1ag, IEEE 802.3, IEEE 802.3ah

Gigabit Ethernet

DHCP client

3DES, 128-bit AES, 256-bit AES, DES, WDS

Summary Description

Cisco ISR4221-SEC/K9, Ethernet WAN, Gigabit Ethernet, Black, Grey

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco ISR4221-SEC/K9?

Our lowest price for ISR4221-SEC/K9 is $573.12 Buy Now

Explore even more affordable prices for Routers and Cisco products.

specifications

Specification

ISR4221-SEC/K9 Specification

Cisco ISR4221-SEC/K9 Specification
Bundle	Cisco ISR 4221 SEC Bundle with SEC lic
Aggregate Throughput	35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports	2
RJ-45-based ports	2
SFP-based ports	1
Enhanced service-module slots	0
Doublewide service-module slots	0
NIM slots	2
OIR (all I/O modules)	No
Onboard ISC slot	No
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes)	4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)	4 GB
Default memory DDR3 ECC DRAM (data plane)	NA
Maximum memory DDR3 ECC DRAM (data plane)	NA
Default memory DDR3 ECC DRAM (control/services plane)	NA
Maximum memory DDR3 ECC DRAM (control/services plane)	NA
Default flash memory	8 GB
Maximum flash memory	8 GB
External USB 2.0 slots (type A)	1
USB console port -type B mini (up to 115.2 kbps)	0
Serial console port - RJ45 (up to 115.2 kbps)	1 (combo CON/AUX port)
Serial auxiliary port - RJ45 (up to 115.2 kbps)	1 (combo CON/AUX port)
Power-supply options	External: AC Only
Redundant power supply	N/A
AC input voltage	100 to 240 VAC autoranging
AC input frequency	47 to 63 Hz
AC input current range, AC power supply (maximum)	1.5 to 0.6A
AC input surge current	90 A peak and less than 3 Arms per half cycle
Typical power (no modules) (watts)	24
Maximum power with AC power supply (watts)	90
Maximum power with PoE power supply (platform only) (watts)	NA (no PoE support)
Maximum endpoint PoE power available from PoE power supply (watts)	NA (no PoE support)
