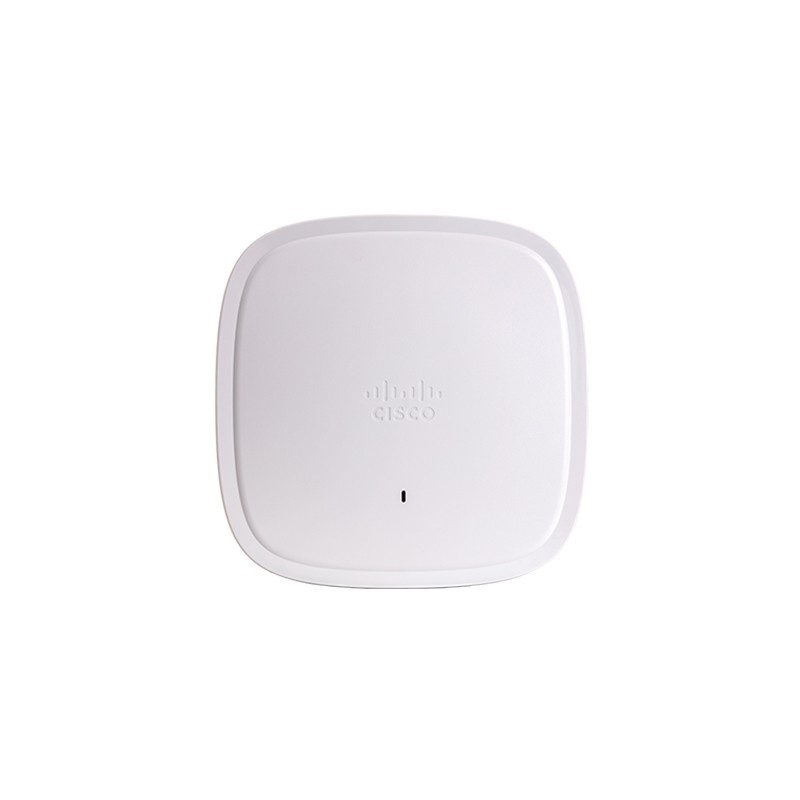

C9130AXI-T - Cisco Catalyst 9130 WiFi 6 Access Point
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
- Authenticity: Original Genuine OEM
C9130AXI-T
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com SAM.gov Registered Vendor CAGE Code : 23P86
overview
specifications
faqs
reviews
C9130AXI-T Overview
Cisco Catalyst 9130AX Series C9130AXI-T
Overview
C9130AXI-T Overview
Cisco C9130AXI-T, 5380 Mbit/s, 100,1000,2500,5000 Mbit/s, Multi User MIMO, White, Internal, Omni-directional
The Cisco® Catalyst® 9130AX Series Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. C9130AXI-T is the Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, T Domain.
Product Details
Cisco AP C9130AX Series provides these features:
• Wi-Fi 6 certified, supporting 802.11ax on both 2.4-GHz and 5-GHz bands
• Up to four Wi-Fi radios: 5GHz flexible radio (single 8x8 or dual 4x4), 2.4GHz (4x4) and Cisco RF ASIC
• OFDMA and MU-MIMO
• Multigigabit support
• Internal and external antenna
Future feature support:
• IoT ready (BLE, other 802.15.4 protocols** like Zigbee)
** - Supported in future software releases
Supported Platforms
.
Supported wireless LAN controllers and Software | Recommended Model |
Cisco 3500 Series Wireless Controllers | |
Cisco 5520 Series Wireless Controllers | |
Cisco 8540 Series Wireless Controllers | |
Cisco 9800 series Wireless Controllers | |
Cisco Virtual Wireless Controller | / |
Cisco Unified Wireless Network Software Release 8.9 or later | / |
Cisco IOS ® XE Software Release 16.11 or later | / |
Compare to Similar Items
SKU | Description |
Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, A Domain | |
Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain | |
Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, D Domain | |
C9130AXI-E | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, E Domain |
C9130AXI-F | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, F Domain |
C9130AXI-G | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, G Domain |
C9130AXI-H | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, H Domain |
C9130AXI-I | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, I Domain |
C9130AXI-K | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, K Domain |
C9130AXI-Q | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, Q Domain |
C9130AXI-R | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, R Domain |
C9130AXI-S | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, S Domain |
C9130AXI-T | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, T Domain |
C9130AXI-Z | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, Z Domain |
C9130AXI-T Catalyst 9130AXI Access Point: Indoor environments, with internal antennas
- 2.4 GHz
- 5 GHz
- Maximum data transfer rate: 5380 Mbit/s
- Power over Ethernet (PoE)
- Internal
Summary Description
Cisco C9130AXI-T, 5380 Mbit/s, 100,1000,2500,5000 Mbit/s, Multi User MIMO, White, Internal, Omni-directional
Need help with C9130AXI-T?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
C9130AXI-T Specification
C9130AXI-T Specification | |
Software
| Catalyst 9130AXI • Cisco Unified Wireless Network Software Release 8.10.x or later • Cisco IOS ® XE Software Release 16.12.1 with AP Device Pack, or later |
Supported wireless LAN controllers
| • Cisco Catalyst 9800 Series Wireless Controllers • Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
802.11n version 2.0 (and related) capabilities
| • 4x4 MIMO with four spatial streams • Maximal Ratio Combining (MRC) • 802.11n and 802.11a/g • 20- and 40-MHz channels • PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) • 802.11 Dynamic Frequency Selection (DFS) • Cyclic Shift Diversity (CSD) support |
802.11ac
| • 8x8 downlink MU-MIMO with eight spatial streams • MRC • 802.11ac beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support • WPA3 support |
802.11ax
| • 8x8 uplink/downlink MU-MIMO with eight spatial streams • Uplink/downlink OFDMA • TWT • BSS coloring • MRC • 802.11ax beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support • WPA3 support |
Integrated antenna
| • 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth • 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth |
External antenna with Smart antenna connector
| • The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios • Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector • Smart antenna connector is a compact multi-RF connector with 8-DART interface • Requires the AIR-CAB002-D8-R= 2-fppt smart antenna connector when used with antennas with a RP-TNC connector • Requires the AIR-CAB003-D8-N= 3 ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna |
Interfaces
| • 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz • Management console port (RJ-45) • USB 2.0 at 4.5W (enabled via future software) |
Indicators
| • Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
Dimensions (W x L x H)
| • Access point (without mounting brackets): - C9130AXI: 8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm) |
Environmental
| Cisco Catalyst 9130AXI • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) • Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m) • Operating temperature: 32° to 122°F (0° to 50°C) • Operating humidity: 10% to 90% (noncondensing) • Operating altitude test: 40˚C, 9843 ft (3000 m) Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 8x8 to 4x4 on the 5 GHz radio, uplink Ethernet will downgrade to 1 Gigabit Ethernet; however, the USB interface will remain enabled. |
System memory
| • 2048 MB DRAM • 1024 MB flash |
Warranty | Limited lifetime hardware warranty |
Available transmit power settings
| 2.4 GHz • 23 dBm (200 mW) • 20 dBm (100 mW) • 17 dBm (50 mW) • 14 dBm (25 mW) • 11 dBm (12.5 mW) • 8 dBm (6.25 mW) • 5 dBm (3.13 mW) • 2 dBm (1.56 mW) • -1 dBm (0.79 mW) • -4 dBm(0.39 mW) 5 GHz • 26 dBm (400 mW) • 23 dBm (200 mW) • 20 dBm (100 mW) • 17 dBm (50 mW) • 14 dBm (25 mW) • 11 dBm (12.5 mW) • 8 dBm (6.25 mW) • 5 dBm (3.13 mW) • 2 dBm (1.56 mW) • -1 dBm (0.79 mW) |
Maximum number of nonoverlapping channels
| 2.4 GHz • 802.11b/g: - 20 MHz: 3 • 802.11n: - 20 MHz: 3 • 802.11ax: - 20 MHz: 3 5 GHz • 802.11a: - 20 MHz: 26 FCC, 16 EU • 802.11n: - 20 MHz: 26 FCC, 16 EU - 40 MHz: 12 FCC, 7 EU • 802.11ac/ax: - 20 MHz: 26 FCC, 16 EU - 40 MHz: 12 FCC, 7 EU - 80 MHz: 5 FCC, 3 EU - 160 MHz 2 FCC, 1 EU Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
Compliance standards | • Safety: - IEC 60950-1 - EN 60950-1 - UL 60950-1 - CAN/CSA-C22.2 No. 60950-1 - AS/NZS60950.1 - UL 2043 - Class III equipment • Emissions: - CISPR 32 (rev. 2015) - EN 55032 (rev. 2012/AC:2013) - EN 55032 (rev. 2015) - EN61000-3-2 (rev. 2014) - EN61000-3-3 (rev. 2013) - KN61000-3-2 - KN61000-3-3 - AS/NZS CISPR 32 Class B (rev. 2015) - 47 CFR FCC Part 15B - ICES-003 (rev. 2016 Issue 6, Class B) - VCCI-CISPR 32 - CNS (rev. 13438) - KN-32 - QCVN 118:2018/BTTTT • Immunity: - CISPR 24 (rev. 2010) - EN 55024 + AMD 1(rev. 2010) - EN 55035: 2017 - KN35 • Emissions and immunity: - EN 301 489-1 (v2.1.1 2017-02) - EN 301 489-17 (v3.1.1 2017-02) - QCVN (18:2014) - QCVN 112:2017/BTTTT - KN 489-1 - KN 489-17 - EN 60601-1-2:2015 - EN 61000-6-1: 2007 • Radio: - EN 300 328 (v2.1.1) - EN 301 893 (v2.1.1) - AS/NZS 4268 (rev. 2017) - 47 CFR FCC Part 15C, 15.247, 15.407 - RSP-100 - RSS-GEN - RSS-247 - China regulations SRRC - LP0002 (rev 2018.1.10) - Japan Std. 33a, Std. 66, and Std. 71 • RF safety: - EN 50385 (rev. Aug 2002) - ARPANSA - AS/NZS 2772 (rev. 2016) - EN 62209-1 (rev. 2016) - EN 62209-2 (rev. 2010) - 47 CFR Part 1.1310 and 2.1091 - RSS-102 • IEEE standards: - IEEE 802.3 - IEEE 802.3ab - IEEE 802.3af/at - IEEE 802.11a/b/g/n/ac/ax - IEEE 802.11h, 802.11d • Security: - 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA3 - 802.1X - Advanced Encryption Standard (AES) • Extensible Authentication Protocol (EAP) types: - EAP-Transport Layer Security (TLS) - EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2 - Protected EAP (PEAP) v0 or EAP-MSCHAP v2 - EAP-Flexible Authentication via Secure Tunneling (EAP-FAST) - PEAP v1 or EAP-Generic Token Card (GTC) - EAP-Subscriber Identity Module (SIM) |
Frequently Asked Questions
What are the primary performance advantages of the Cisco C9130AXI-T access point? +
The C9130AXI-T supports the Wi-Fi 6 (802.11ax) standard, offering increased capacity and efficiency in high-density environments. It features 4x4:4 MU-MIMO capabilities, significantly improving aggregate throughput and performance for multiple concurrent client devices compared to previous-generation 802.11ac hardware.
Does the C9130AXI-T require a physical controller for deployment? +
This model supports flexible deployment options, including centralized management via Cisco Catalyst 9800 Series Wireless Controllers, as well as Cisco Mobility Express or EWC (Embedded Wireless Controller) modes for smaller branch deployments. You can choose the management architecture that best aligns with your current enterprise network infrastructure.
How does the C9130AXI-T handle radio frequency interference in dense office settings? +
Equipped with Cisco CleanAir technology, the C9130AXI-T provides proactive interference mitigation. It uses dedicated hardware to detect, classify, and locate sources of RF interference, automatically adjusting channel assignments to ensure optimal signal quality and uptime in environments crowded with competing wireless signals.
What type of antenna configuration is used on the C9130AXI-T? +
The 'I' in C9130AXI-T denotes that this unit features internal antennas. This design provides a clean, aesthetic appearance suitable for standard indoor office environments where discreet ceiling or wall mounting is required, while still maintaining high-performance signal coverage patterns.
Is the C9130AXI-T compatible with existing Cisco Catalyst 9000 infrastructure? +
Yes, this access point is designed to integrate seamlessly into the Cisco Catalyst 9000 ecosystem. It supports intent-based networking features, allowing administrators to maintain consistent security policies and automation capabilities across both their wired and wireless switching fabric.
What are the power requirements for the C9130AXI-T? +
To achieve full functionality, including all MIMO chains and radio features, the device is typically powered via IEEE 802.3at (PoE+) or 802.3bt (UPOE/PoE++). If power is limited to 802.3af, the access point may enter a reduced-feature mode to ensure system stability.
Does the C9130AXI-T support IoT integration? +
This access point includes built-in support for BLE (Bluetooth Low Energy) and Zigbee/Thread protocols. This allows organizations to leverage the AP as an IoT gateway, enabling location tracking, asset management, and smart building sensor connectivity without the need for additional overlay networks.
How do I ensure this C9130AXI-T unit is authentic and not a counterfeit? +
BuyRouterSwitch.com sources hardware directly through authorized channels, ensuring all units are 100% genuine Cisco equipment. We provide serialized, factory-sealed products that integrate perfectly with your Cisco Smart Net Total Care contracts and support entitlements, protecting your investment from the risks associated with third-party marketplaces.
What is the process for requesting a bulk quote for C9130AXI-T units? +
For large-scale infrastructure projects, contact our dedicated sales team at BuyRouterSwitch.com to request a formal bulk quote. We offer competitive pricing tiers based on order volume and can assist with custom bill-of-materials to ensure your entire deployment remains within budget while maintaining high-grade technical specifications.
What security features does the C9130AXI-T offer for client authentication? +
The C9130AXI-T supports WPA3, the latest security standard for wireless networks, providing robust encryption and enhanced protection against brute-force attacks. When paired with Cisco DNA Center, it also supports advanced identity-based segmentation, ensuring that devices are granted access only to authorized network segments based on user roles.
