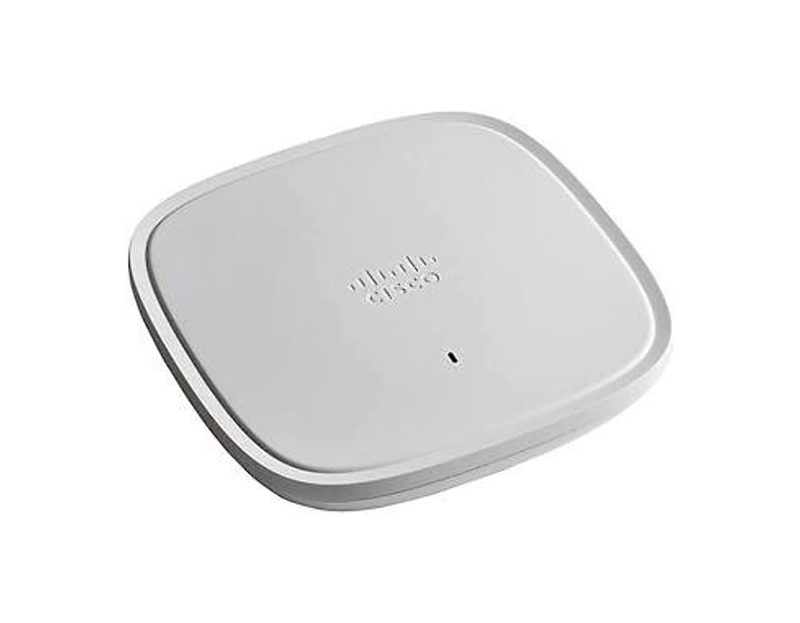

C9130AXI-B - Cisco Catalyst 9130 WiFi 6 Access Points
- $89.70 In Stock - Ships Worldwide Order by 2:00 PM ET for Overnight Shipping
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
C9130AXI-B
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com SAM.gov Registered Vendor CAGE Code : 23P86
overview
specifications
faqs
reviews
C9130AXI-B Overview
Cisco Catalyst 9130AX series AP, Wi-Fi 6 certified, B Domain C9130AXI-B
Overview
C9130AXI-B Overview
Cisco C9130AXI-B, 100,1000,2500,5000 Mbit/s, 2.4/5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3,..., Multi User MIMO, AES, WPA2, WPA3, Grey
The Cisco® Catalyst® 9130AX Series Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. C9130AXI-B is the Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain.
Product Details
Cisco AP C9130AX Series provides these features:
• Wi-Fi 6 certified, supporting 802.11ax on both 2.4-GHz and 5-GHz bands
• Up to four Wi-Fi radios: 5GHz flexible radio (single 8x8 or dual 4x4), 2.4GHz (4x4) and Cisco RF ASIC
• OFDMA and MU-MIMO
• Multigigabit support
• Internal and external antenna
Future feature support:
• IoT ready (BLE, other 802.15.4 protocols** like Zigbee)
** - Supported in future software releases
Supported Platforms
.
Supported wireless LAN controllers and Software | Recommended Model |
Cisco 3500 Series Wireless Controllers | |
Cisco 5520 Series Wireless Controllers | |
Cisco 8540 Series Wireless Controllers | |
Cisco 9800 series Wireless Controllers | |
Cisco Virtual Wireless Controller | / |
Cisco Unified Wireless Network Software Release 8.9 or later | / |
Cisco IOS ® XE Software Release 16.11 or later | / |
Compare to Similar Items
SKU | Description |
Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, A Domain | |
C9130AXI-B | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, B Domain |
Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, D Domain | |
C9130AXI-E | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, E Domain |
C9130AXI-F | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, F Domain |
C9130AXI-G | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, G Domain |
C9130AXI-H | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, H Domain |
C9130AXI-I | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, I Domain |
C9130AXI-K | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, K Domain |
C9130AXI-Q | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, Q Domain |
C9130AXI-R | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, R Domain |
C9130AXI-S | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, S Domain |
C9130AXI-T | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, T Domain |
C9130AXI-Z | Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, Z Domain |
Catalyst 9130AX Access Point: Indoor environments, with internal antennas, regulatory domain B
- 2.4 GHz
- 5 GHz
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
- AES, WPA2, WPA3
- Power over Ethernet (PoE)
- Internal
Summary Description
Cisco C9130AXI-B, 100,1000,2500,5000 Mbit/s, 2.4/5 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3,..., Multi User MIMO, AES, WPA2, WPA3, Grey
Need help with C9130AXI-B?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
C9130AXI-B Specification
C9130AXI-B Specification | |
Software
| Catalyst 9130AXI • Cisco Unified Wireless Network Software Release 8.10.x or later • Cisco IOS ® XE Software Release 16.12.1 with AP Device Pack, or later |
Supported wireless LAN controllers
| • Cisco Catalyst 9800 Series Wireless Controllers • Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
802.11n version 2.0 (and related) capabilities
| • 4x4 MIMO with four spatial streams • Maximal Ratio Combining (MRC) • 802.11n and 802.11a/g • 20- and 40-MHz channels • PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) • 802.11 Dynamic Frequency Selection (DFS) • Cyclic Shift Diversity (CSD) support |
802.11ac
| • 8x8 downlink MU-MIMO with eight spatial streams • MRC • 802.11ac beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support • WPA3 support |
802.11ax
| • 8x8 uplink/downlink MU-MIMO with eight spatial streams • Uplink/downlink OFDMA • TWT • BSS coloring • MRC • 802.11ax beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support • WPA3 support |
Integrated antenna
| • 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth • 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth |
External antenna with Smart antenna connector
| • The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios • Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector • Smart antenna connector is a compact multi-RF connector with 8-DART interface • Requires the AIR-CAB002-D8-R= 2-fppt smart antenna connector when used with antennas with a RP-TNC connector • Requires the AIR-CAB003-D8-N= 3 ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna |
Interfaces
| • 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz • Management console port (RJ-45) • USB 2.0 at 4.5W (enabled via future software) |
Indicators
| • Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
Dimensions (W x L x H)
| • Access point (without mounting brackets): - C9130AXI: 8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm) |
Environmental
| Cisco Catalyst 9130AXI • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) • Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m) • Operating temperature: 32° to 122°F (0° to 50°C) • Operating humidity: 10% to 90% (noncondensing) • Operating altitude test: 40˚C, 9843 ft (3000 m) Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 8x8 to 4x4 on the 5 GHz radio, uplink Ethernet will downgrade to 1 Gigabit Ethernet; however, the USB interface will remain enabled. |
System memory
| • 2048 MB DRAM • 1024 MB flash |
Warranty | Limited lifetime hardware warranty |
Available transmit power settings
| 2.4 GHz • 23 dBm (200 mW) • 20 dBm (100 mW) • 17 dBm (50 mW) • 14 dBm (25 mW) • 11 dBm (12.5 mW) • 8 dBm (6.25 mW) • 5 dBm (3.13 mW) • 2 dBm (1.56 mW) • -1 dBm (0.79 mW) • -4 dBm(0.39 mW) 5 GHz • 26 dBm (400 mW) • 23 dBm (200 mW) • 20 dBm (100 mW) • 17 dBm (50 mW) • 14 dBm (25 mW) • 11 dBm (12.5 mW) • 8 dBm (6.25 mW) • 5 dBm (3.13 mW) • 2 dBm (1.56 mW) • -1 dBm (0.79 mW) |
Maximum number of nonoverlapping channels
| 2.4 GHz • 802.11b/g: - 20 MHz: 3 • 802.11n: - 20 MHz: 3 • 802.11ax: - 20 MHz: 3 5 GHz • 802.11a: - 20 MHz: 26 FCC, 16 EU • 802.11n: - 20 MHz: 26 FCC, 16 EU - 40 MHz: 12 FCC, 7 EU • 802.11ac/ax: - 20 MHz: 26 FCC, 16 EU - 40 MHz: 12 FCC, 7 EU - 80 MHz: 5 FCC, 3 EU - 160 MHz 2 FCC, 1 EU Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
Compliance standards | • Safety: - IEC 60950-1 - EN 60950-1 - UL 60950-1 - CAN/CSA-C22.2 No. 60950-1 - AS/NZS60950.1 - UL 2043 - Class III equipment • Emissions: - CISPR 32 (rev. 2015) - EN 55032 (rev. 2012/AC:2013) - EN 55032 (rev. 2015) - EN61000-3-2 (rev. 2014) - EN61000-3-3 (rev. 2013) - KN61000-3-2 - KN61000-3-3 - AS/NZS CISPR 32 Class B (rev. 2015) - 47 CFR FCC Part 15B - ICES-003 (rev. 2016 Issue 6, Class B) - VCCI-CISPR 32 - CNS (rev. 13438) - KN-32 - QCVN 118:2018/BTTTT • Immunity: - CISPR 24 (rev. 2010) - EN 55024 + AMD 1(rev. 2010) - EN 55035: 2017 - KN35 • Emissions and immunity: - EN 301 489-1 (v2.1.1 2017-02) - EN 301 489-17 (v3.1.1 2017-02) - QCVN (18:2014) - QCVN 112:2017/BTTTT - KN 489-1 - KN 489-17 - EN 60601-1-2:2015 - EN 61000-6-1: 2007 • Radio: - EN 300 328 (v2.1.1) - EN 301 893 (v2.1.1) - AS/NZS 4268 (rev. 2017) - 47 CFR FCC Part 15C, 15.247, 15.407 - RSP-100 - RSS-GEN - RSS-247 - China regulations SRRC - LP0002 (rev 2018.1.10) - Japan Std. 33a, Std. 66, and Std. 71 • RF safety: - EN 50385 (rev. Aug 2002) - ARPANSA - AS/NZS 2772 (rev. 2016) - EN 62209-1 (rev. 2016) - EN 62209-2 (rev. 2010) - 47 CFR Part 1.1310 and 2.1091 - RSS-102 • IEEE standards: - IEEE 802.3 - IEEE 802.3ab - IEEE 802.3af/at - IEEE 802.11a/b/g/n/ac/ax - IEEE 802.11h, 802.11d • Security: - 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA3 - 802.1X - Advanced Encryption Standard (AES) • Extensible Authentication Protocol (EAP) types: - EAP-Transport Layer Security (TLS) - EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2 - Protected EAP (PEAP) v0 or EAP-MSCHAP v2 - EAP-Flexible Authentication via Secure Tunneling (EAP-FAST) - PEAP v1 or EAP-Generic Token Card (GTC) - EAP-Subscriber Identity Module (SIM) |
Frequently Asked Questions
What are the primary performance advantages of the Cisco C9130AXI-B Wi-Fi 6 access point? +
The C9130AXI-B leverages Wi-Fi 6 (802.11ax) technology to deliver increased capacity and efficiency in high-density environments. By utilizing OFDMA and MU-MIMO, this access point significantly reduces latency and improves aggregate throughput for multiple connected clients. It is specifically engineered to handle bandwidth-intensive applications and high-density deployments where consistent, reliable wireless performance is mission-critical for enterprise operations.
What does the 'B' regulatory domain represent for the C9130AXI-B? +
The 'B' regulatory domain signifies that this specific model is configured to operate within the radio frequency compliance standards required for the United States. When deploying Cisco Catalyst 9130AX series hardware, it is essential to ensure that the regulatory domain matches your local operational environment to maintain full legal compliance and optimal radio frequency performance according to regional spectrum regulations.
Does the C9130AXI-B support integration with Cisco DNA Center? +
Yes, the C9130AXI-B is fully compatible with Cisco DNA Center. This integration allows for centralized management, advanced analytics, and software-defined access. By utilizing DNA Center, IT teams can automate provisioning, simplify network operations, and gain deeper visibility into client behavior, which is essential for maintaining a secure and highly optimized wireless infrastructure across large enterprise campus sites.
How should I power the C9130AXI-B in an enterprise environment? +
This access point is designed to be powered via Power over Ethernet (PoE). To achieve full functionality, including 4x4:4 MIMO on both 2.4GHz and 5GHz radios, it is recommended to use a power source that supports 802.3at (PoE+) or 802.3bt (UPOE/UPOE+) standards. Utilizing standard 802.3af PoE may result in restricted features, so verify your switch power budget before deployment.
What type of antenna configuration does the C9130AXI-B utilize? +
The 'I' in the C9130AXI-B model number denotes that this unit features integrated antennas. These internal antennas are optimized for professional indoor deployments, providing an aesthetically pleasing look while maintaining high-performance RF coverage. This configuration is ideal for office spaces, schools, and corporate environments where streamlined hardware installation is preferred over external antenna arrays.
Is the C9130AXI-B suitable for high-density IoT deployments? +
Absolutely. The C9130AXI-B is built with dedicated hardware for IoT support, including BLE 5.0 capabilities. This allows the access point to serve as a gateway for asset tracking, indoor navigation, and various IoT sensor ecosystems. Its multi-radio architecture ensures that IoT communication does not interfere with primary Wi-Fi traffic, maintaining stability for both data and connected smart-device workloads.
Can I manage the C9130AXI-B without a physical wireless controller? +
The C9130AXI-B supports Cisco Embedded Wireless Controller (EWC) functionality, allowing the access point to act as a controller for smaller deployments. Alternatively, it can be managed via a centralized Cisco Catalyst 9800 series wireless controller for larger, enterprise-wide networks. This flexibility ensures that the hardware can scale effectively alongside your organization's growth from a single site to a distributed network.
What is the recommended physical mounting procedure for this indoor unit? +
The C9130AXI-B is designed for ceiling or wall mounting using the integrated mounting bracket system. When installing, ensure the location provides optimal line-of-sight to the client area. Always clear the path of metal obstructions to minimize signal attenuation. For secure deployments, follow standard enterprise mounting procedures to ensure the unit remains firmly anchored and properly positioned for signal propagation.
How can I obtain a competitive bulk quote for Cisco C9130AXI-B units at BuyRouterSwitch.com? +
For organizations planning large-scale wireless infrastructure upgrades, we offer streamlined bulk pricing. Simply reach out to our dedicated sales team through our website contact form or email with your specific SKU requirements and quantities. We specialize in volume procurement for enterprise clients and will provide a tailored quote that aligns with your project budget and networking scale.
Why should I purchase my Cisco equipment from BuyRouterSwitch.com? +
BuyRouterSwitch.com provides enterprise-grade networking solutions with a focus on verified, authentic hardware. By choosing us for your Cisco C9130AXI-B procurement, you benefit from our simplified secure ordering process and our deep expertise in sourcing networking equipment for IT professionals. We prioritize efficient fulfillment and reliable support, ensuring that your procurement experience is professional, secure, and meets the exact technical requirements of your network architecture.
