Mfr.part#:	C9117AXI-B-EDU Rating: 100% 5/5.0 1 Review

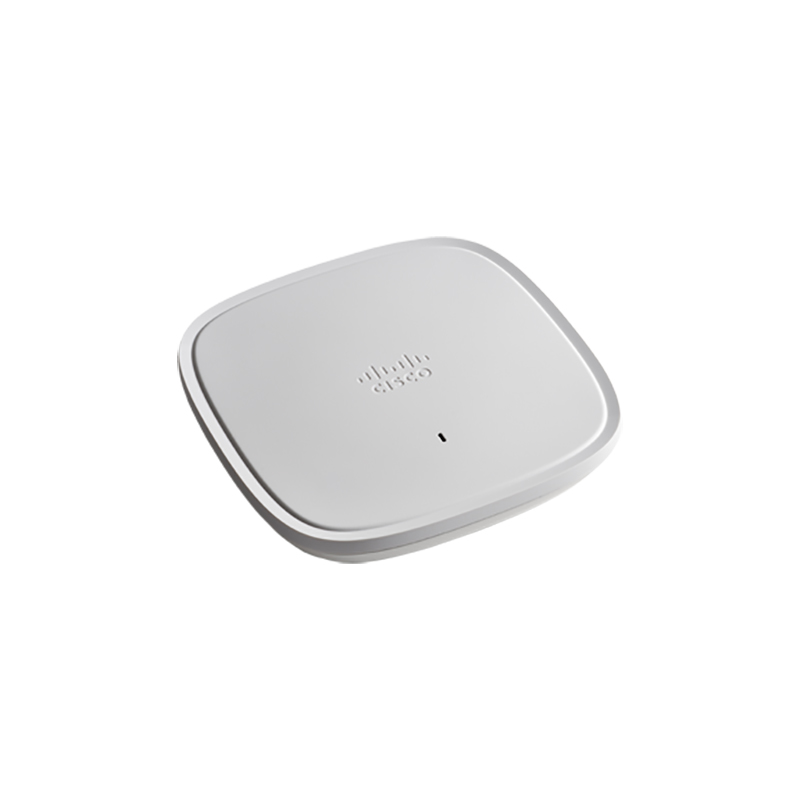

Name:	C9117AXI-B-EDU - Cisco Catalyst 9100 Series Wi-Fi 6 Access Points
Detail:	Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, B Domain C9117AXI-B-EDU
Availability:	In Stock
Condition:	New
Price:	$841.00

C9117AXI-B-EDU

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

resources

reviews

overview

Overview

C9117AXI-B-EDU Overview

Cisco Catalyst 9117AX. Maximum data transfer rate: 5000 Mbit/s, Ethernet LAN data rates: 100,1000,2500,5000 Mbit/s, Frequency band: 2.412 - 2.462, 5.18 - 5.32, 5.5 - 5.7, 5.745 - 5.865 GHz. Security algorithms: AES, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2. Placement: Wall, Product colour: White, Certification: IEC 60950-1 EN 60950-1 AS/NZS 60950.1 UL 60950-1 CAN/CSA-C22.2 No. 60950-1 UL 2043 Class III.... Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 6 dBi. Flash memory: 1024 MB, Internal memory: 2048 MB

Cisco® Catalyst® 9115 Series Wi-Fi 6 Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. C9117AXI-B-EDU is the Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, B Domain.

Product Details

Cisco AP 9117 series provides these features:

- 802.11ax (Wi-Fi 6)

- 802.11ac Wave 2 support

- OFDMA

- MU‑MIMO technology

- Target wake time

- Cisco Mobility Express

- Multigigabit Ethernet support

- Bluetooth 5.0

- Apple Features

Supported Platforms

Table 1 shows the supported platforms and software.

Supported wireless LAN controllers and Software	Recommended Model
Cisco 3500 Series Wireless Controllers	AIR-CT3504-K9
Cisco 5520 Series Wireless Controllers	AIR-CT5520-K9
Cisco 8540 Series Wireless Controllers	AIR-CT8540-K9 AIR-CT8540-1K-K9
Cisco 9800 series Wireless Controllers	C9800-40-K9 C9800-80-K9
Cisco Virtual Wireless Controller	/
Cisco Unified Wireless Network Software Release 8.9 or later	/
Cisco IOS ® XE Software Release 16.11 or later	/

Compare to Similar Items

Table 2 shows the comparison of Cisco AP 9117I series.

SKU	Description
C9117AXI-A	Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, A Domain
C9117AXI-B	Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, B Domain
C9117AXI-B-EDU	Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, B Domain
C9117AXI-D	Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, D Domain
C9117AXI-E	Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, E Domain
C9117AXI-K	Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, K Domain
C9117AXI-Q	Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, Q Domain
C9117AXI-S	Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, S Domain
C9117AXI-Z	Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, Z Domain

Get More Information

Do you have any question about the C9117AXI-B-EDU?

Cisco Catalyst 9117AXI Access Point, Indoor, Wi-Fi 6, B regulatory domain, 1.4 kg, K12

Wi-Fi 6 compatible

Three radios: 2.4 GHz (4x4), 5 GHz (8x8), and BLE

OFDMA and MU-MIMO

Multigigabit support

Internal antenna

2.4 GHz

5 GHz

Maximum data transfer rate: 5000 Mbit/s

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz

AES, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WPA, WPA2

Power over Ethernet (PoE)

Internal

Summary Description

Cisco Catalyst 9117AX, 5000 Mbit/s, 100,1000,2500,5000 Mbit/s, 2.412 - 2.462, 5.18 - 5.32, 5.5 - 5.7, 5.745 - 5.865 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE..., Multi User MIMO, A-MPDU, A-MSDU

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco C9117AXI-B-EDU?

Our lowest price for C9117AXI-B-EDU is $841.00 Buy Now

Explore even more affordable prices for Wireless and Cisco products.

specifications

Specification

C9117AXI-B-EDU Specification

C9117AXI-B-EDU Specification
Description	Cisco Catalyst 9117AX Access Point, Internal antenna; Wi-Fi 6; 8x8:8 MIMO, B Domain
Software	● Cisco Unified Wireless Network Software Release 8.9 or later ● Cisco IOS ® XE Software Release 16.11 or later
Supported wireless LAN controllers	● Cisco Catalyst 9800 Series Wireless Controllers ● Cisco 3500, 5520, and 8540 Series Wireless Controllers, and Cisco Virtual Wireless Controller
802.11n version 2.0 (and related) capabilities	● 8x8 MIMO with four spatial streams for 5-GHz band ● 4x4 MIMO with four spatial streams for 2.4-GHz band ● Maximal Ratio Combining (MRC) ● 20- and 40-MHz channels ● PHY data rates up to 600 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● Cyclic Shift Diversity (CSD) support
802.11ac	● 8x8 downlink MU-MIMO with eight spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, and 160-MHz channels ● PHY data rates up to 3.5 Gbps at 5 GHz ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● CSD support
802.11ax	● 8x8 MIMO with eight spatial streams for 5-GHz band ● 4x4 MIMO with four spatial streams for 2.4-GHz band ● Downlink OFDMA ● TWT ● MRC ● 802.11ax beamforming ● 20-, 40-, 80, and 160-MHz channels ● PHY data rates up to 5 Gbps at 5 GHz ● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) ● CSD support
Integrated antenna	● 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth ● 5 GHz, peak gain 6 dBi, internal antenna, omnidirectional in azimuth
Interfaces	● 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz ● Management console port (RJ-45) ● USB 2.0 with up to 3.75W (enabled via future software)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket and mounting features): 8.70 x 8.70 x 1.94 in. (22 x 22 x 4.93 cm) ● Access point (without mounting bracket): 8.70 x 8.70 x 2.19 in. (22 x 22 x 5.56 cm)
Weight	● 3.02 lb (1.4 kg)
Input power requirements	● 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®) ● Cisco power injector, AIR-PWRINJ6= ● 802.3af PoE ● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 2.5 Gbps; in addition, the USB port will be off.
Environmental	● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 122°F (0° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft.
System memory	● 2048 MB DRAM ● 1024 MB flash
DFS	● 802.11 dynamic frequency selection (DFS)
Warranty	Limited lifetime hardware warranty
Available transmit power settings	2.4 GHz ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1 dBm (0.78 mW) ● -4 dBm (0.4 mW) ● -6 dBm (0.25 mW) 5 GHz ● 26 dBm (400 mW) ● 23 dBm (200 mW) ● 20 dBm (100 mW) ● 17 dBm (50 mW) ● 14 dBm (25 mW) ● 11 dBm (12.5 mW) ● 8 dBm (6.25 mW) ● 5 dBm (3.13 mW) ● 2 dBm (1.56 mW) ● -1 dBm (0.78 mW) ● -4 dBm (0.4 mW)
Frequency band and 20-MHz operating channels	B (B regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels ● 5.745 to 5.865 GHz; 7 channels
