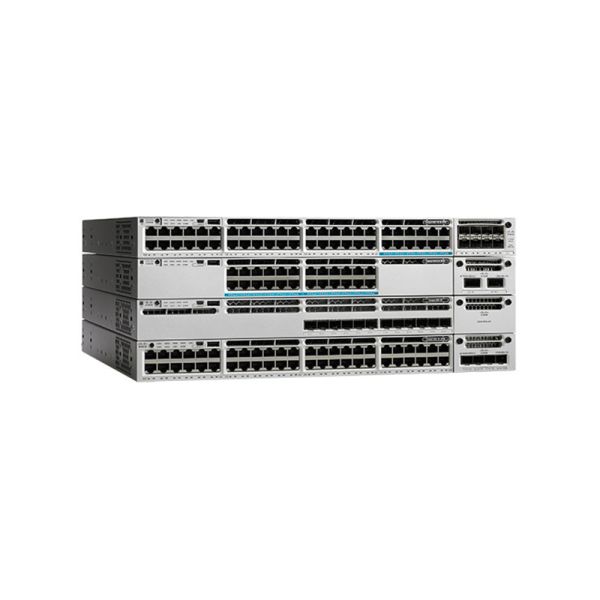

Name: C1-WSC3850-48XS-FS - Cisco ONE Catalyst 3850 Series Platform
Detail:
Cisco ONE Catalyst 3850 48 Port 10G Fiber Switch IP Base C1-WSC3850-48XS-FS
Availability: In Stock
Condition: New

C1-WSC3850-48XS-FS

Cisco ONE Catalyst 3850 48 Port 10G Fiber Switch IP Base C1-WSC3850-48XS-FS
Call for Price
Request Bulk Quote
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
Payment:
  • Pay by Visa.
  • Pay with your Discover Card.
  • Pay with your America Express.
  • Pay with your JCB.
  • Pay with your Wire Transfer.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 30 Day Return Policy
Expert Team Support

Laila Jones

Technical Customer Support

  • Expert Team Support CHAT
  • Expert Team Support EMAIL
  • Expert Team Support WHATSAPP
overview
specifications
reviews
overview
Overview

C1-WSC3850-48XS-FS Overview

Cisco ONE Catalyst 3850 48 Port 10G Fiber Switch IP Base

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco C1-WSC3850-48XS-FS?

Click hereto find the lowest discounted price for C1-WSC3850-48XS-FS.

Explore even more affordable prices for Switches and Cisco products.

specifications
Specification

C1-WSC3850-48XS-FS Specification

C1-WSC3850-48XS-FS Specification

General
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeDesktop, rack-mountable 1U
Subtype10 Gigabit Ethernet
Ports48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ (uplink)
PerformanceSwitching capacity: 1280 Gbps
CapacityIPv4 routes: 24000 ¦ NetFlow entries: 96000 ¦ Virtual interfaces (VLANs): 4000 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size32000 entries
Jumbo Frame Support9198 bytes
Routing ProtocolOSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MLDv2, MLD
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication MethodKerberos, Secure Shell (SSH), RADIUS, TACACS+
FeaturesDHCP support, ARP support, Syslog support, PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, Virtual Route Forwarding-Lite (VRF-Lite), front to back airflow, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, radio resource management (RRM), ARP inspection, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Control plane protection (CoPP)
Compliant StandardsIEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM8 GB
Flash Memory8 GB
Status IndicatorsPort transmission speed, port duplex mode, power, system, active, status
Expansion / Connectivity
Interfaces48 x 10GBase-X SFP+ ¦ 4 x 40Gbit LAN QSFP+ uplink ¦ 1 x USB Type A ¦ 1 x management (mini-USB) Type B ¦ 1 x console RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x network stack device
Power
Power DeviceInternal power supply
Installed Qty1 (installed) / 2 (max)
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Power Provided750 Watt
Voltage RequiredAC 120/230 V (50 - 60 Hz)
FeaturesRear-to-front airflow
Miscellaneous
MTBF286,900 hours
Compliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, KCC, RoHS, FCC Part 15 A, AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, EN 300386, AS/NZS CISPR 22, CNS 13438, EN 55022 Class A
Software / System Requirements
Software IncludedCisco IOS IP Base
Dimensions & Weight
Width17.5 in
Depth20.1 in
Height1.8 in
Weight16.42 lbs
Manufacturer Warranty
Service & SupportLimited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Environmental Parameters
Min Operating Temperature23 °F
Max Operating Temperature113 °F
Humidity Range Operating10 - 95% (non-condensing)
Min Storage Temperature-40 °F
Max Storage Temperature158 °F
