Mfr.part#:	C1-WSC3850-24XUL Rating: 100% 5/5.0 4 Reviews

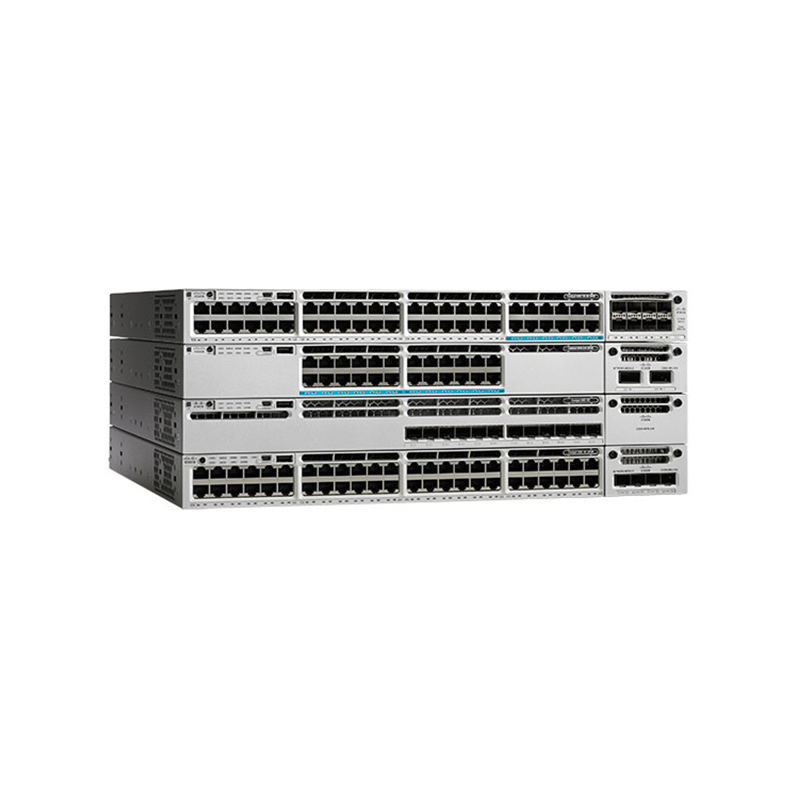

Name:	C1-WSC3850-24XUL - Cisco ONE Catalyst 3850 Series Platform
Detail:	Cisco ONE Catalyst 3850 24 mGig Port UPoE LAN Base C1-WSC3850-24XUL
Availability:	In Stock
Condition:	New

C1-WSC3850-24XUL

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

C1-WSC3850-24XUL Overview

Cisco Catalyst C1-WSC3850-24XUL. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 32000 entries. Networking standards: IEEE 802.11ac, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Rack mounting

Cisco ONE Catalyst 3850 24 mGig Port UPoE LAN Base

Cisco ONE, Catalyst 3850, Stackable, 24 Port, 10Gbps, UPOE, 1100W, 1 RU

Managed SNMP v1, SNMP v2c, SNMP v3

Quality of Service (QoS) support

Basic switching RJ-45 Ethernet ports quantity: 24

MAC address table: 32000 entries

Access Control List (ACL)

Rack mounting Stackable

Summary Description

Cisco Catalyst C1-WSC3850-24XUL, Managed, 10G Ethernet (100/1000/10000), Rack mounting

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco C1-WSC3850-24XUL?

Click hereto find the lowest discounted price for C1-WSC3850-24XUL.

Explore even more affordable prices for Switches and Cisco products.

specifications

Specification

C1-WSC3850-24XUL Specification

C1-WSC3850-24XUL Specification
General
Device Type	Switch - 24 ports - managed - stackable
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE)	UPOE
PoE Budget	580 W
Performance	Switching capacity: 92 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding performance (64-byte packet size): 460 Mpps
Capacity	IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Virtual interfaces (VLANs): 4000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	IS-IS, RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, policy-based routing (PBR), RIPng, MLDv2, MLD
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	DHCP support, ARP support, Syslog support, PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, 802.1x authentication, radio resource management (RRM), ARP inspection, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Control plane protection (CoPP)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM	4 GB
Flash Memory	2 GB
Status Indicators	Port transmission speed, port duplex mode, power, system, active, status, PoE
Expansion / Connectivity
Interfaces	12 x 1000Base-T RJ-45 UPOE - 60 W ¦ 12 x 1/2.5/5/10GBase-T RJ-45 UPOE - 60 W ¦ 1 x USB Type A ¦ 1 x management (mini-USB) Type B ¦ 1 x console RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x network stack device
Expansion Slots	1 (total) / 1 (free) x expansion slot
Power
Power Device	Internal power supply
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Power Provided	1100 Watt
Voltage Required	AC 120/230 V (50 - 60 Hz)
Miscellaneous
MTBF	203,150 hours
Compliant Standards	CISPR 22 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, KCC, RoHS, FCC Part 15 A, AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, EN 300386, AS/NZS CISPR 22, CNS 13438, EN 55022 Class A
Software / System Requirements
Software Included	Cisco IOS LAN Base
Width	17.5 in
Depth	19.2 in
Height	1.8 in
Weight	17.64 lbs
