Mfr.part#:	X2-10GB-SR

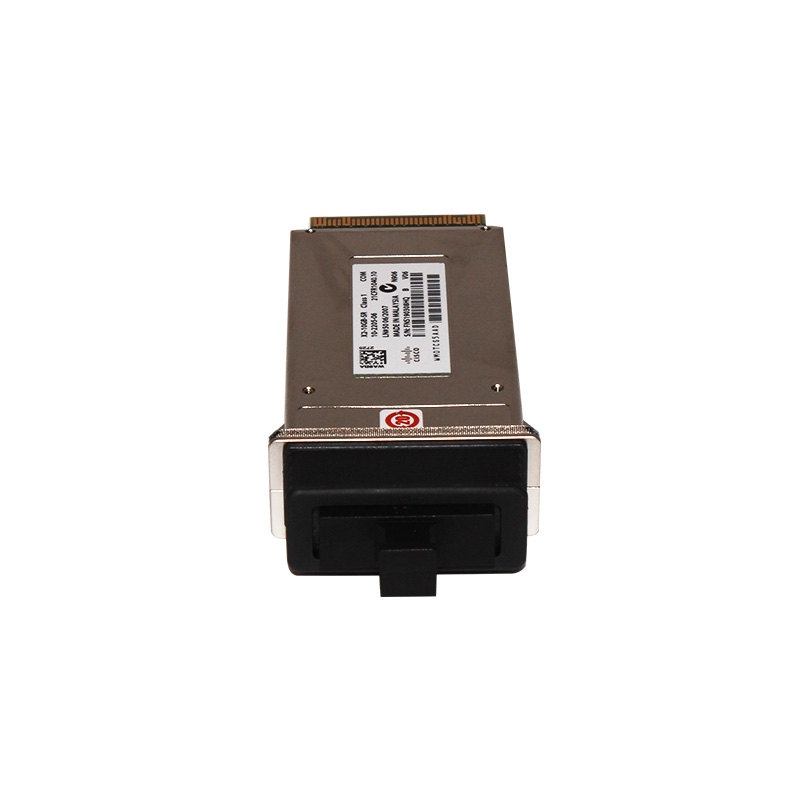

Name:	X2-10GB-SR 10GBASE-SR X2 Module
Detail:	10GBASE-SR X2 Module X2-10GB-SR
Availability:	In Stock
Condition:	Refurbished
GTIN:	4053162231139 4053162231139
Price:	$50.74

X2-10GB-SR

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

X2-10GB-SR Overview

Cisco 10GBASE-SR X2 Module. Maximum data transfer rate: 10000 Mbit/s, Cabling technology: 10000BASE-SR. Connectivity technology: Wired. Maximum transfer distance: 300 m, Wavelength: 850 nm. Compliance industry standards: IEEE 802.3ae. Power consumption (typical): 4 W

The Cisco 10GBASE-SR Module supports a link length of 26m on standard FDDI grade MMF. Using 2000 MHz*km MMF (OM3), up to 300m link lengths are possible. Using 4700 MHz*km MMF (OM4), up to 400m link lengths are possible.

Quick Specs

Table 1 shows the Quick Specs.

Cisco X2

Wavelength (nm)

Cable Type

Core Size (Microns)

Modal Bandwidth (MHz*km)

Cable Distance

Cisco X2-10GB-SR

850

MMF

62.5

50.0

160 (FDDI-grade)

200 (OM1)

400

500 (OM2)

2000 (OM3)

4700 (OM4)

26m

33m

66m

82m

300m

400m

Table 2 Optical Transmit and Receive Specifications.

Product	Type	Transmit Power (dBm)		Receive Power (dBm)		Transmit and Receive Wavelength Range (nm)
		Maximum	Minimum	Maximum	Minimum	Transmit	Receive
Cisco X2-10GB-SR	10GBASE-SR 850 nm MMF	-1	-7.3	-1.0	-9.9	840 to 860

Get More Information

Do you have any question about the X2-10GB-SR?

Summary Description

Cisco 10GBASE-SR X2 Module, 10000 Mbit/s, 10000BASE-SR, Wired, 300 m, 850 nm, IEEE 802.3ae

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco X2-10GB-SR?

Our lowest price for X2-10GB-SR is $50.74 Buy Now

Explore even more affordable prices for Cisco and Cisco products.

specifications

Specification

X2-10GB-SR Specification

X2-10GB-SR Specification
General
Device Type	X2 transceiver module
Form Factor	Plug-in module
Networking
Connectivity Technology	Wired
Cabling Type	10GBase-SR
Data Link Protocol	10 GigE
Data Transfer Rate	10 Gbps
Optical Wave Length	850 nm
Max Transfer Distance	984 ft
Compliant Standards	IEEE 802.3ae
Expansion / Connectivity
Interfaces	1 x Ethernet 10GBase-LR - SC multi-mode x 2
Compatible Slots	1 x X2
Dimensions & Weight
Width	1.4 in
Depth	3.6 in
Height	0.5 in
Manufacturer Warranty
Service & Support	Limited warranty - 90 days
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Compatibility Information
Designed For	Cisco 8-Port 10 Gigabit Ethernet Module with DFC3C, 8-Port 10 Gigabit Ethernet Module with DFC3CXL ¦ Cisco Catalyst 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F, 3560E-48TD, 3560E-48TD-SD, 3750E-24PD, 3750E-24TD, 3750E-48PD, 3750E-48PD-F, 3750E-48TD, 4500 Series Supervisor Engine V-10GE, 4948 10 Gigabit Ethernet Switch ¦ Cisco ME 4924-10GE ¦ Cisco Supervisor Engine II-Plus-10GE
