Mfr.part#:	X2-10GB-LRM

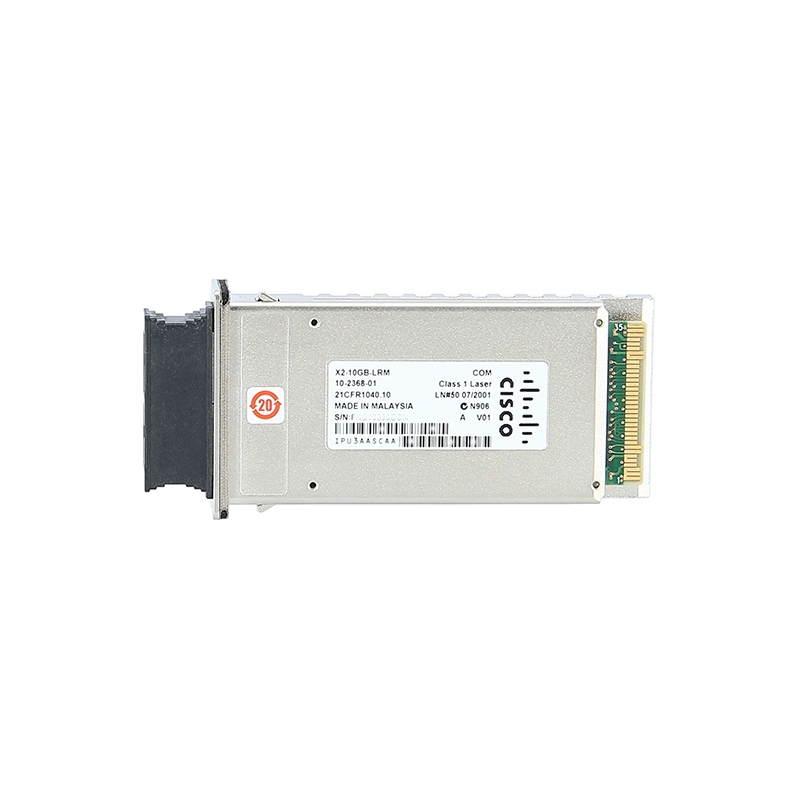

Name:	X2-10GB-LRM 10GBASE-LRM X2 Module
Detail:	10GBASE-LRM X2 Module X2-10GB-LRM
Availability:	In Stock
Condition:	New
Price:	$52.44

X2-10GB-LRM

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

X2-10GB-LRM Overview

Cisco 10GBASE-LRM X2 Module. Maximum data transfer rate: 1000 Mbit/s. Connectivity technology: Wired. Maximum transfer distance: 220 m, Wavelength: 1310 nm. Compliance industry standards: IEEE 802.3aq. Weight: 300 g

The Cisco 10GBASE-LRM Module supports link lengths of 220m on standard Fiber Distributed Data Interface (FDDI) grade multimode fiber (MMF). To ensure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3.

Quick Specs

Table 1 shows the Quick Specs.

Cisco X2

Wavelength (nm)

Cable Type

Core Size (Microns)

Modal Bandwidth (MHz*km)

Cable Distance

Cisco X2-10GB-LRM

1310

MMF

62.5

50.0

500

400

500

220m

100m

220m

SMF

G.652

none

300m

Table 2 Optical Transmit and Receive Specifications.

Product

Type

Transmit Power (dBm)

Receive Power (dBm)

Transmit and Receive Wavelength Range (nm)

Maximum

Minimum

Maximum

Minimum

Transmit

Receive

Cisco X2-10GB-LRM

10GBASE-LRM 1310 nm MMF and SMF

0.5

-6.5

0.5

-8.4 (in average)

and -6.5 (in OMA)

1260 to 1355

Get More Information

Do you have any question about the X2-10GB-LRM?

Summary Description

Cisco 10GBASE-LRM X2 Module, 1000 Mbit/s, Wired, 220 m, 1310 nm, IEEE 802.3aq, 300 g

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco X2-10GB-LRM?

Our lowest price for X2-10GB-LRM is $52.44 Buy Now

Explore even more affordable prices for Cisco and Cisco products.

specifications

Specification

X2-10GB-LRM Specification

X2-10GB-LRM Specification
General
Device Type	X2 transceiver module
Form Factor	Plug-in module
Networking
Connectivity Technology	Wired
Cabling Type	10GBase-LRM
Data Link Protocol	10 GigE
Data Transfer Rate	10 Gbps
Optical Wave Length	1310 nm
Max Transfer Distance	722 ft
Compliant Standards	IEEE 802.3ae
Expansion / Connectivity
Interfaces	1 x Ethernet 10GBase-LRM - SC multi-mode x 2
Compatible Slots	1 x X2
Dimensions & Weight
Width	1.4 in
Depth	3.6 in
Height	0.5 in
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Compatibility Information
Designed For	Cisco Catalyst 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F, 3560E-48TD, 3560E-48TD-SD
