Mfr.part#:	X2-10GB-LR

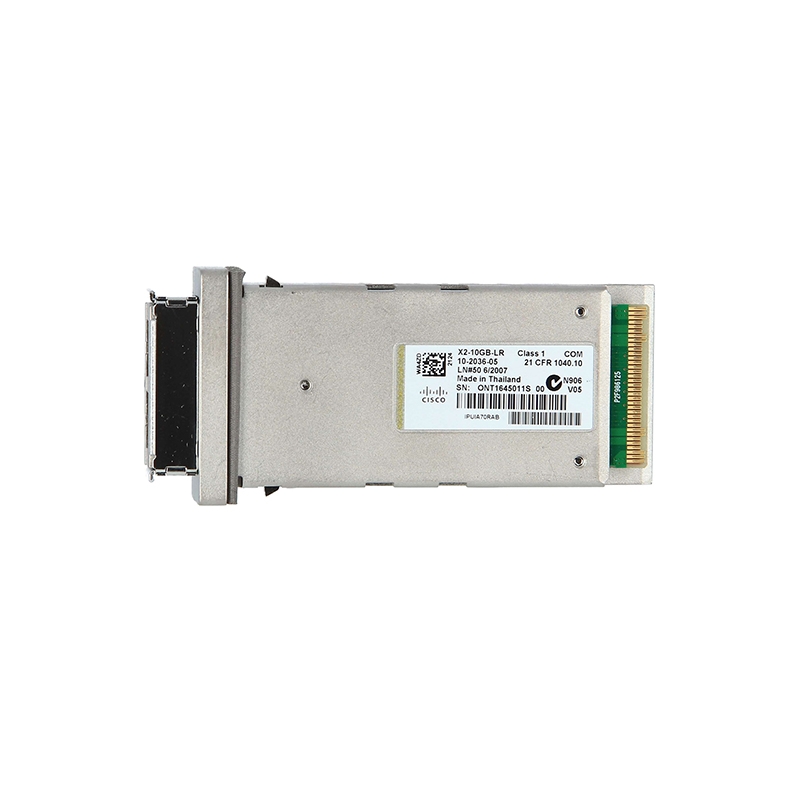

Name:	X2-10GB-LR 10GBASE-LR X2 Module
Detail:	10GBASE-LR X2 Module X2-10GB-LR
Availability:	In Stock
Condition:	New
Price:	$55.82

X2-10GB-LR

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

X2-10GB-LR Overview

Cisco 10GBASE-LR X2 Module for SMF. Maximum data transfer rate: 10000 Mbit/s, Cabling technology: 10GBASE-LR. Connectivity technology: Wired. Maximum transfer distance: 10000 m, Wavelength: 1310 nm. Compliance industry standards: IEEE 802.3ae. Weight: 300 g

The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652).

Quick Specs

Table 1 shows the Quick Specs.

Cisco X2	Wavelength (nm)	Cable Type	Core Size (Microns)	*Modal Bandwidth (MHzkm)**	Cable Distance
Cisco X2-10GB-LR	1310	SMF	G.652	none	10 km

Table 2 Optical Transmit and Receive Specifications.

Product	Type	Transmit Power (dBm)^*		Receive Power (dBm)^*		Transmit and Receive Wavelength Range (nm)
Product	Type	Maximum	Minimum	Maximum	Minimum	Transmit	Receive
Cisco X2-10GB-LR	10GBASE-LR 1310 nm SMF	0.5	-8.2	0.5	-14.4	1260 to 1355	1260 to 1565

Get More Information

Do you have any question about the X2-10GB-LR?

Summary Description

Cisco 10GBASE-LR X2 Module for SMF, 10000 Mbit/s, 10GBASE-LR, Wired, 10000 m, 1310 nm, IEEE 802.3ae

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco X2-10GB-LR?

Our lowest price for X2-10GB-LR is $55.82 Buy Now

Explore even more affordable prices for Networking Accessories and Cisco products.

specifications

Specification

X2-10GB-LR Specification

X2-10GB-LR Specification
General
Device Type	X2 transceiver module
Form Factor	Plug-in module
Networking
Connectivity Technology	Wired
Cabling Type	10GBase-LR
Data Link Protocol	10 GigE
Data Transfer Rate	10 Gbps
Optical Wave Length	1310 nm
Max Transfer Distance	6.2 miles
Compliant Standards	IEEE 802.3ae
Expansion / Connectivity
Interfaces	1 x Ethernet 10GBase-LR - SC/PC single-mode x 2
Compatible Slots	1 x X2
Miscellaneous
Compliant Standards	Laser Class 1, IEC 60825-1
Dimensions & Weight
Width	1.4 in
Depth	3.6 in
Height	0.5 in
Weight	10.58 oz
Manufacturer Warranty
Service & Support	Limited warranty - 90 days
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	158 °F
Compatibility Information
Designed For	Cisco 8-Port 10 Gigabit Ethernet Module with DFC3C, 8-Port 10 Gigabit Ethernet Module with DFC3CXL ¦ Cisco Catalyst 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F, 3560E-48TD, 3560E-48TD-SD, 3750E-24PD, 3750E-24TD, 3750E-48PD, 3750E-48PD-F, 3750E-48TD, 4500 Series Supervisor Engine V-10GE, 4948 10 Gigabit Ethernet Switch ¦ Cisco ME 4924-10GE ¦ Cisco Supervisor Engine II-Plus-10GE
