WS-C3850-24XU-E Catalyst 3850 Switch
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
WS-C3850-24XU-E
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com
overview
specifications
faqs
reviews

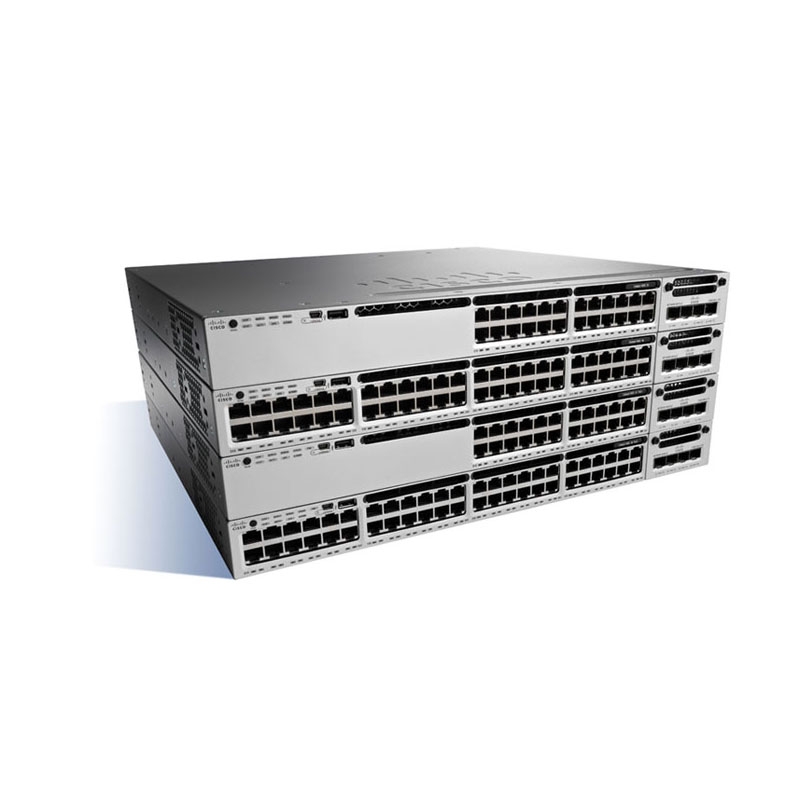

WS-C3850-24XU-E Overview
Stackable 24 100M/1G/2.5G/5G/10G UPoE ports, 1 network module slot, 1100 W AC power supply 1RU WS-C3850-24XU-E
Overview
WS-C3850-24XU-E Overview
Cisco Catalyst WS-C3850-24XU-E, Managed, 10G Ethernet (100/1000/10000), Rack mounting
Cisco WS-C3850-24XU-E supports stackable 24 100M/1G/2.5G/5G/10G UPoE ports, 1 network module slot, 1100 W AC power supply and 1RU chassis. Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise®-480 technology.
Quick Specs
Product Code | WS-C3850-24XU-E |
Enclosure Type | 1 RU |
Feature Set | IP Services |
Network SFP uplink module selection | |
Ports | 24 UPOE (100Mbps/1/2.5/5/10 Gbps) |
Available PoE power | 580W |
Default AC power supply | 1100WAC |
Maximum stacking number | 9 |
Stack bandwidth | 480 Gpbs |
RAM | 4 GB |
Flash Memory | 2 GB |
Number of AP per switch/stack | 100 |
Number of wireless clients per switch/stack | 2000 |
Dimensions | 4.45 cm x 44.5 cm x 48.8 cm |
The Modules
Models | Description |
Cisco 3850 Series 4 x 1GE Network Module | |
Cisco 3850 Series 2 x 10GE Network Module | |
Cisco 3850 Series Blank Network Module | |
Cisco 3850 Series 4 x 10GE Network Module | |
Cisco 3850 Series 8 x 10GE Network Module | |
Cisco 3850 Series 2 x 40GE Network Module | |
Cisco 3850 Series Secondary Power Supply 1100W AC Config 1 Secondary Power Supply |
Support and Resources
Switch to Something New
Why Upgrade to Catalyst 9300? | See the Catalyst 9300 Series
Catalyst 3850, Stackable, 24 Port, 10Gbps, UPOE, 1100W, 1 RU, IP Services feature set
- Managed SNMP v1, SNMP v2c, SNMP v3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 32000 entries
- Access Control List (ACL)
- Rack mounting Stackable
Summary Description
Cisco Catalyst WS-C3850-24XU-E, Managed, 10G Ethernet (100/1000/10000), Rack mounting
Need help with WS-C3850-24XU-E?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
WS-C3850-24XU-E Specification
WS-C3850-24XU-E Specification | |
| Capacity | |
| Type | Virtual interfaces (VLANs) |
| Value | 4000 |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 19.2 in |
| Height | 1.8 in |
| Weight | 17.64 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Flash Memory | |
| Installed Size | 2 GB |
| Header | |
| Compatibility | PC |
| Manufacturer | Cisco Systems |
| Packaged Quantity | 1 |
| Product Line | Cisco Catalyst |
| Model | 3850-24XU-E |
| Brand | Cisco |
| Interface Provided | |
| Qty | 2 |
| Type | Management (mini-USB) |
| Connector Type | Type B |
| Comments | Management |
| Miscellaneous | |
| Compliant Standards | AS/NZS 3548 Class A, AS/NZS CISPR 22, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CNS 13438, EN 300386, EN 55022 Class A, EN 60950-1, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS 5/6, UL 60950-1, UL 60950-1 Second Edition, VCCI Class A |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| MTBF | 203,150 hours |
| Height (Rack Units) | 1 |
| Color Category | Gray |
| Networking | |
| Type | Switch |
| Connectivity Technology | Wired |
| Remote Management Protocol | CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Status Indicators | Active, PoE, Port duplex mode, Port transmission speed, Power, Status, System |
| Ports Qty | 24 |
| Features | 802.1x authentication, Access Control List (ACL) support, ARP inspection, ARP support, Bridge protocol data unit (BPDU), Cisco StackPower technology, Cisco StackWise-480 technology, Control plane protection (CoPP), DHCP snooping, DHCP support, Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), Multiple Spanning Tree Protocol (MSTP) support, PIM snooping, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Radio resource management (RRM), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), SSH support, Syslog support, Trivial File Transfer Protocol (TFTP) support, Uni-Directional Link Detection (UDLD), Virtual Route Forwarding-Lite (VRF-Lite), Virtual Routing and Forwarding (VRF), VLAN Trunking Protocol (VTP), Weighted Tail Drop (WTD) |
| Routing Protocol | BGP-4, EIGRP, EIGRP for IPv6, IGMP, IGMPv2, IGMPv3, IS-IS, MLD, MLDv2, OSPF, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng |
| MAC Address Table Size | 32000 entries |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Power Over Ethernet (PoE) | UPOE |
| Advanced Switching | Layer 3 |
| Manageable | Yes |
| Form Factor | Desktop, Rack-mountable |
| Jumbo Frame Support | 9198 bytes |
| Subtype | Gigabit Ethernet |
| PoE Budget | 580 W |
| Performance | |
| Type | Switching capacity |
| Value | 92 Gbps |
| Ports | |
| Qty | 24 |
| Type | 10/100/1000 (UPOE) |
| Power Device | |
| Frequency Required | 50 - 60 Hz |
| Power Provided | 1100 Watt |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Type | Internal power supply |
| RAM | |
| Installed Size | 4 GB |
| Service | |
| Support Details Type | Technical support |
| Support Details Service Included | Consulting |
| Support Details Full Contract Period | 90 days |
| Service & Support | |
| Type | Limited lifetime warranty |
| Service & Support Details | |
| Response Time | Next business day |
| Slot Provided | |
| Type | Expansion slot |
| Total Qty | 1 |
| Free Qty | 1 |
| Software | |
| Type | Cisco IOS IP Services |
Frequently Asked Questions
What are the primary uplink options for the Cisco WS-C3850-24XU-E? +
This switch features a single network module slot designed for flexibility in uplink connectivity. Depending on your current infrastructure requirements, you can populate this slot with various Cisco Catalyst 3850 series network modules, supporting multiple SFP or SFP+ configurations to accommodate 10GbE or 1GbE uplinks as needed for your specific deployment.
Does the WS-C3850-24XU-E support UPoE for power-hungry endpoints? +
Yes, this model is equipped with 24 Universal Power over Ethernet (UPoE) ports. It provides up to 60W of power per port, making it an ideal solution for high-density environments utilizing advanced endpoints like Cisco TelePresence units, high-performance Wi-Fi 6 access points, and sophisticated pan-tilt-zoom security cameras that exceed standard PoE+ power delivery constraints.
Can I integrate the WS-C3850-24XU-E into an existing Cisco StackWise-480 stack? +
Absolutely. This unit is fully compatible with StackWise-480 technology, allowing you to create a high-speed, unified logical switch. By stacking this 24-port multi-gigabit switch with other members of the Catalyst 3850 family, you can scale your bandwidth and port density significantly while maintaining centralized management across the stack.
What is the benefit of the multi-gigabit port capability on this switch? +
The multi-gigabit ports on the WS-C3850-24XU-E allow you to run 100M, 1G, 2.5G, 5G, or 10G speeds over existing Cat5e or Cat6 cabling. This eliminates the need for expensive forklift upgrades to your physical copper plant while still supporting the high throughput demands of modern wireless access points and high-speed enterprise devices.
What license level comes pre-installed on the WS-C3850-24XU-E? +
The 'E' in the product SKU indicates that this switch comes with the Cisco IP Services software license. This provides advanced Layer 3 routing capabilities, including OSPF, EIGRP, BGP, and PBR. This license level is designed for enterprise-grade environments that require robust routing protocols, policy-based access control, and sophisticated network segmentation features out of the box.
How much power does the included 1100W AC power supply provide for PoE? +
The included 1100W AC power supply is sized to support the full data-forwarding capacity of the switch while providing a substantial power budget for UPoE-enabled devices. It ensures high availability and reliable power delivery, though if you require full redundancy or higher power budgeting for all 24 ports at maximum UPoE draw, you may consider adding a secondary modular power supply.
Is the WS-C3850-24XU-E suitable for demanding 10GBASE-T deployments? +
Yes, this switch is specifically engineered for high-performance 10GBASE-T environments. It provides line-rate performance across its 24 multi-gigabit ports, ensuring that your enterprise network can handle the throughput requirements of modern data centers, high-speed storage, and high-density wireless backhaul without experiencing bottlenecks at the access or distribution layer.
What management protocols are supported on this Cisco 3850 Series switch? +
This switch supports a wide array of management protocols including SNMP, CLI, and Cisco DNA Center. It is fully compatible with industry-standard management platforms, allowing for granular visibility, automated provisioning, and comprehensive monitoring. Whether you prefer a traditional command-line interface or a software-defined networking approach, this switch provides the necessary hooks for effective oversight.
How can I request a bulk quote for the WS-C3850-24XU-E? +
For large-scale projects requiring multiple units of the WS-C3850-24XU-E, simply contact our sales team directly through BuyRouterSwitch.com. We specialize in assisting enterprise IT procurement teams by providing competitive bulk pricing and tailored volume quotes that align with your specific budgetary and deployment schedules. Reach out today to discuss your project requirements with our specialists.
Why should I choose BuyRouterSwitch.com for my Cisco hardware procurement? +
Buying from BuyRouterSwitch.com guarantees you receive authentic Cisco networking equipment from a trusted source. We focus on streamlining the procurement process for IT professionals, offering a secure ordering environment and efficient logistics for critical infrastructure hardware. Our commitment to the IT community is centered on providing reliable, high-quality hardware to ensure your network deployment remains stable, scalable, and secure.
