WS-C3850-12XS-E Catalyst 3850 Switch SFP+
-
$335.40 In Stock - Ships Worldwide Order by 2:00 PM ET for Overnight ShippingWas: $390.00You Save: $54.60 14% OFF
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
WS-C3850-12XS-E
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com
overview
specifications
faqs
reviews

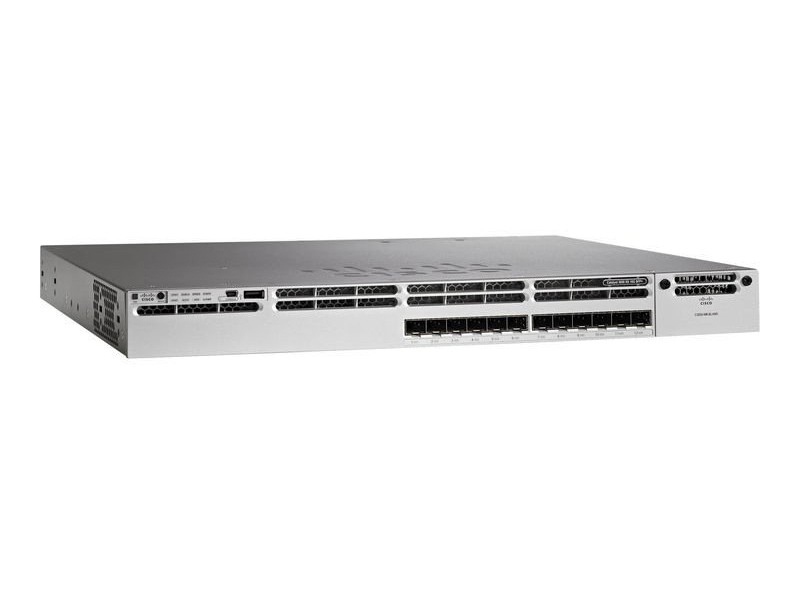

WS-C3850-12XS-E Overview
Cisco Catalyst C3850-12XS-E Switch Layer 3 - 12 SFP/SFP+ - 1G/10G - IP Services- Wireless controller - managed- stackable WS-C3850-12XS-E
Overview
WS-C3850-12XS-E Overview
Cisco Catalyst WS-C3850-12XS-E, Managed, Rack mounting
WS-C3850-12XS-E switch provides 12 ports 10Gbps SFP+ connection with upgradeable IP services image and build in wireless controller provide fully convergence between wired and wireless on a single platform. It only supports 4 × 10 Gigabit Ethernet network module uplinks option.
Quick Specs
Product Code | WS-C3850-12XS-E |
Enclosure Type | 1 RU |
Feature Set | IP Service |
Network SFP uplink module selection | C3850-NM-4-10G |
Ports | 12 x 10/100/1000 10G SFP+ Optical ports |
Maximum stacking number | 9 |
Stack bandwidth | 480 Gbps |
Forwarding Performance | 227.28Mpps |
Switching Capacity | 320Gbps |
RAM | 4 GB |
Flash Memory | 4 GB |
Dimensions | 44.5 cm x 45.0 cm x 4.45 cm |
Product Details
Figure 2 shows the front panel of the WS-C3850-12XS-E.
Note：
① | UID (blue beacon) | ⑤ | USB Type A storage port |
② | Mode button | ⑥ | 12 ports of 10G SFP+ |
③ | Status LEDs | ⑦ | Network SFP uplink module slot |
④ | USB mini-Type B (console) port |
· The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.
Figure 3 shows the back panel of the WS-C3850-12XS-E switch.
Note：
① | Ground connector | ⑤ | StackWise port connector |
② | CONSOLE (RJ-45 console port) | ⑥ | StackPower connector |
③ | Fan module | ⑦ | Power supply modules |
④ | MGMT port |
Figure 4 shows the StackWise-480 and StackPower connectors.
IP service feature set can only stack with other Catalyst 3850 Series IP service switches. Power stack capacity is supported by Cisco Stackpower technology to provide power redundancy among stacking members.
The Modules and Accessories
Models | Description |
C3850-NM-4-10G | Cisco 3850 Series 4 x 10GE Network Module |
PWR-C1-350WAC | Cisco 3850 Series Power Supply 350W AC |
PWR-C1-350WAC/2 | Cisco 3850 Series Secondary Power Supply 350W AC Config 1 Secondary Power Supply |
STACK-T1-50CM= | Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch |
STACK-T1-1M= | Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch |
Compare to Similar Items
Models | WS-C3850-12XS-E | WS-C3850-12S-E |
Feature Set | IP Service | IP Service |
Ports | 12 ports of 10G SFP+ Ethernet fiber connection with Flexible Netflow feature | 12 ports of SFP Ethernet fiber connection with Flexible Netflow feature |
Network SFP uplink module selection | C3850-NM-4-10G | C3850-NM-4-1G C3850-NM-2-10G |
Switch to Something New
Why Upgrade to Catalyst 9300? | See the Catalyst 9300 Series
Catalyst 3850, Stackable, 12 Port, SFP+, 350W, 1 RU, IP Services feature set
- Managed SNMP v1, SNMP v2c, SNMP v3
- Quality of Service (QoS) support
- MAC address table: 32000 entries
- Access Control List (ACL)
- Rack mounting Stackable
Summary Description
Cisco Catalyst WS-C3850-12XS-E, Managed, Rack mounting
Need help with WS-C3850-12XS-E?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
WS-C3850-12XS-E Specification
WS-C3850-12XS-E Specification | |
model info: | WS-C3850-12XS-E |
enclosure type | Rack-mountable - 1U |
Ports | 12 x SFP+ ports |
Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
Available PoE Power | None |
Switching Capacity | 320Gbps |
Maximum stacking number | 9 |
Stack Bandwidth | 480Gbps |
Forwarding Performance | 227.28Mpps |
FNF entries | 48,000 flows |
Maximum VLANs IDs | 1,000 |
MAC Address Table Size | 32K |
CPU | Multicore CPU |
RAM | 4 G |
Flash Memory | 4 G |
Wireless | |
Number of AP per switch/stack | 100 |
Number of wireless clients per switch/stack | 2000 |
Total number of WLANs per switch | 64 |
Wireless bandwidth per switch | up to 20Gbps |
Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
Expansion / Connectivity | |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
Network Modules Selection | ● C3850-NM-4-1G: 4 x 1G uplinks network module |
Stacking cable | ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length |
Stack Power Cable (recommended) | ●CAB-SPWR-30CM stack power cable with a 30CM length |
Power supply | PWR-C1-350WAC |
Power Device | Power supply - redundant - plug-in module |
Power Redundancy | optional |
Voltage range (Auto) | 100V-240V |
Power Consumption of standalone(in Watts) | 109.75 (Max) |
Miscellaneous | |
Width | 17.5 Inches (44.5 cm) |
Depth | 17.7 Inches (45.0 cm) |
Height | 1.75 Inches (4.45 cm) |
Weight | 12.9 Pounds (5.8 Kg) |
Rack Mounting Kit | optional |
MTBF in hours | 371,440 |
Compliant Standards | ● IEEE 802.1D Spanning Tree Protoco ● IEEE 802.3 10BASE-T |
System software / license | |
System software | IOS IP Services |
EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
Access Point Licenses | ●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) |
Features | ●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow |
Advanced Network security | ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) |
Management | ●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB |
Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
Environmental Ranges | |
With AC power supply Operating environment and altitude | |
Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
With DC power supply Operating environment and altitude (NEBS) | |
Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
Operating altitude | Up to 13,000 Feet (Up to 4000 Meters) |
Storage altitude | Up to 15,000 Feet (Up to 4573 Meters) |
Operating relative humidity | 10% to 95% noncondensing |
Storage relative humidity | 10% to 95% noncondensing |
Frequently Asked Questions
What are the primary port capabilities of the Cisco WS-C3850-12XS-E? +
The WS-C3850-12XS-E features 12 fixed SFP/SFP+ ports, providing flexible 1G and 10G connectivity. These high-speed ports are ideal for high-density fiber aggregation or data center access deployments, ensuring low-latency performance for bandwidth-intensive applications in a compact 1U form factor.
Does the WS-C3850-12XS-E support integrated wireless controller functionality? +
Yes, this model features built-in wireless controller capabilities. It allows the switch to act as a mobility controller, providing centralized management and control for your wireless access points, which simplifies network architecture and enhances visibility across both wired and wireless domains.
What is the significance of the IP Services feature set on this Catalyst 3850? +
The IP Services license provides a robust suite of advanced Layer 3 routing protocols, including OSPF, EIGRP, BGP, and IS-IS, alongside comprehensive IPv6 routing features. This makes it an excellent choice for enterprise core or distribution layers requiring sophisticated traffic management and routing policy enforcement.
Can I stack the Cisco WS-C3850-12XS-E with other switches? +
The WS-C3850-12XS-E is a stackable switch designed to function within Cisco StackWise technology. This allows you to combine multiple switches into a single logical unit, providing simplified management, increased port density, and resilient throughput across the stack through a unified control plane.
What type of management interface does the WS-C3850-12XS-E offer? +
This is a fully managed switch that supports industry-standard interfaces, including a command-line interface (CLI) via console port, SNMP, and web-based management. These tools provide granular configuration control and monitoring capabilities necessary for maintaining uptime and performance in complex enterprise networking environments.
Is the WS-C3850-12XS-E suitable for high-density 10G fiber deployments? +
Absolutely. With 12 SFP+ ports capable of both 1G and 10G speeds, this switch is specifically optimized for high-density fiber connectivity. It is highly effective in scenarios requiring high-speed uplinks or server connectivity, delivering consistent line-rate performance in a rackmount chassis.
What is the physical rack space requirement for this managed switch? +
The WS-C3850-12XS-E is designed with a standard 1U rackmount form factor. This efficient design allows for high port density within a limited cabinet space, making it a perfect solution for space-constrained data centers, server rooms, or enterprise wiring closets.
How does the Layer 3 performance of this model benefit enterprise networks? +
As a Layer 3 managed switch, the WS-C3850-12XS-E performs hardware-based packet forwarding, significantly offloading routing tasks from core routers. By handling inter-VLAN routing and advanced security policies at the access or distribution layer, it reduces latency and optimizes traffic flow across the enterprise.
