Mfr.part#:

WS-C3650-24PDM-E

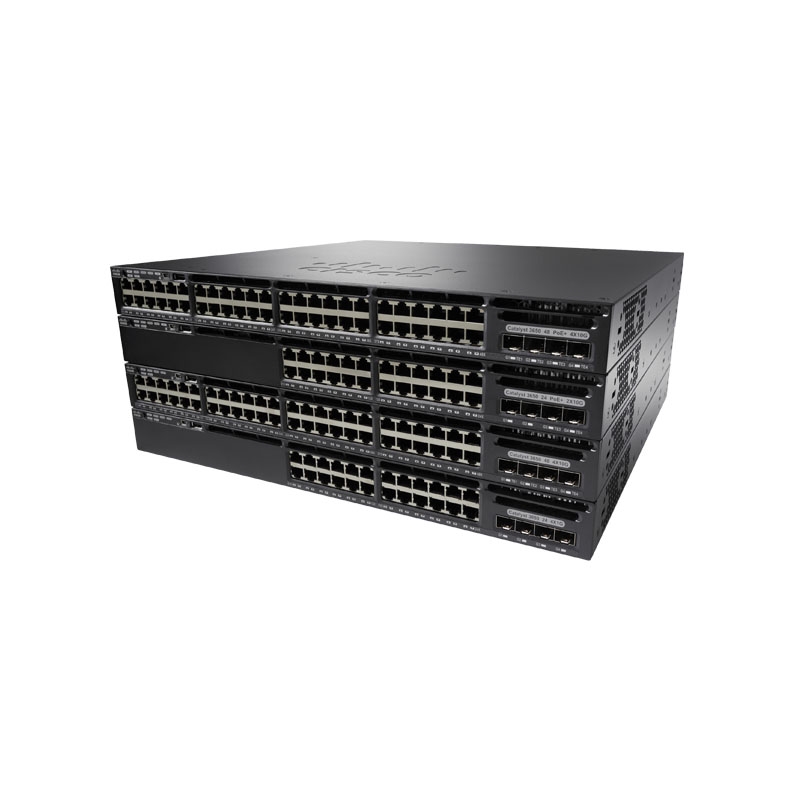

Name: WS-C3650-24PDM-E Catalyst 3650 Switch
Detail:
Stackable 24 10/100/1000 PoE+ downlink ports, two 1-Gigabit SFP uplink ports, two 10-Gigabit SFP+ uplink ports, Fixed 640-W power supply WS-C3650-24PDM-E
Availability: In Stock
Condition: New
GTIN: 0882658867620
icon
  • 0882658867620
  • 882658867620

WS-C3650-24PDM-E

Stackable 24 10/100/1000 PoE+ downlink ports, two 1-Gigabit SFP uplink ports, two 10-Gigabit SFP+ uplink ports, Fixed 640-W power supply WS-C3650-24PDM-E
Call for Price
Request Bulk Quote
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
Payment:
  • Pay by Visa.
  • Pay with your Discover Card.
  • Pay with your America Express.
  • Pay with your JCB.
  • Pay with your Wire Transfer.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 30 Day Return Policy
Expert Team Support

Laila Jones

Technical Customer Support

  • Expert Team Support CHAT
  • Expert Team Support EMAIL
  • Expert Team Support WHATSAPP
overview
specifications
reviews
overview
Overview

WS-C3650-24PDM-E Overview

Cisco CATALYST 3650 24 PORT

Stackable 24 10/100/1000 PoE+ downlink ports, two 1-Gigabit SFP uplink ports, two 10-Gigabit SFP+ uplink ports, Fixed 640-W power supply

Summary Description

Cisco CATALYST 3650 24 PORT

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco WS-C3650-24PDM-E?

Click hereto find the lowest discounted price for WS-C3650-24PDM-E.

Explore even more affordable prices for Switches and Cisco products.

specifications
Specification

WS-C3650-24PDM-E Specification

WS-C3650-24PDM-E Specification

General
Device TypeSwitch - 24 ports - L3 - managed - stackable
Enclosure TypeDesktop, rack-mountable 1U
SubtypeGigabit Ethernet
Ports24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) + 2 x 1000Base-X SFP (uplink)
Power Over Ethernet (PoE)PoE+
PoE Budget390 W
PerformanceSwitching capacity: 88 Gbps ¦ Forwarding performance: 68.45 Mpps ¦ Stacking bandwidth: 160 Gbps
CapacityIPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ IPv4 routes: 24000 ¦ Wireless LANs: 64
MAC Address Table Size32000 entries
Jumbo Frame Support9198 bytes
Routing ProtocolBGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+
FeaturesLayer 3 switching, DHCP support, ARP support, trunking, VLAN support, IGMP snooping, IPv6 support, Stateful switchover (SSO), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, Multiple SSID support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, CleanAir technology, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), CAPWAP support, Energy Efficient Ethernet, Wireless Intrusion Prevention System (WIPS), Flexible NetFlow (FNF), radio resource management (RRM), Software Defined Networking (SDN)
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM4 GB
Flash Memory2 GB
Status IndicatorsPort transmission speed, port duplex mode, system, active, status, PoE
Expansion / Connectivity
Interfaces24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x USB Type A ¦ 1 x serial (console) RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 management ¦ 1 x management (mini-USB) Type B management ¦ 2 x 1000Base-X SFP uplink ¦ 2 x 10GBase-X SFP+ uplink
Expansion Slots1 (total) / 1 (free) x Stacking Module slot
Power
Power DeviceInternal power supply - hot-plug
Installed Qty1 (installed) / 2 (max)
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Power Provided975 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Miscellaneous
Included AccessoriesFixed accessory kit
Rack Mounting KitIncluded
MTBF304,860 hours
Compliant StandardsCISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Software / System Requirements
Software IncludedCisco IOS IP Services
Dimensions & Weight
Width17.5 in
Depth11.7 in
Height1.7 in
Weight12.26 lbs
Manufacturer Warranty
Service & SupportLimited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days
Environmental Parameters
Min Operating Temperature23 °F
Max Operating Temperature113 °F
Humidity Range Operating5 - 96% (non-condensing)
Min Storage Temperature-40 °F
Max Storage Temperature158 °F
