| Name: |

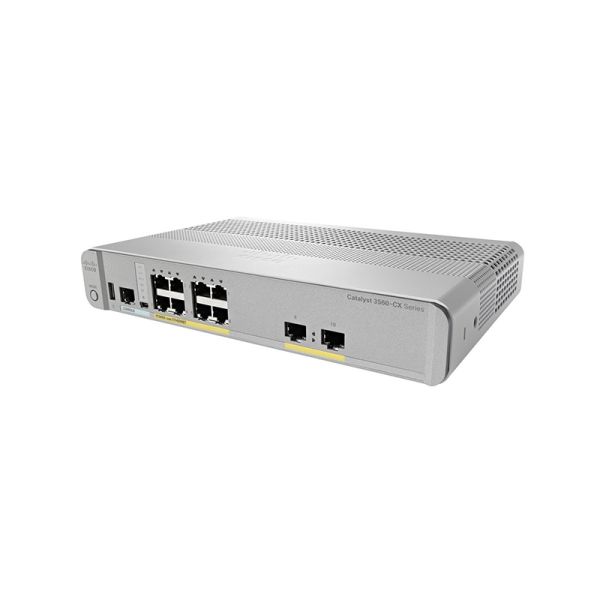

WS-C3560CX-8PT-S - Cisco ONE Catalyst 3560-CX Series Platform |
| Mfr. Part #: |
WS-C3560CX-8PT-S
|
| Condition: | Refurbished |
| Availability: | In Stock |
| Brand: | Cisco |
| Price: | $351.50 |
WS-C3560CX-8PT-S
Shipping:
Free ground shipping within United States up to 10LBS
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
-
Genuine Guarantee
-
Price Protection
-
Bulk Order Rebate
-
30 Day Return Policy
overview
specifications
resources
reviews
WS-C3560CX-8PT-S Overview
Cisco Catalyst 3560-CX PD PSE 8 Port PoE, 1G Uplinks IP Base WS-C3560CX-8PT-S
Overview
Cisco WS-C3560CX-8PT-S, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, Wall mountable
Cisco Catalyst 3560-CX PD PSE 8 Port PoE, 1G Uplinks IP Base
68 Gbps, 8 GE PoE+, UPOE, VLAN, RJ-45, 44.4 x 269 x 177 mm
- Managed
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
- Switching capacity: 32 Gbit/s
- Access Control List (ACL)
- Rack mounting
- Power over Ethernet (PoE)
Summary Description
Cisco WS-C3560CX-8PT-S, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, Wall mountable
Need help with WS-C3560CX-8PT-S?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
WS-C3560CX-8PT-S Specification
WS-C3560CX-8PT-S Specification | |
| Capacity | |
| Type | Virtual interfaces (VLANs) |
| Value | 1023 |
| Dimensions & Weight | |
| Width | 10.6 in |
| Depth | 7 in |
| Height | 1.7 in |
| Weight | 3.48 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Flash Memory | |
| Installed Size | 128 MB |
| Header | |
| Compatibility | PC |
| Manufacturer | Cisco Systems |
| Packaged Quantity | 1 |
| Product Line | Cisco Catalyst |
| Model | 3560CX-8PT-S |
| Brand | Cisco |
| Interface Provided | |
| Qty | 8 |
| Comments | PoE+ |
| Type | USB |
| Connector Type | Type A |
| Miscellaneous | |
| Rack Mounting Kit | Optional |
| Compliant Standards | 80 PLUS Silver, ANATEL, AS/NZS CISPR22:2004 Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22, CISPR 24, EN 60950-1, EN55022, EN55024, GB 4943, GOST, IEC 60825, IEC 60950-1, KCC Class A, KN22, KN24, RoHS, UL 60950-1, VCCI V-3/2007.04 Class A |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| MTBF | 737,740 hours |
| Height (Rack Units) | 1 |
| Color Category | Gray |
| Performance | |
| Type | Forwarding performance (64-byte packet size) |
| Value | 14.9 Mpps |
| Ports | |
| Qty | 10 |
| Type | 10/100/1000 (PoE+) |
| Power Device | |
| Power Consumption Operational | 24.3 Watt |
| RAM | |
| Installed Size | 512 MB |
| Service | |
| Support Details Type | Technical support |
| Support Details Service Included | Consulting |
| Support Details Full Contract Period | 90 days |
| Service & Support | |
| Type | Limited lifetime warranty |
| Service & Support Details | |
| Response Time | Next business day |
| Software | |
| Type | Cisco IOS IP Base |
| Networking | |
| Type | Switch |
| Remote Management Protocol | CLI, HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Status Indicators | Link/activity, PoE, Port transmission speed, Status, System |
| Ports Qty | 8 |
| Features | Access Control List (ACL) support, ARP support, Auto-negotiation, BOOTP support, Class of Service (CoS), DHCP snooping, DHCP support, DiffServ support, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Fanless, Full duplex capability, IPv6 support, MAC Address Notification, Multicast VLAN Registration (MVR), Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Syslog support, Trivial File Transfer Protocol (TFTP) support, VLAN support, Weighted Tail Drop (WTD) |
| Routing Protocol | RIP-1, RIP-2, Static IP routing |
| Subcategory | Network hubs and switches |
| Power Over Ethernet (PoE) | PoE+ |
| Manageable | Yes |
| Form Factor | Desktop, DIN rail mountable, Rack-mountable, Wall-mountable |
| Jumbo Frame Support | 9198 bytes |
| Subtype | 10 Gigabit Ethernet |
| PoE Budget | 146 W |
