30 day return policy
| Mfr.part#: |
WS-C2960-24LT-L |
|
| Name: | WS-C2960-24LT-L Cisco 2960 Switch | |
| Detail: |
Cisco Catalyst switch 2960 24 10/100 (8 PoE)+ 2 1000BT LAN Base Image WS-C2960-24LT-L
|
|
| Availability: | In Stock | |
| Condition: | Refurbished | |
| Price: | $114.80 | |
WS-C2960-24LT-L
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
Payment:
-
Pay by Visa. -
Pay with your Discover Card. -
Pay with your America Express. -
Pay with your JCB. -
Pay with your Wire Transfer.
-
Genuine Guarantee
-
Price Protection
-
Bulk Order Rebate
-
30 Day Return Policy
overview
specifications
reviews
Overview
WS-C2960-24LT-L Overview
WS- C2960-24TC-L is one of the Cisco Catalyst 2960 Series switches. This series support voice, video, data, and highly secure access. They also deliver scalable management as your business needs change. The Common Features are included: Enhanced security including Cisco TrustSec for providing authentication, access control, and security policy administration, Multiple Fast or Gigabit Ethernet performance options, Cisco EnergyWise for power management, Scalable network management.
Quick Specs

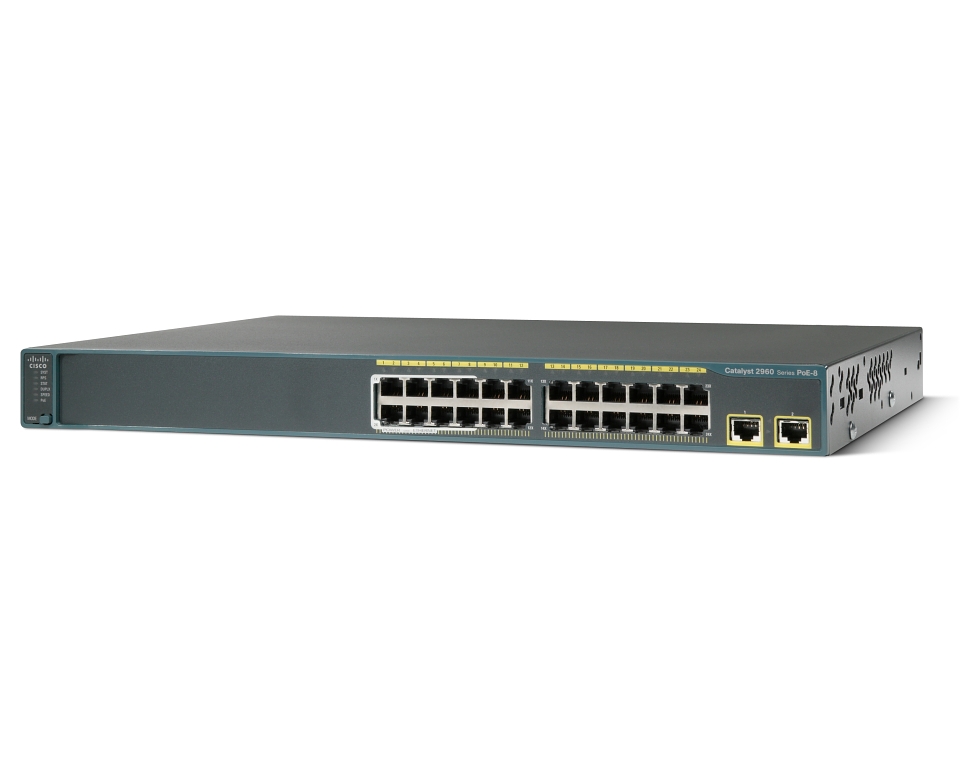

Figure 1 shows the appearance of the WS-C2960-24LT-L.
Table 1 shows the Quick Spec.
Product Code | WS-C2960-24LT-L |
Enclosure Type | Rack-mountable - 1U |
Feature Set | LAN Base |
Uplink Interfaces | 2 x 10/100/1000 TX uplinks |
Ports | 24 x Ethernet 10/100 ports with 8 PoE ports |
Throughput | 6.5 Mpps |
Backplane Capacity | 16 Gbps |
DRAM | 64 MB |
Dimensions | 1.73 x 17.5 x 9.3 in. |
Package Weight | 10.9 Kg |
Product Details

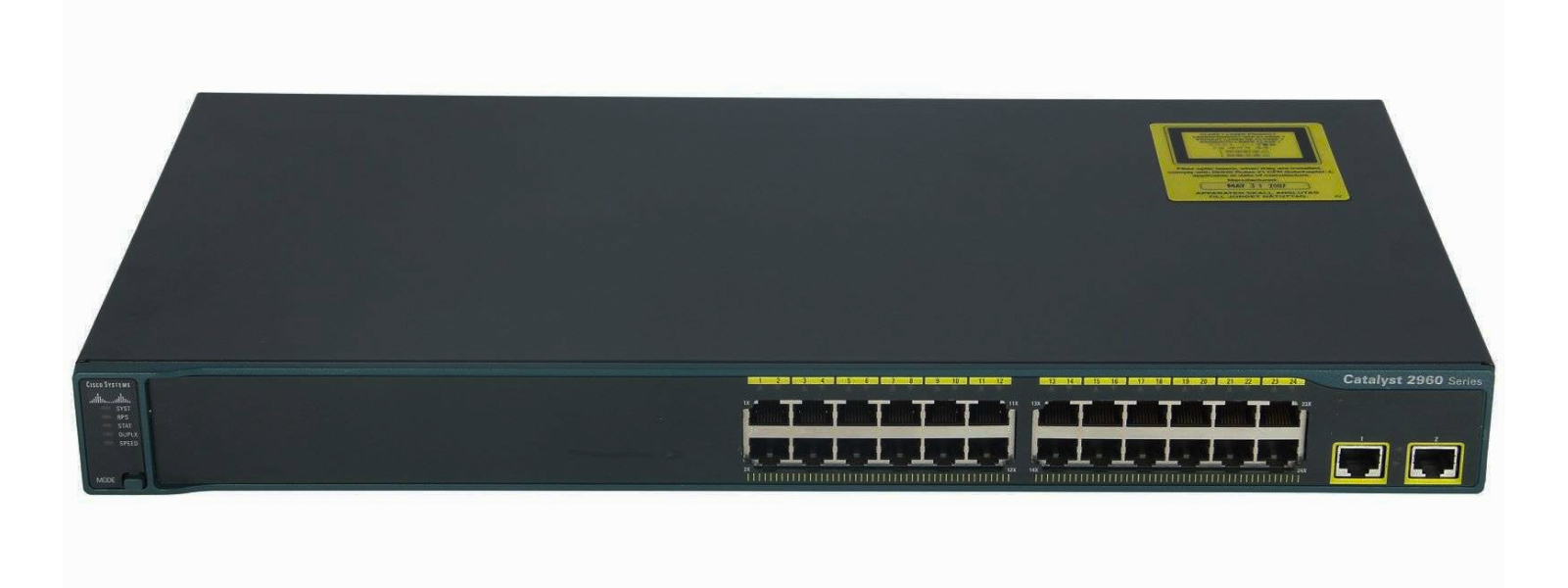

Figure 2 shows the front panel of the Cisco 2960-24LT-L switch.

Note:
â‘ | Mode Button |
② | 8 × Ethernet 10/100 PoE ports |
③ | 16 × Ethernet 10/100 ports |
â‘£ | 2 dual-purpose uplinks |
Figure 3 shows the back panel of the Cisco 2960-24LT-L switch.

Note:
â‘ | RJ45 Console Port |
â‘¡ | RPS Connector |
â‘¢ | AC power connector |
The Accessories
Table 2 shows some accessories of the WS-C2960-24LT-L.
Models | Description |
GLC-LH-SM | GE SFP, LC connector LX/LH transceiver |
GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
Compare to Similar Items
Table 3 shows the comparison of similar items.
Models | WS-C2960X-24TS-L | WS-C2960-24LT-L |
Ports | 24 x Ethernet 10/100/1000 Gigabit ports | 24 x Ethernet 10/100 ports with 8 PoE ports |
Uplinks | 4 x 1G SFP | 2 dual-purpose uplinks |
Feature Set | LAN Base | LAN Base |
FlexStack-Plus Stacking | Optional | N/A |
Get more information
Do you have any question about the Cisco Catalyst C2960-24LT-L switch?
Contact us now via Live Chat or support@buyrouterswitch.com.
Specification
WS-C2960-24LT-L Specification
WS-C2960-24LT-L Specifications | |
| Type | Fixed |
| Topology | Ethernet (10/100BaseTX) Ethernet (10/100/1000BaseT) |
| Maximum Port density | 8 10/100 PoE ports 16 10/100 ports |
| Uplinks | 2 10/100/1000 ports |
| Modular/Expansion Slots | n/a |
| Architecture | Layer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Voice Enabled |
| Form Factor | Fixed, Rack Mountable, Standalone/Clustering |
| Dimensions | 1.73 x 17.5 x 13 in. |
| DRAM | 64 MB |
| Features | |
| Specialized Service Modules | n/a |
| Security | |
| DHCP Snooping |  |
| Dynamic ARP Inspection | |
| IP Source Guard | |
| RP Rate Limiters | |
| TCP Intercept | |
| 802.1x | |
| Port Security | |
| Dynamic VLANs | |
| Private VLANs | |
| Private VLAN Edge | |
| Secure Shell | |
| SNMPv3 | |
| Unicast RPF | |
| ACLs (L2-L4) | |
| Kerberos | |
| TACACS+ | |
| RADIUS | |
| High Availability/Resilliency | |
| Hardware Redundancy | External Redundant Power Supply |
| High Availability/Resilliency | PVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning Tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w |
| Management | |
| Management features | SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management |
| Scalability | |
| WAN Interface Support | n/a |
| Throughput | 6.5 Mpps |
| Backplane Capacity | 16 Gbps |
| Number of VLANs | 255 |
