Mfr.part#:	WDM-1300-1550-S
Name:	WDM-1300-1550-S 1300nm/1550nm WDM splitter cable
Detail:	1300nm/1550nm WDM splitter cable WDM-1300-1550-S
Availability:	In Stock
Condition:	New
Price:	$404.00

WDM-1300-1550-S

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

WDM-1300-1550-S Overview

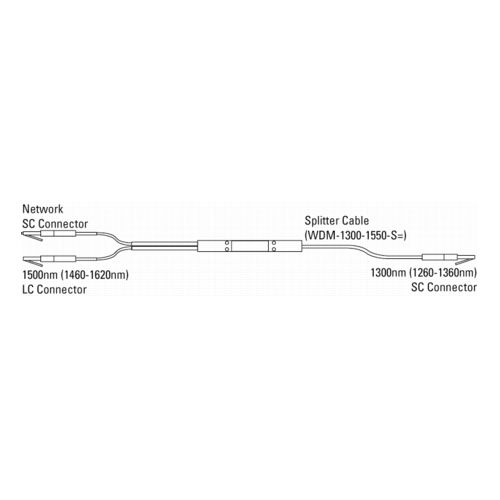

The WDM splitter cable provides bidirectional, multiplexing/demultiplexing for 1310-nm and 1550-nm signals, Y-cable with a 1310-nm branch terminating in an SC connector, 1550-nm branch terminating in an LC connector, The common trunk branch of the Y cable is terminated in an SC connector.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	WDM-1300-1550-S
Description	WDM-1300-1550-S 1300nm/1550nm WDM splitter cable
Product Name	WDM Splitter Cable
Product Type	Data Transfer Cable
Cable Characteristic	Splitter Cable
Cable Length	3.28 ft
Conductor	Copper
Compatibility	Cisco Catalyst 3750 Series OADM Modules, Cisco CWDM GBIC Solution for Catalyst 3550 Switch, Cisco Catalyst 2970 Series OADM Modules, Cisco CWDM GBIC Solution for Catalyst 2950 Switch
Brand Name	Cisco

Get more information

Do you have any question about the WDM-1300-1550-S?

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco WDM-1300-1550-S?

Our lowest price for WDM-1300-1550-S is $404.00 Buy Now

Explore even more affordable prices for Cables and Other and Cisco products.

specifications

Specification

WDM-1300-1550-S Specification

WDM Splitter Optical Specification (standard temperature range, -5 to 55°C)
Model	Maximum Insertion Loss (dB)		Wavelength Range (nm)
	1550	1300	1550	1300
WDM-1300-1550-S=	0.8	1.2	1460-1620	1260-1360
WDM Splitter Optical Specification (extended temperature range, -20 to 75°C)
Model	Maximum Insertion Loss (dB)		Wavelength Range (nm)
	1550	1300	1550	1300
WDM-1300-1550-S=	0.9	1.2	1460-1620	1260-1360
