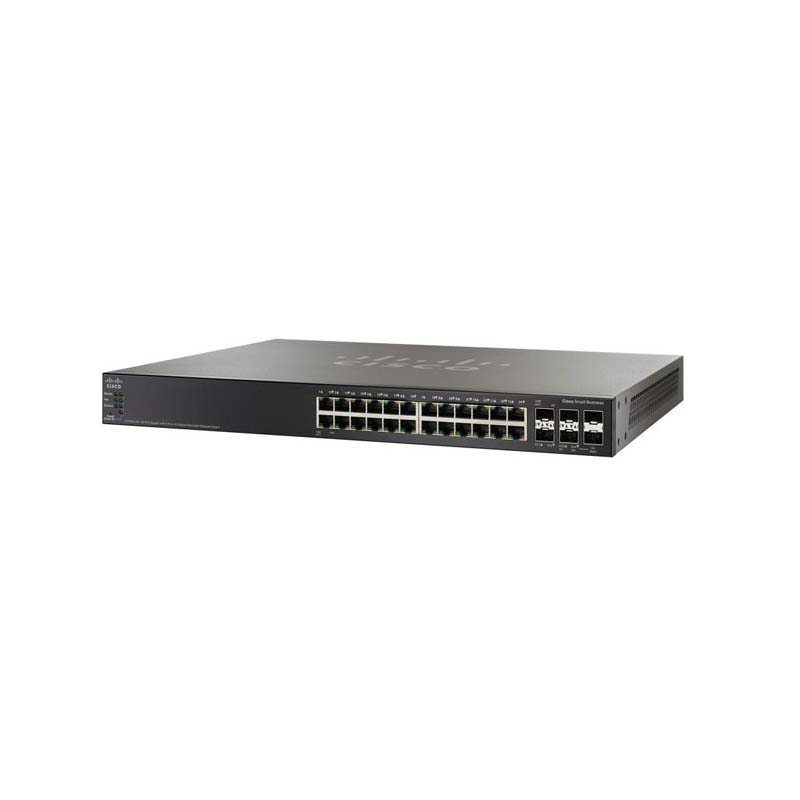

SG500X-24P - Cisco Small Business 500 Series Stackable Managed Switches

Product code

SG500X-24P

Device Type

Switch - 24 ports - L3 - managed - stackable

Enclosure Type

Rack-mountable

Ports

24 x 10/100/1000 + 4 x 10 Gigabit SFP+

Power Over Ethernet (PoE)

Yes

Routing Protocol

RIP, Static IP routing

Features

Stacking, RIP, VRRP, Flow control, layer 2 switching, VLAN support, IPv6 support,

Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support,

Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support,

Quality of Service (QoS), reset button, LACP support, Energy Efficient Ethernet, Dynamic VLAN Support (GVRP)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q,

IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP),

IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az

RAM

256 MB

Flash Memory

32 MB

Status Indicators

Port transmission speed, system, PoE, link/activity

Interfaces

24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE, 4 x SFP+

Power Device

Power supply - internal

Voltage Required

AC 120/230 V ( 50/60 Hz )

Width

17.3 in

Depth

10.1 in

Height

1.7 in

Weight

7.7 lbs

Cables Included

1 x serial cable

Compliant Standards

UL 60950, FCC Part 15 A, CSA 22.2

Service & Support

Limited lifetime warranty

Service & Support Details

Limited warranty - replacement - lifetime - response time: next business day, Technical support - phone consulting - 1 year, Technical support - web support - 1 year

Min Operating Temperature

32 °F

Max Operating Temperature

104 °F

Humidity Range Operating

10 - 90% (non-condensing)

Min Storage Temperature

-4 °F

Max Storage Temperature

158 °F

Humidity Range Storage

10 - 90% (non-condensing)
