SG250-26HP Overview

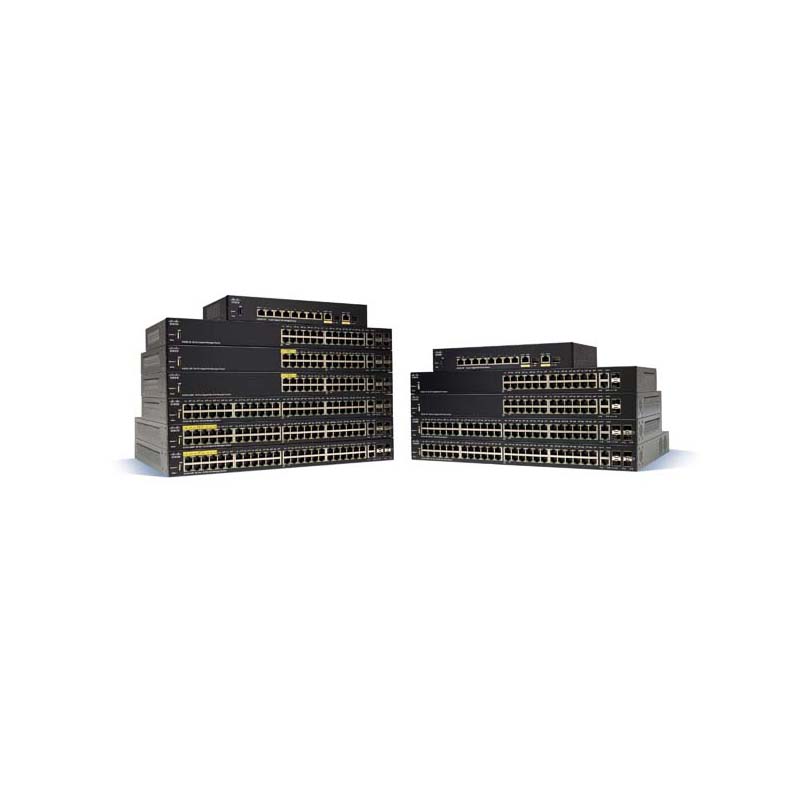

Cisco SG250-26HP 26-Port Gigabit PoE Smart Switch SG250-26HP
Overview
The Cisco 250 Series is the next generation of affordable smart switches that combine powerful network performance and reliability with a complete suite of the network features you need for a solid business network. These powerful Fast Ethernet or Gigabit Ethernet switches, with Gigabit or 10 Gigabit Ethernet uplinks, provide multiple management options, sophisticated security capabilities, fine-tuned Quality-of-Service (QoS) and Layer 3 static routing feature far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches.
Quick Specs
| Product Code | SG250-26HP |
| Processor | X ARM: 800 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Power dedicated to PoE | 100W |
| Number of ports that support PoE | 24 |
| Total system ports | 26 Gigabit Ethernet |
| RJ-45 ports | 24 Gigabit Ethernet |
| Combo ports (RJ-45 + SFP) | 2 Gigabit Ethernet combo |
Product Details
-Layer 3 static routing: This capability allows you to segment your network into separate workgroups and communicate across VLANs without degrading application performance. As a result, you can manage internal routing with your switches and dedicate your router to external traffic and security, helping your network run more efficiently.
-IPv6 support: As the IP network addressing scheme evolves to accommodate more devices, you can have peace of mind that your network is ready. Cisco 250 Series switches provide native support for IPv6 alongside traditional IPv4. With USGv6 and IPv6 Gold Logo certifications, the 250 Series will enable you to take full advantage of IPv6-enabled operating systems and applications in the future, without having to upgrade your network equipment.
-IP telephony support: Cisco 250 Series switches include QoS features to prioritize delay-sensitive services such as voice and video, simplify unified communications deployments, and help ensure consistent network performance for all services.
Related Modules
| Model | Description |
| Cisco SF250-24 24-Port 10 100 Smart Switch | |
| Cisco SF250-24P 24-Port 10 100 PoE Smart Switch | |
| Cisco SF250-48 48-Port 10 100 Smart Switch | |
| Cisco SF250-48HP 48-Port 10 100 PoE Smart Switch | |
| Cisco SG250-10P 10-Port Gigabit PoE Smart Switch | |
| Cisco SG250-18 18-Port Gigabit Smart Switch | |
| Cisco SG250-26 26-Port Gigabit Smart Switch | |
| SG250-26HP | Cisco SG250-26HP 26-Port Gigabit PoE Smart Switch |
| Cisco SG250-26P 26-Port Gigabit PoE Smart Switch | |
| Cisco SG250-50 50-Port Gigabit Smart Switch | |
| Cisco SG250-50HP 50-Port Gigabit PoE Smart Switch | |
| Cisco SG250-50P 50-Port Gigabit PoE Smart Switch | |
| Cisco SG250X-24 24-Port Gigabit with 4-Port 10-Gigabit Smart Switch | |
| Cisco SG250X-24P Gigabit PoE with 4-Port 10-Gigabit Smart Switch |
Need help with SG250-26HP?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
SG250-26HP Specification
SG250-26HP Specification | |
Capacity in millions of packets per second (mpps) (64-byte packets) | 38.69 |
Switching capacity in gigabits per second (Gbps) | 52.0 |
Spanning Tree Protocol (STP) | Standard 802.1d spanning tree support Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported |
Port grouping/link aggregation | Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) ● Up to 4 groups ● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad LAG |
VLAN | Support for up to 255 active VLANs simultaneously Port-based and 802.1Q tag-based VLANs Management VLAN Guest VLAN |
Voice VLAN | Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver networkwide zero-touch deployment of voice endpoints and call control devices |
Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) | Protocols for automatically propagating and configuring VLANs in a bridged domain |
HOL blocking | Head-Of-Line (HOL) blocking |
IPv4 routing | Wire-speed routing of IPv4 packets Up to 32 static routes and up to 16 IP interfaces |
IPv6 routing | Wire-speed routing of IPv6 packets |
Power dedicated to PoE | 100W |
Number of ports that support PoE | 24 |
Total system ports | 26 Gigabit Ethernet |
RJ-45 ports | 24 Gigabit Ethernet |
Combo ports (RJ-45 + SFP) | 2 Gigabit Ethernet combo |
USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
Buttons | Reset button |
Cabling type | Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5e or better for 1000BASE-T |
Mounting Options | Desktop placement, rackmount (excluding SG250-08 and SG250-08HP) and wall-mount |
LEDs | System, Link/Act, PoE, Speed |
Flash | 256 MB |
CPU memory | 512 MB |
Packet buffer | 12 Mb |
Unit dimensions (W x H x D) | 440 x 44 x 257 mm (17.3 x 1.73 x 10.12 in) |
Power | 100 to 240V 50 to 60 Hz, internal, universal: SF250-24, SF250-24P, SF250-48, SF250-48HP, SG250-26, SG250-26HP, SG250-26P, SG250-50, SG250-50HP, SG250-50P, SG250X-24, SG250X-24P, SG250X-48, SG250X-48P 100 to 240V 50 to 60 Hz, external: SG250-08, SG250-08HP, SG250-10P |
Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Operating temperature | 32° to 122°F (0° to 50°C) |
Storage temperature | -4° to 158°F (-20° to 70°C) |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 10% to 90%, relative, noncondensing |
Frequently Asked Questions
What is the total PoE budget for the Cisco SG250-26HP? +
The Cisco SG250-26HP features a robust power budget designed to support high-density deployments of PoE-enabled devices. It provides up to 195W of total power, allowing you to efficiently run a mix of VoIP phones, wireless access points, and surveillance cameras across its Gigabit ports without needing additional electrical infrastructure at the edge.
How many ports on the SG250-26HP support Power over Ethernet? +
This model is equipped with 24 PoE-enabled 10/100/1000 ports, ensuring consistent power delivery to your network endpoints. In addition to these PoE ports, the unit includes two combination Gigabit SFP slots, which provide flexible uplink connectivity to your core network or fiber-based distribution layer while keeping the main ports available for edge device connectivity.
Does the SG250-26HP support VLAN configuration and management? +
Yes, as part of the Cisco 250 Series, this smart switch offers extensive VLAN support, including voice VLANs for improved quality of service. You can easily segment your network traffic and manage broadcast domains through the web-based graphical user interface or the Cisco Smart Network Application, making it an ideal choice for businesses requiring structured, secure network environments.
Can I use the SFP slots on the Cisco SG250-26HP for fiber uplinks? +
Absolutely. The SG250-26HP includes two combo SFP slots that provide high-speed fiber uplink capability. These ports allow you to connect the switch to your backbone network using either copper or optical transceivers, offering the versatility needed to extend your network reach or increase bandwidth capacity beyond standard copper cabling limitations.
Is the SG250-26HP suitable for a small business VoIP deployment? +
This switch is specifically engineered for business-class VoIP deployments. It includes advanced QoS features that automatically prioritize voice traffic, ensuring crystal-clear audio quality even during high network utilization. With its PoE capabilities, you can deploy IP phones throughout your office space quickly and reliably by delivering both data and power over a single Ethernet cable.
What is the primary difference between a managed and smart switch like the SG250-26HP? +
A smart switch like the SG250-26HP offers a balance of essential manageability and cost-efficiency. It provides critical features such as traffic prioritization, security settings, and network monitoring, all accessible through an intuitive web-based interface. It is perfect for IT environments that need professional-grade control without the complexity and higher price point of a fully managed enterprise switch.
How does the SG250-26HP handle network security? +
Security is addressed through robust features like access control lists (ACLs) and 802.1X port authentication. These capabilities allow you to restrict network access to authorized devices and users, effectively protecting your sensitive business data from unauthorized entry. These tools ensure that your network remains secure and resilient against both external threats and internal policy violations.
What are the physical dimensions and mounting requirements for the SG250-26HP? +
The SG250-26HP is designed for standard rack-mount environments. It follows a 1RU (Rack Unit) form factor, making it easy to install in most industry-standard 19-inch equipment racks. This compact, durable design ensures it occupies minimal space in your wiring closet while maintaining optimal airflow and accessibility for cable management during daily operations.
How can I obtain a bulk quote for multiple Cisco SG250-26HP units? +
If you are planning a larger infrastructure project, BuyRouterSwitch.com makes it easy to secure volume pricing. Simply contact our dedicated sales team through the quote request form on our website with your required quantities and project timeline. Our specialists will review your needs and provide a competitive, formal quote to help keep your networking expansion project within budget.
Why should I choose BuyRouterSwitch.com for my enterprise networking hardware? +
BuyRouterSwitch.com is a trusted source for high-quality Cisco hardware, ensuring that you receive authentic products tailored to enterprise needs. We prioritize a seamless procurement experience for IT buyers, offering a streamlined ordering process and professional support. By choosing us, you gain a reliable supply chain partner dedicated to providing the precise hardware solutions your network infrastructure requires.
