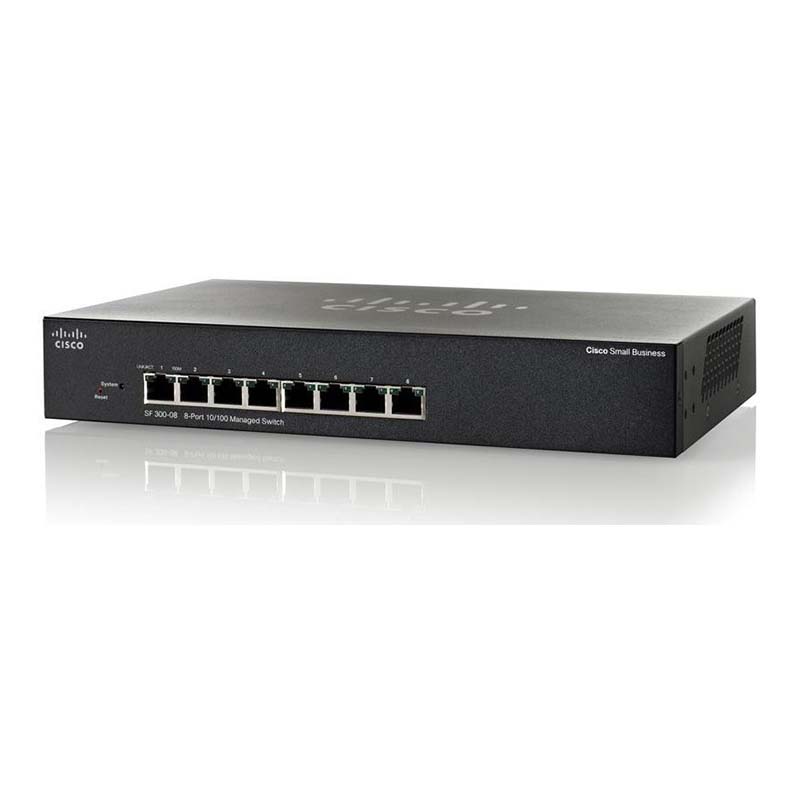

SF300-08 Overview
8 10/100 ports SF300-08
Overview
The Cisco 300 Series is broad portfolio of fixed-configuration managed Ethernet switches. Models are available with 8 to 48 ports of Fast Ethernet and 10 to 52 ports of Gigabit Ethernet connectivity, providing optimal flexibility to create exactly the right network foundation for your business. The Cisco SF300-08 provides 8 Fast Ethernet ports.
Quick Spec
Product Number | SF300-08 |
Product Description | 8 10/100 ports |
Ports | 8 x 10/100 |
Power Over Ethernet (PoE) | N/A |
Performance | Switching capacity : 5.6 Gbps ¦ Forwarding performance (64-byte packet size) : 4.17 Mpps |
MAC Address Table Size | 16K entries |
Capacity | 4K Active VLANs |
Routing Protocol | Static IPv4 routing |
Compare to Similar Items
Product Number | SF300-08 | |
Product Description | 8 10/100 ports | 8 10/100 ports, 2 combo mini-GBIC ports |
Ports | 8 x 10/100 | 8 x 10/100 + 2 x combo Gigabit SFP |
Power Over Ethernet (PoE) | N/A | N/A |
Performance | Switching capacity : 5.6 Gbps ¦ Forwarding performance (64-byte packet size) : 4.17 Mpps | Switching capacity : 5.6 Gbps ¦ Forwarding performance (64-byte packet size) : 4.17 Mpps |
MAC Address Table Size | 16K entries | 16K entries |
Capacity | 4K Active VLANs | 4K Active VLANs |
Routing Protocol | Static IPv4 routing | Static IPv4 routing |
Need help with SF300-08?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
SF300-08 Specification
SF300-08 Specification | |
Product Number | SF300-08 |
Product Description | 8 10/100 ports |
General |
|
Device Type | Switch - 8 ports - L3 - managed |
Enclosure Type | Desktop, rack-mountable - 1U |
Ports | 8 x 10/100 |
Power Over Ethernet (PoE) | N/A |
Performance | Switching capacity : 5.6 Gbps ¦ Forwarding performance (64-byte packet size) : 4.17 Mpps |
MAC Address Table Size | 16K entries |
Capacity | 4K Active VLANs |
Routing Protocol | Static IPv4 routing |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
Jumbo Frame Support | 10KB |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | Layer 3 switching, layer 2 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, fanless |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
RAM | 128 MB |
Flash Memory | 16 MB flash |
Status Indicators | Link activity, port transmission speed, system |
Expansion / Connectivity |
|
Interfaces | 8 x 10Base-T/100Base-TX - RJ-45 ¦ 1 x console - 9 pin D-Sub (DB-9) - management |
Power |
|
Power Device | Power supply - internal |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Miscellaneous |
|
Width | 11 in |
Depth | 6.7 in |
Height | 1.5 in |
Weight | 2.6 lbs |
Cables Included | 1 x serial cable |
Rack Mounting Kit | Included |
MTBF | 71,006 hour(s) |
Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
Localization | Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
Manufacturer Warranty |
|
Service & Support | Limited lifetime warranty |
Service & Support Details | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Environmental Parameters |
|
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
Frequently Asked Questions
What are the primary networking capabilities of the Cisco SF300-08 switch? +
The Cisco SF300-08 is a managed Fast Ethernet switch designed for small to medium-sized business networks. It provides essential Layer 2 switching features, including VLAN support, Quality of Service (QoS) for traffic prioritization, and security protocols like 802.1X. This device is ideal for users who need a reliable, cost-effective solution for segmenting traffic and managing end-user connectivity in office environments.
Does the SF300-08 support managed features for remote network administration? +
Yes, this model features a robust management interface accessible via a web-based GUI or Command Line Interface (CLI). It supports Simple Network Management Protocol (SNMP) and Remote Monitoring (RMON), allowing network administrators to configure settings, monitor port status, and troubleshoot traffic issues remotely, ensuring optimal uptime and visibility across your local area network infrastructure.
Can the Cisco SF300-08 handle bandwidth-sensitive applications like VoIP or video? +
The switch includes advanced Quality of Service (QoS) features that allow you to prioritize latency-sensitive traffic. By configuring traffic queues, you can ensure that voice or video data packets are processed with higher priority than standard data, minimizing jitter and packet loss. This makes the SF300-08 a suitable choice for businesses deploying IP telephony or desktop video conferencing.
What is the physical port configuration for this specific model? +
The Cisco SF300-08 is equipped with eight 10/100 Mbps Fast Ethernet RJ-45 ports. These ports support auto-negotiation, allowing the device to automatically detect the speed and duplex mode of connected endpoints. This compact design is perfect for desktop deployments or small wiring closets where space is at a premium and high-speed gigabit uplinks are not required for the connected devices.
How does the SF300-08 improve network security at the access layer? +
Security is addressed through features such as Access Control Lists (ACLs), which allow administrators to define permitted and denied traffic flows, and IEEE 802.1X port authentication. These capabilities prevent unauthorized users from accessing the network by ensuring that only authenticated devices can establish a connection, effectively protecting your internal resources from potential security breaches or unauthorized lateral movement.
Is the SF300-08 compatible with standard rack-mount environments? +
The SF300-08 features a compact, desktop-friendly form factor. While it is primarily intended for surface mounting or shelf placement, it is designed for environments that require silent, fanless operation. If you need to integrate this into a larger rack-mount system, you may require a dedicated shelf or tray, as it does not include built-in rack-mounting ears for standard 19-inch cabinets.
What type of power consumption should be expected from the SF300-08? +
As a Fast Ethernet switch, the SF300-08 is designed for high energy efficiency, consuming significantly less power than larger, high-density gigabit switches. It incorporates Cisco's energy-saving features, such as cable length detection and Energy Efficient Ethernet (EEE) standards, which help reduce operational costs by adjusting power usage based on link activity and cable length during periods of low network traffic.
Does the SF300-08 require any complex licensing for its managed features? +
The Cisco SF300-08 is a fully managed switch that includes its feature set out of the box. There are no recurring software subscription licenses or per-port feature activation fees required to utilize its management, VLAN, or security capabilities. You get full access to the device’s administrative toolset immediately upon deployment, making it a predictable and straightforward investment for your network budget.
How can I obtain a bulk quote for multiple SF300-08 units for a large project? +
If you are planning a large-scale deployment and require multiple SF300-08 units, please reach out to our dedicated sales team via our website. We specialize in volume procurement and can provide competitive bulk pricing tailored to your project requirements. Contact us directly through the BuyRouterSwitch.com portal to discuss your specific quantity needs and receive a formal quote from our account managers.
Why should I choose BuyRouterSwitch.com for my Cisco hardware procurement? +
BuyRouterSwitch.com is a trusted source for high-quality enterprise networking hardware, providing IT buyers with access to authentic Cisco products. We focus on a streamlined, secure ordering experience, ensuring that your equipment arrives ready for professional deployment. By purchasing through us, you leverage our industry expertise and commitment to reliable supply chain standards, ensuring your network infrastructure is built on genuine, high-performance foundation components.
