SF110-24 Overview

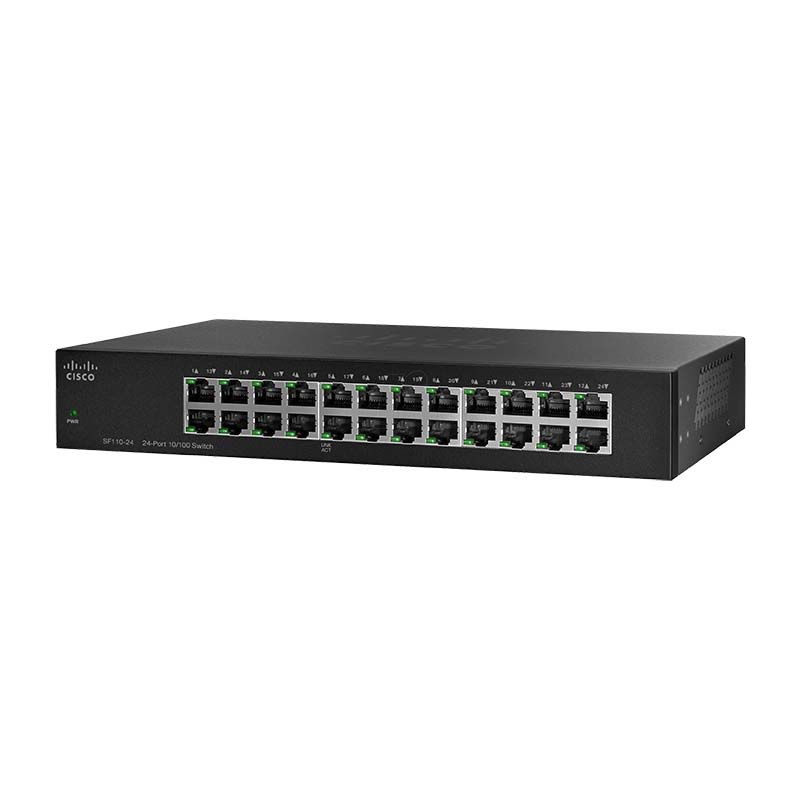

Cisco SF110-24 24-Port 10/100 Switch SF110-24
Overview
Cisco 110 Series Unmanaged Switches, part of the Cisco Small Business networking solutions, are a line of unmanaged switches that provide wire-speed Fast Ethernet and Gigabit Ethernet connectivity to connect your small business office. Available in desktop and rack-mount models, these switches are designed to suit any office space with basic network needs and to optimize power efficiency. They use less power and provide the robust, reliable connectivity your business demands, as well as support for advanced features such as quality of service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes. A business-class, affordable network solution, Cisco 110 Series switches bring the proven reliability and investment protection of Cisco networking solutions to your small business.
Quick Specs
| Product Code | SF110-24 |
| Ports | 10/100/1000 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord |
| Power supply | 110-240VAC, 50-60 Hz, internal, universal |
| Switching capacity | 4.8 Gbps |
| Forwarding capacity | 3.6 mpps |
| Jumbo frame | 9216 bytes |
Product Details
-Affordable 10/100/1000-Mbps speeds for even the most bandwidth-hungry applications
-5- to 24-port models that are desktop or rack mountable
-Power over Ethernet models to provide power to IP phones, access points, and other devices
-Works right out of the box: plug and play and no setup
Related Modules
| Model | Description |
| Cisco SF110D-08 8-port 10/100 Desktop Switch | |
| Cisco SF112-24 24-port 10/100 + 2 Mini-GBIC & 2 GE Uplink | |
| Cisco SG110-16 16-Port Gigabit Switch | |
| Cisco SG110-16HP 16-Port PoE Gigabit Switch | |
| Cisco SG110-24 24-port Gigabit Switch + 2 Mini GBIC Ports 1U | |
| Cisco SG110-24HP 24-Port PoE Gigabit Switch | |
| Cisco SG110D-05 5-port Gigabit Desktop Switch | |
| Cisco SG110D-08 8-Port Gigabit Switch | |
| Cisco SG110D-08HP 8-Port Gigabit PoE Switch | |
| Cisco SG112-24 COMPACT 24-port Gig Switch-2 Mini-GBIC Ports |
Need help with SF110-24?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
SF110-24 Specification
SF110-24 Specification | |
Specifications | Description |
Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
Cabling type | Category 5e or better |
LED indicators | System/PWR, link/activity, 100M,*PoE, *Max PoE, cable diagnostics, loop detection, gigabit,* mini-GBIC* *if present |
Physical Interfaces | |
Ports | 10/100/1000 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord |
Power supply | 110-240VAC, 50-60 Hz, internal, universal |
Lock slot | Slot for Kensington lock |
Physical Specifications | |
Physical dimensions (W x D x H) | 11 x 6.69 x 1.73 inches (279 x 170 x 44 mm) |
Ports | 24 RJ-45 connectors for 10BASE-T/100BASE-TX |
Fan/fanless models | All models have no fans and are fanless, except for SG100-24HP |
Performance | |
Switching capacity | 4.8 Gbps |
Forwarding capacity | 3.6 mpps |
Capabilities | |
Head-of-line (HOL) blocking | HOL blocking prevention |
Jumbo frame | 9216 bytes |
Quality of service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
Loop detection | Helps discover loops in the network to avoid broadcast storms |
Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
Mounting and Physical Security | |
Mounting options | Desktop or rack mount |
Physical security lock | Kensington lock slot |
Environmental | |
Compliance/ | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models |
Operating temperature | 32° to 104°F (0° to 40°C) |
Storage temperature | -4° to 158°F (-20° to 70°C) |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 5% to 90%, relative, noncondensing |
Package Contents | |
● Cisco 110 Series switch ● Power cord/power adapter ● Quick-start guide ● Mounting hardware | |
Minimum Requirements | |
● Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet ● Cat5 or better Ethernet cable ● Network interface card for each computer | |
Warranty | |
Cisco 110 Series switch | Limited lifetime |
Frequently Asked Questions
What are the primary port specifications for the Cisco SF110-24? +
The Cisco SF110-24 is equipped with 24 Fast Ethernet ports, providing 10/100 Mbps connectivity. It is designed to provide high-performance, reliable network connectivity for small office environments that require straightforward, plug-and-play operation for basic desktop or printer networking needs.
Does the Cisco SF110-24 require any complex software configuration before deployment? +
As an unmanaged switch, the SF110-24 operates on a plug-and-play basis. There is no software installation, configuration, or management interface required. You simply connect your devices to the ports, and the switch automatically handles the speed and duplex negotiation to establish your network links immediately.
Is the Cisco SF110-24 suitable for mounting in a standard server rack? +
Yes, this model features a form factor designed for rack-mount installation. It includes the necessary hardware to secure the unit within a standard 19-inch equipment rack, making it an ideal choice for organized wiring closets or consolidated server rooms where space-efficient hardware deployment is a priority.
How does the SF110-24 manage traffic to maintain network reliability? +
This switch utilizes advanced Cisco traffic-handling technology to ensure consistent performance. By automatically optimizing power consumption and packet delivery based on the connected device's requirements, it minimizes latency and packet loss, maintaining high uptime and stability for daily business applications without needing manual intervention.
What type of environments are best suited for the Cisco SF110-24? +
The SF110-24 is perfect for small businesses, home offices, or departments that require cost-effective, basic 10/100 connectivity without the overhead of complex managed switching. It excels in environments where simple, high-speed device aggregation for computers, printers, and basic network peripherals is the primary requirement.
Does the Cisco SF110-24 support energy-efficient features? +
Yes, the switch supports the Energy Efficient Ethernet (IEEE 802.3az) standard. This technology detects link status and cable length, automatically adjusting power consumption for each port. This helps reduce operational costs while maintaining full network performance, which is an essential consideration for modern, energy-conscious business infrastructure.
Are there specific licensing requirements for the Cisco SF110-24? +
No licenses are required for the operation of this switch. Since it is an unmanaged, plug-and-play device, all features are enabled out of the box, and there are no ongoing software subscription fees or feature-level unlocking keys to manage throughout the product's lifecycle.
What is the switching capacity of the Cisco SF110-24? +
The SF110-24 provides robust switching capacity capable of handling high volumes of data traffic typical for a 24-port Fast Ethernet setup. It performs wire-speed switching, ensuring that data is forwarded to its destination at the maximum possible speed for each interface, preventing bottlenecks within your local area network.
