R0X30A Overview
Aruba 6405 48SFP+ 8SFP56 Switch R0X30A
Overview
R0X30A Overview
Aruba 6405, Managed, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE)
Quick Specs

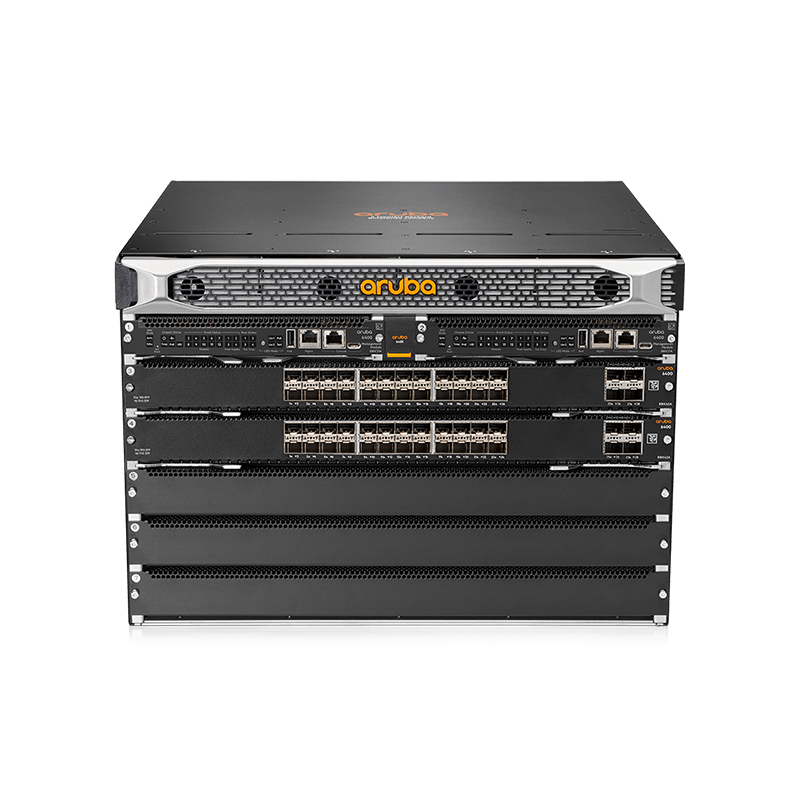

Figure 1 shows the appearance of R0X30A.
| Product Code | R0X30A |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable 7U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink) |
| Power Redundancy | Optional |
Product Details

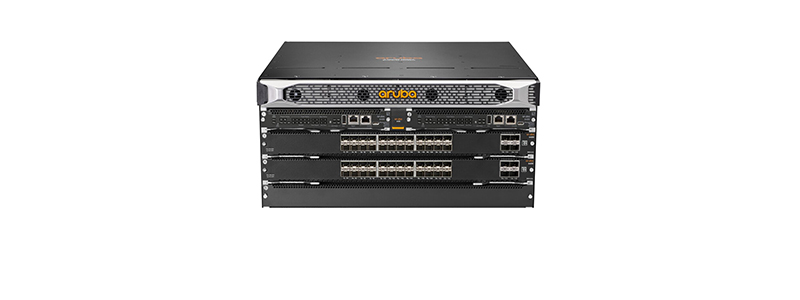

Figure 2 shows the front panel of R0X30A.

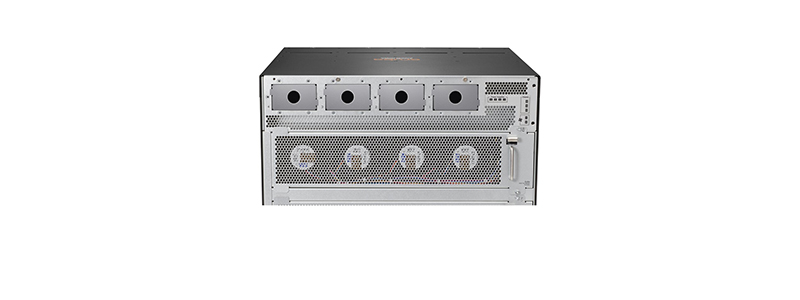

Figure 3 shows the back panel of R0X30A.
R0X30A provides these features:
Automation and Analytics
- The Aruba CX 6400 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
- Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily, through the use of Python agents and REST APIs.
- The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.
High Availability and Performance
- The Aruba CX 6400 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
- Features high speed, non-blocking 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE for scalable connectivity.
- The ability of AOS-CX to maintain synchronous state across dual control planes allows a simplified carrier-class high-availability solution called Aruba Virtual Switching Extension (VSX) that enables a distributed architecture which is available during upgrades or control plane events.
- High performance and versatile platform supports non-blocking 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE connections, and high density connectivity for aggregation with up to 480 ports of HPE Smart Rate multi-gigabit (1/2.5/5GbE) with 60W PoE for a total of 28,880W of PoE.
Smarter Segmentation
- The Aruba CX 6400 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
- Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.
- Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application via user roles.
Compare to Similar Items
| Module | R0X30A | |
| Product Type | Layer 3 Switch | Layer 3 Switch |
| Enclosure Type | Rack-mountable 7U | Rack-mountable 7U |
| Subtype | 10 Gigabit Ethernet | 10 Gigabit Ethernet |
| Ports | 96 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink) | 48 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink) |
| Power Redundancy | Optional | Optional |
Aruba 6405 48SFP+ 8SFP56 Swch
- High performance modular Layer 3 switches with BGP, EVPN, VXLAN, VRF, and OSPF with robust security and QoS, and delivers up to 28 Tbps in non-blockling bandwidth
- High availability with industry-leading VSX and redundant power supplies and fans
- Full density HPE Smart Rate (1/2.5/5GbE) multi-gigabit, 60W PoE, and SFP+ modules
- High speed, non-blocking 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE with intelligent monitoring, visibility and remediation with Aruba Network Analytics Engine
- Manage via single pane of glass with Aruba Central across wired, wireless, and WAN
- Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT
- Managed
- Quality of Service (QoS) support
- 10G support
- Switching capacity: 14000 Gbit/s
- AC Power over Ethernet (PoE)
Summary Description
Aruba 6405, Managed, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE)
Need help with R0X30A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
R0X30A Specification
R0X30A Specification | |
General | |
Device Type | Switch - 48 ports - L3 - managed |
Enclosure Type | Rack-mountable 7U |
Subtype | 10 Gigabit Ethernet |
Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ + 8 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink) |
Power Over Ethernet (PoE) | PoE+ |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), MLDv2, MLD, Bidirectional Forwarding Detection (BFD) |
Remote Management Protocol | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, SSH-2, CLI, XRMON, SFTP |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt |
Expansion / Connectivity | |
Interfaces | 48 x 100/1000/2.5G/5G SFP+ PoE+ ¦ 8 x 1Gbit/10Gbit/25Gbit/50Gbit (uplink) SFP56 ¦ 1 x USB-C console ¦ 1 x console RJ-45 ¦ 1 x USB Type A |
Installed Modules Qty (Max) | 4 (installed) / 7 (max) |
Power | |
Power Device | Internal power supply (not installed) |
Installed Qty | 4 (max) |
Power Redundancy | Optional |
Frequently Asked Questions
What are the primary port configurations available on the Aruba 6405 R0X30A switch? +
The Aruba 6405 R0X30A is designed for high-density fiber connectivity. It features 48 SFP+ ports supporting 1/10GbE speeds, complemented by 8 SFP56 ports that provide 10/25GbE capabilities. This configuration makes it an ideal core or aggregation layer switch for modern data centers requiring high-speed, low-latency fiber uplinks and server interconnects.
Is the Aruba 6405 R0X30A suitable for high-performance data center environments? +
Absolutely. Built on the ArubaOS-CX architecture, this chassis-based switch delivers carrier-class reliability and high throughput. Its programmable AOS-CX operating system ensures deep visibility and advanced automation, making it a robust choice for enterprises needing consistent, wire-speed performance for demanding virtualization and cloud-based application workloads.
How does the modular nature of the Aruba 6405 chassis benefit my network scalability? +
The 6405 modular design allows for significant investment protection as your network evolves. By utilizing a common chassis, you can easily swap line cards or upgrade management modules without replacing the entire hardware stack. This flexibility allows IT teams to scale port density and throughput capacity incrementally while maintaining a consistent management interface across the fabric.
Does the R0X30A support advanced Layer 3 routing protocols? +
Yes, the Aruba 6405 switch supports a full suite of Layer 3 features, including static routing, OSPF, BGP, and PIM. These capabilities allow the switch to handle complex routing tasks effectively, enabling it to act as a powerful aggregation point or a core switch within a segmented campus or data center network architecture.
What type of management interface is provided for the Aruba 6405 series? +
The switch is managed via the ArubaOS-CX operating system, which offers a modern, programmable interface. Administrators can utilize a comprehensive REST API, a familiar CLI, or the Aruba NetEdit platform for centralized network configuration, monitoring, and troubleshooting. This software-defined approach simplifies the management of complex fabric topologies and ensures consistent policy enforcement across the enterprise.
Can the Aruba 6405 R0X30A be used in a redundant power configuration? +
Yes, the 6405 chassis supports redundant, hot-swappable power supplies to ensure continuous operation in the event of a power source failure. For mission-critical deployments, configuring dual power supplies provides the necessary fault tolerance to prevent downtime and maintain high availability for connected fiber-based edge and core devices.
What is the primary advantage of the SFP56 ports on the R0X30A model? +
The integration of 8 SFP56 ports provides a significant performance boost, enabling 25GbE connectivity. This is essential for modern server uplinks and high-speed storage area networks. By supporting 25GbE, the R0X30A bridges the gap between traditional 10GbE and 100GbE requirements, allowing for smoother traffic flow and reduced bottlenecks in bandwidth-intensive environments.
Does the Aruba 6405 support Aruba NetEdit for network automation? +
The R0X30A fully integrates with Aruba NetEdit, which is a powerful tool for automated configuration and verification. This enables IT teams to push consistent changes across multiple switches, detect configuration errors before they impact the network, and maintain compliance standards across the entire campus or data center fabric with minimal manual intervention.
