Overview

PWR-C45-2800ACV Overview

Cisco PWR-C45-2800ACV. Product type: Power supply, Product colour: Black, Grey, Mean time between failures (MTBF): 155822 h. Compatibility: Cisco Catalyst 4503-E, 4506-E, 4507R-E, 4510R-E, 4507R+E, 4510R+E. Total power: 2800 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz

PWR-C45-2800ACV is a Cisco Catalyst Switch 4500 Series Switch Power Supply, delivering 2800W AC power (Data and PoE) for Cisco 4500 switches. Notice that PWR-C45-2800ACV= is similar with PWR-C45-2800ACV, except that PWR-C45-2800ACV= is a spare one.

Quick Spec

Table 1.

Product Code	PWR-C45-2800ACV
Manufacturer	Cisco System Inc.
Product Type	Power Supply Module
Compatible product	Cisco Catalyst 4500-E Series Switches and classic chassis
Power Input	1400W AC Power and 1400W PoE Power
Auto-Sensing	220V (16A)
Rated MTBF (Hours)	155,822

Product Details

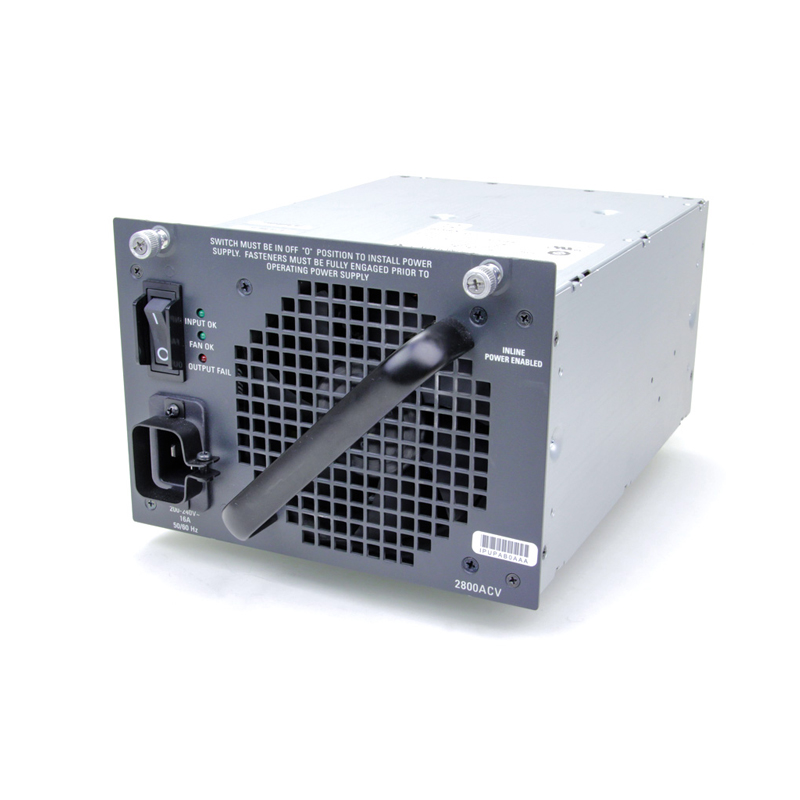

Figure 1. PWR-C45-2800ACV can be installed in the Catalyst 4500 switch Chassis.

Compatible Products

Table 2. Recommended Compatible Switches.

Model	Description
WS-C4503-E	Cat4500 E-Series 3-Slot Chassis, fan, no ps
WS-C4507R-E	Cat4500 E-Series 7-Slot Chassis, fan, no ps, Red Sup Capable
WS-C4510R-E	Cat4500 E-Series 10-Slot Chassis, fan, no ps,Red Sup Capable
WS-C4507R+E	Catalyst 4500E 7 slot chassis for 48Gbps/slot - Supervisor Engine redundancy - Power redundancy
WS-C4506-E	Catalyst 4500 E-Series 6-Slot Chassis, fan, no ps

Compare to Similar Item

Table 3. Comparison of similar item.

Product Code	PWR-C45-2800ACV	PWR-C45-1300ACV
Manufacturer	Cisco System Inc.	Cisco System Inc.
Product Type	Power Supply Module	Power Supply Module
Compatible product	Cisco Catalyst 4500-E Series Switches and classic chassis	Cisco Catalyst 4500-E Series Switches and classic chassis
Power Input	1400W AC Power and 1400W PoE Power	Up to 1300W AC Power and 800W PoE Power
Rated MTBF (Hours)	155,822	164,220

Get more information

Do you have any question about the PWR-C45-2800ACV?

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco PWR-C45-2800ACV?

Our lowest price for PWR-C45-2800ACV is $180.34 Buy Now

Explore even more affordable prices for Cisco and Cisco products.

specifications

Specification

PWR-C45-2800ACV Specification

PWR-C45-2800ACV Specification
AC-input type		Autoranging input with power factor corrector
AC-input voltage		200 to 240 VAC (±10% for full range)
AC-input current		16 A maximum at 200 VAC
AC-input frequency		50/60 Hz (nominal) (±3% for full range)
Branch circuit requirement		Each chassis power supply should have its own dedicated, fused-branch circuit: For North America—15 A or 20 A For International—Circuits sized to local and national codes All Catalyst 4500 E-series AC-input power supplies require single-phase source AC. All AC power supply inputs are fully isolated. – Source AC can be out of phase between multiple power supplies in the same chassis, which means that PS1 can be operating from phase A and PS2 can be operating from phase B. – For high-line operation, the power supply operates with the hot conductor wired to a source AC phase and the neutral conductor wired either to ground or to another source AC phase as long as the net input voltage is in the range of 170 to 264 VAC. – Source AC can be out of phase between AC inputs on power supplies that are equipped with multiple AC inputs, which means that power cord 1 can be plugged into phase A and power cord 2 can be plugged into phase B.
Power supply output capacity		2800 W maximum 1360 W+ 40 W redundant mode (data) 2473 W maximum in combined mode (data) 1400 W maximum each in redundant mode (PoE) 2333 W maximum in combined mode (PoE)
Power supply output		113.3 A @ 12 VDC (data) 12.1 A @ 3.3 VDC (data) 28 A @ –50 VDC (PoE)
Output holdup time		20 ms minimum
Maximum kVA rating		3.52 kVA
Max heat dissipation		2387 BTUs/hr.
Minimum software requirement		Cisco IOS Release 12.1(13)EW
Power over Ethernet		Supported, up to 1400 W (240 Cisco phones in combined mode)
LEDs and Meanings
LED	Color/State		Description
INPUT OK			Indicates whether the input voltage is within the required range:
	Green		Input voltage is within the required range.
	Flashing		Input voltage is present, but is below required range.
	Off		Input voltage is below the required range or the power supply is off.
OUTPUT FAIL
	Red		Output voltage is not within the specified range.
	Off		Output voltage is within the specified range.
FAN OK			Indicates the status of the power supply fans:
	Green		The fans are operational.
	Off		The fans are not operational.
