Mfr.part#:	PWR-C45-1400DC-P
Name:	PWR-C45-1400DC-P Cisco Catalyst 4500 PoE Enabled Power Supply
Detail:	Cisco Catalyst 4500 Power Supply PWR-C45-1400DC-P Catalyst 4500 1400W DC Power Supply w/Int PEM PWR-C45-1400DC-P
Availability:	In Stock
Condition:	New
Price:	$1,487.52

PWR-C45-1400DC-P

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

resources

reviews

overview

Overview

PWR-C45-1400DC-P Overview

Cisco PWR-C45-1400DC-P. Total power: 1400 W, AC input voltage: 100 - 240 V, Power protection features: Over current, Over power, Over voltage. Mean time between failures (MTBF): 316454 h, Compatible products: Cisco Catalyst 4500E. Product colour: Black, Number of fans: 1 fan(s). Heat dissipation: 1591 BTU/h, Operating altitude: -60 - 2000 m

Cisco Catalyst 4500 Series 1400W DC power supply with integrated power entry module (PEM).

Quick Specs

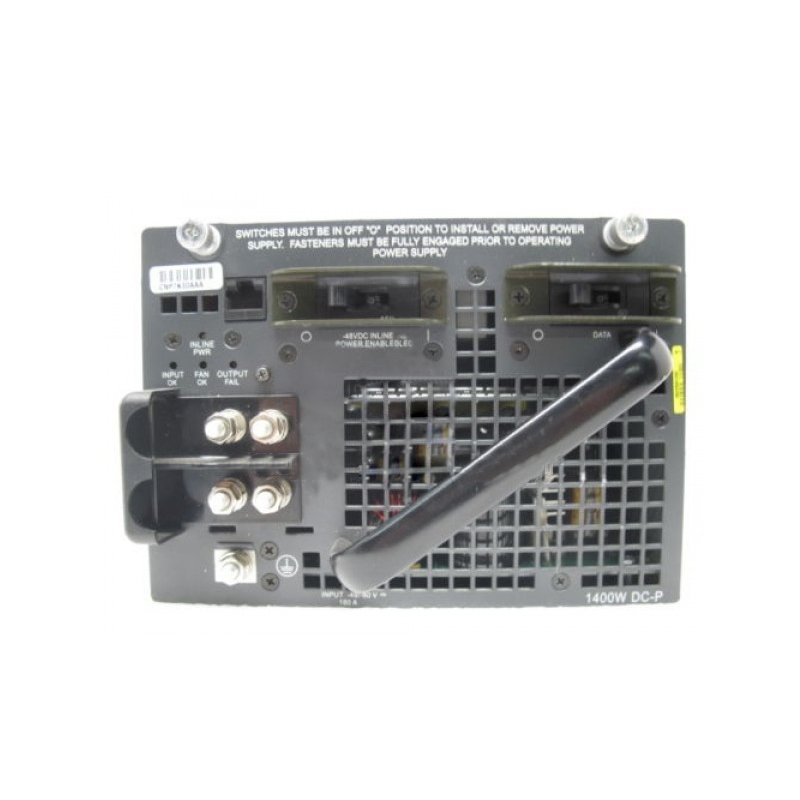

Figure 1 shows the appearance of PWR-C45-1400DC-P.

Table 1 shows the Quick Specs.

Product Code	PWR-C45-1400DC-P
DC-input voltage	–48 to –60 VDC (data only) –48 to –56 VDC (inline devices)
DC-input current	31 A @ –60 VDC (data only) 180 A maximum @ –48 VDC input (data and inline devices) The input power is configurable in the CLI. The Cisco IOS command is power dc input. Configure the switch software to match the requirements of your switch.
Power supply output capacity	Data – 12 VDC @120 A, – 3.3 VDC @ 10 A – 140 A total maximum (35 A maximum each per 5 channels) @–48 to –60 VDC input (inline devices) 1367 W+ 40 W redundant mode (data) 2267 W maximum in combined mode (data) 7500 W maximum each in redundant mode (PoE) 7280 W maximum in combined mode (PoE)
DC-input terminal block	Accepts 10 to 12 AWG size copper wire. The actual size of the wire needed is determined by the installer or the local electrician. Terminal block material is rated at 150°C
Output holdup time	4 ms

Get more information

Do you have any question about the PWR-C45-1400DC-P?

Summary Description

Cisco PWR-C45-1400DC-P, 1400 W, 100 - 240 V, Over current, Over power, Over voltage, 316454 h, Cisco Catalyst 4500E, Black

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco PWR-C45-1400DC-P?

Our lowest price for PWR-C45-1400DC-P is $1,487.52 Buy Now

Explore even more affordable prices for Cables and Other and Cisco products.

specifications

Specification

PWR-C45-1400DC-P Specification

PWR-C45-1400DC-P Specification
DC-input voltage	–48 to –60 VDC (data only) –48 to –56 VDC (inline devices)
DC-input current	31 A @ –60 VDC (data only) 180 A maximum @ –48 VDC input (data and inline devices) The input power is configurable in the CLI. The Cisco IOS command is power dc input. Configure the switch software to match the requirements of your switch.
Power supply output capacity	Data – 12 VDC @120 A, – 3.3 VDC @ 10 A – 140 A total maximum (35 A maximum each per 5 channels) @–48 to –60 VDC input (inline devices) 1367 W+ 40 W redundant mode (data) 2267 W maximum in combined mode (data) 7500 W maximum each in redundant mode (PoE) 7280 W maximum in combined mode (PoE)
DC-input terminal block	Accepts 10 to 12 AWG size copper wire. The actual size of the wire needed is determined by the installer or the local electrician. Terminal block material is rated at 150°C
Output holdup time	4 ms
Heat dissipation	159 BTUs/hr (data) 2905 BTUs/hr (data and voice)
