Mfr.part#:	PWR-C4-950WAC-R
Name:	PWR-C4-950WAC-R - Catalyst 9500 Power Supply
Detail:	950W AC Config 4 Power Supply front to back cooling PWR-C4-950WAC-R
Availability:	In Stock
Condition:	New
Price:	$1,121.00

PWR-C4-950WAC-R

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

PWR-C4-950WAC-R Overview

Cisco PWR-C4-950WAC-R. Total power: 950 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Product colour: Black, Stainless steel, Cooling type: Active, Number of fans: 1 fan(s). Mounting type: Rack mounting

950W AC Config 4 Power Supply front to back cooling.

Quick Specs

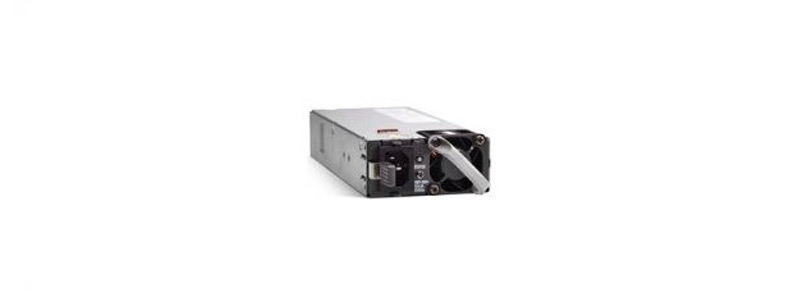

Figure 1 shows the appearance of PWR-C4-950WAC-R.

PWR-C4-950WAC-R Appearance

Table 1 shows the Quick Specs.

Product Code	PWR-C4-950WAC-R
Description	950W AC Config 4 Power Supply front to back cooling
Power Supply Feature	Support in the Catalyst 9500 Series
AC power max rating	950W
System power consumption	850W max
Input-voltage range and frequency	AC 115 to 230 VAC, 50 to 60 Hz
Power supply efficiency	94%
Total output BTU (Note: 1000 BTU/hr = 293W)	2901 BTU/hr (850W) max
Input current	AC 10A at 115VAC, 5 A at 230VAC
Output ratings	12V at 79A, 12V at 3A
Output holdup time	AC = 10 ms at maximum load
Power-supply input receptacles	AC IEC 60320 C16
Power cord rating	AC 15A

Get more information

Do you have any question about the PWR-C4-950WAC-R?

950W AC Config 4 Power Supply front to back cooling

950 W 90 - 264 V 47 - 63 Hz

Active

Black, Stainless steel

Summary Description

Cisco PWR-C4-950WAC-R, 950 W, 90 - 264 V, 47 - 63 Hz, 5 A, 10 ms, 94%

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Cisco PWR-C4-950WAC-R?

Our lowest price for PWR-C4-950WAC-R is $1,121.00 Buy Now

Explore even more affordable prices for Cisco and Cisco products.

specifications

Specification

PWR-C4-950WAC-R Specification

PWR-C4-950WAC-R Specifications
Description	950W AC Config 4 Power Supply front to back cooling
Power Supply Feature	Support in the Catalyst 9500 Series
AC power max rating	950W
System power consumption	850W max
Input-voltage range and frequency	AC 115 to 230 VAC, 50 to 60 Hz
Power supply efficiency	94%
Total output BTU (Note: 1000 BTU/hr = 293W)	2901 BTU/hr (850W) max
Input current	AC 10A at 115VAC, 5 A at 230VAC
Output ratings	12V at 79A, 12V at 3A
Output holdup time	AC = 10 ms at maximum load
Power-supply input receptacles	AC IEC 60320 C16
Power cord rating	AC 15A
