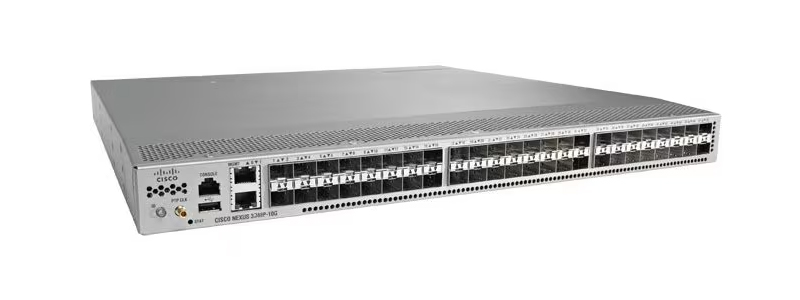

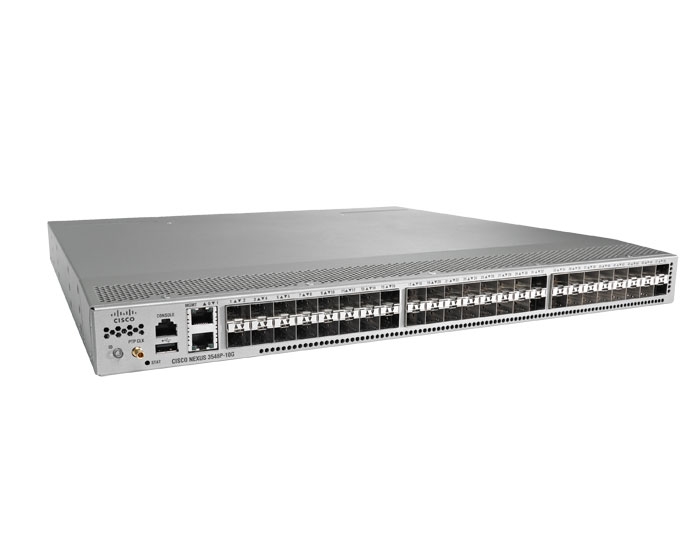

Cisco N3K-C3524P-10G Nexus 3500 Series Switch

N3K-C3524P-10G Specification

Product Number

N3K-C3524P-10G

Product Description

Cisco Nexus N3K-C3524P-10G Switch Layer 2 and layer 3 - 24 x 10G SFP+ active Ethernet ports - Ultra-Low latency - Managed

Physical

●  24 fixed SFP+ ports (1 or 10 Gbps); expandable to 48 ports

●  Dual redundant hot-swappable power supplies

●  Four individual redundant hot-swappable fans

●  One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type*

●  Two 10/100/1000-Mbps management ports

●  One RS-232 serial console port

●  One USB port

●  Locator LED

●  Locator LED button

Performance

●  480-Gbps switching capacity

●  Forwarding rate of 360 mpps

●  Line-rate traffic throughput (both Layer 2 and 3) on all ports

●  Configurable MTUs of up to 9216 bytes (jumbo frames)

Typical operating power

●  142W

Maximum power

●  245W

Typical heat dissipation

●  484 BTUs per hr

Maximum heat dissipation

●  835 BTUs per hr

Mode

Normal Mode

Warp Mode

Number of MAC addresses

64,000

8000

Number of IPv4 unicast routes

24,000

4,000

Number of IPv4 hosts

64,000

8000

Number of IPv4 multicast routes

8000

8000

Number of VLANS

4096

Number of ACL entries

4096

Number of spanning-tree instances

Rapid Spanning Tree Protocol (RSTP): 512

Multiple Spanning Tree (MST) Protocol: 64

Number of EtherChannels

24

Number of ports per EtherChannel

24

Buffer size

6 MB shared among 16 ports; 18 MB total

Boot flash memory

2 GB (3524P and 3548P models)

4 GB (3524X and 3548X models)

Power

Number of power supplies

2 (redundant)

Power supply types

●  AC (forward and reversed airflow)

●  DC (forward and reversed airflow)

Input voltage

100 to 240 VAC

Frequency

50 to 60 Hz

Power supply efficiency

89 to 91% at 220V

Cooling

Forward and reversed airflow schemes

●  Forward airflow:Port-side exhaust (air enters through fan tray and power supplies and exits through ports)

●  Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies)

Four individual, hot-swappable fans (3+1 redundant)

Environment

Dimensions (height x width x depth)

1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)

Weight

17.4 lb (7.9 kg)

Operating temperature

32 to 104° F (0 to 40°C)

Storage temperature

-40 to 158° F (-40 to 70°C)

Relative humidity (operating)

●  10 to 85% noncondensing

●  Up to 5 days at maximum (85%) humidity

●  Recommend ASHRAE data center environment

Relative humidity (nonoperating)

5 to 95% noncondensing

Altitude

0 to 10,000 ft (0 to 3000m)
