| Name: |
DINIC N-SW-16, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting |
| Mfr. Part #: |
N-SW-16
|
| Condition: | Refurbished |
| Availability: | In Stock |
| Brand: | DINIC |

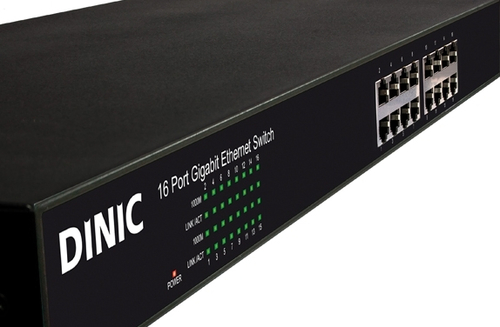

DINIC N-SW-16 network switch Gigabit Ethernet (10/100/1000) Black
Shipping:
Free ground shipping within United States up to 10LBS
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
-
Genuine Guarantee
-
Price Protection
-
Bulk Order Rebate
-
30 Day Return Policy
overview
specifications
reviews
N-SW-16 Overview
The 16 Port 10/100/1000Mbit Switch (N-SW-16) has been designed for easy installation, high performance and reliability. It delivers maximum speed on all ports, even if the full-duplex mode is fully utilized. Each port has automatic crossover detection, which allows the uplink to another switch without crossover cable. Through the 19 inch, 1U format, it can be mounted in any space saving 19 inch rack using the supplied mounting brackets.
IEEE 802.3/802u/802.3ab/8023x, 10BaseT/100BaseTX/1000BaseT, 16 x RJ-45, MAC 8K, 340 KB, 090 - 260 V AC, 50 - 60 Hz, 20 W, 2.9 kz
- Basic switching RJ-45 Ethernet ports quantity: 16 Console port: RJ-45
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8000 entries
- Rack mounting
Summary Description
DINIC N-SW-16, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
Need help with N-SW-16?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
N-SW-16 Specifications
Overview
Manufacturer:
DINIC
Stock:
In Stock.
Stock updated on:
2024-09-17
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45
Compatible memory cards
Not supported
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Yes
Auto MDI/MDI-X
Yes
Data transmission
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Design
Rack mounting
Yes
Product colour
Black
LED indicators
Yes
Certification
FCC Class B, CE
Performance
Buffer size
340 KB
Power
AC input voltage
90 - 260 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
20 W
Power management
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-20 - 90 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
440 mm
Depth
220 mm
Height
44 mm
Weight
2.9 kg
Packaging data
Manual
Yes
Wall mounting kit
Yes
