MSB7890-ES2F Overview

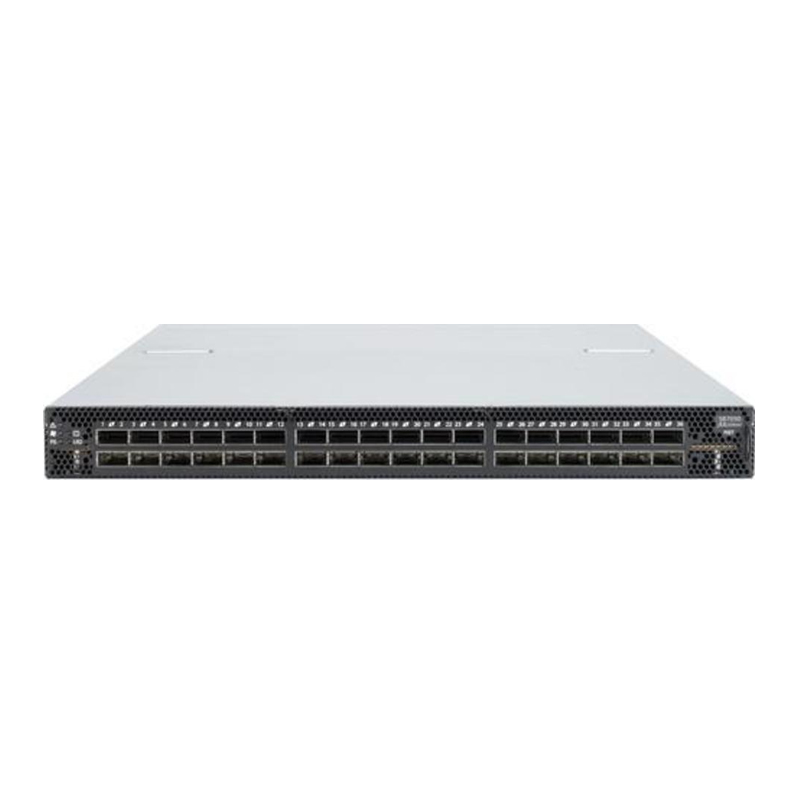

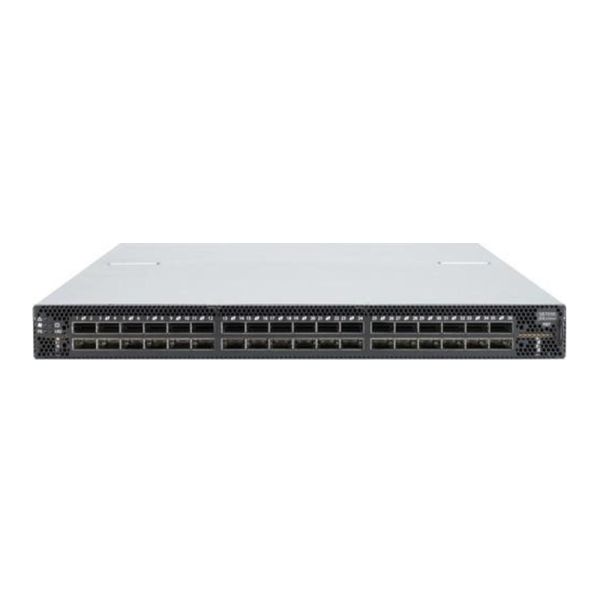

Mellanox Switch-IB 2 based EDR InfiniBand 1U Switch, 36 QSFP28 ports, 2 Power Supplies (AC), unmanaged, standard depth, P2C airflow, Rail Kit MSB7890-ES2F
Overview
Mellanox Technologies MSB7890-ES2F, Unmanaged, 100 Gigabit Ethernet, Rack mounting, 1U
Mellanox Switch-IB 2 based EDR InfiniBand 1U Switch, 36 QSFP28 ports, 2 Power Supplies (AC), unmanaged, standard depth, P2C airflow, Rail Kit
Built with Mellanox’s latest Switch-IB™ 2 InfiniBand switch device, EDR uses efficient 64/66 encoding while increasing the per lane signaling rate to 25Gb/s. The SB7890 provides up to thirty-six 100Gb/s full bi-directional bandwidth per port. These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters.
SB7890 is the world’s first smart network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation Protocol (SHArP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks, resulting in order of magnitude applications performance improvements.SB7890 enables efficient computing with features such as static routing, adaptive routing, and congestion control. These ensure the maximum effective fabric bandwidth by eliminating congestion hot spots.
The SB7890 switch has best-in-class design to support low power consumption. ATIS weighted power consumption is 122W for a fully-populated switch. Power is further reduced if not all ports are used or if partially utilized.
Quick Spec
| Model | MSB7890-ES2F |
| Performance | – 36 X EDR 100Gb/s ports in a 1U switch – 7Tb/s aggregate switch throughput – 90ns switch latency – 122W typical power consumption |
| Optimized Design | – 1+1 redundant & hot-swappable power – N+1 redundant & hot-swappable fans – 80 gold+ and energy star certified power supplies |
| Benefits | – Industry-leading switch platform in performance, power, and density – Designed for energy and cost savings – Collective communication acceleration – Quick and easy setup and management – Maximizes performance by removing fabric congestions – Backward compatible to FDR technology |
19’’, 36 QSFP28, 1U, EDR 7.2Tb/s, 122W
- Unmanaged
- Configuring Location Settings (CLI)
- Fiber
- Switching capacity: 7000 Gbit/s
- 1U Rack mounting
Summary Description
Mellanox Technologies MSB7890-ES2F, Unmanaged, 100 Gigabit Ethernet, Rack mounting, 1U
Need help with MSB7890-ES2F?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
MSB7890-ES2F Specification
| MSB7890-ES2F Specification | |
| Model | MSB7890-ES2F |
| Performance | – 36 X EDR 100Gb/s ports in a 1U switch – 7Tb/s aggregate switch throughput – 90ns switch latency – 122W typical power consumption |
| Optimized Design | – 1+1 redundant & hot-swappable power – N+1 redundant & hot-swappable fans – 80 gold+ and energy star certified power supplies |
| Benefits | – Industry-leading switch platform in performance, power, and density – Designed for energy and cost savings – Collective communication acceleration – Quick and easy setup and management – Maximizes performance by removing fabric congestions – Backward compatible to FDR technology |
INFINIBAND SWITCH | – 19’’ rack mountable chassis, 1U with redundant power supplies and fan units – 36 QSFP non blocking ports with aggregate throughput up to 7 Tb/s (EDR) |
| SWITCH SPECIFICATIONS | – Compliant with IBTA 1.21 and 1.3 – 9 virtual lanes: 8 data + 1 management – 256 to 4Kbyte MTU – Adaptive Routing – Congestion control – Port mirroring – IB Router* – 4X48K entry linear forwarding data base |
| CONNECTORS AND CABLING | – QSFP28 connectors – Passive copper or active fiber cables – Optical modules |
| POWER SUPPLY | – Dual redundant slots – Hot plug operation – Input range: 100 - 127 VAC, 200-240VAC – Frequency: 50-60 Hz, single phase AC, 4.5A, 2.9A |
