Mfr.part#:	MCX515A-CCAT
Name:	MCX515A-CCAT - Mellanox Network Cards

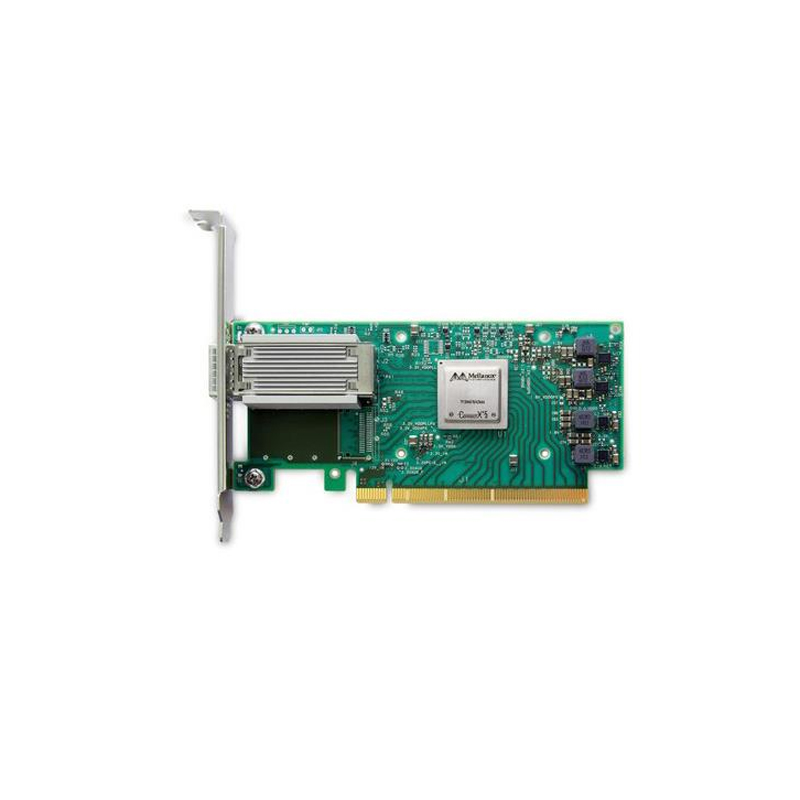

Detail:	Mellanox ConnectX-5 EN network interface card, 100GbE single-port QSFP28, PCIe3.0 x16, tall bracket MCX515A-CCAT
Availability:	In Stock
Condition:	New
GTIN:	7290108480375 7290108480375
Price:	$413.92

MCX515A-CCAT

Quantity:

Request Bulk Quote

Shipping:

Free ground shipping within United States up to 10LBS

᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.

Accepting POs:

We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.

Payment:

Pay by Visa.
Pay with your Visa credit card.
Pay with your Discover Card.
Pay with your America Express.
Pay with your JCB.
Pay with your Wire Transfer.

Genuine Guarantee
Price Protection
Bulk Order Rebate
30 Day Return Policy

Laila Jones

Technical Customer Support

CHAT
EMAIL
WHATSAPP

(800) 870-9487

overview

specifications

reviews

overview

Overview

MCX515A-CCAT Overview

Mellanox Technologies MCX515A-CCAT. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 100000 Mbit/s

Mellanox ConnectX-5 EN network interface card, 100GbE single-port QSFP28, PCIe3.0 x16, tall bracket

ConnectX-5 MCX515A-CCAT Ethernet network interface cards provide high performance and flexible solutions with one port of 100GbE connectivity, 750ns latency, up to 148 million messages per second (Mpps). For storage workloads, the 100 Gigabit Ethernet adapter card delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads.

Quick Spec

Table 1 shows the quick spec.

Model	MCX515A-CCAT
Physical	Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile Connector: Single QSFP28 (copper and optical)
PCI Express Gen3:	SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Ethernet	100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 56GBASE-R4, 50G Ethernet Consortium, 40GBASE-CR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G Ethernet Consortium, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X
Data Rate	1/10/25/40/50/100 Gb/s Ethernet

Get More Information

Do you have any question about the MCX515A-CCAT?

100GbE Single-Port QSFP28 PCIe3.0 x16 Tall Bracket ROHS R6

Manufacturer: Mellanox Technologies Ltd

Manufacturer Part Number: MCX515A-CCAT

Manufacturer Website Address: http://www.mellanox.com

Brand Name: Mellanox

Product Line: ConnectX-5 EN

Product Model: MCX515A-CCAT

Product Name: ConnectX-5 EN Network Interface Card

Product Type: 100Gigabit Ethernet Card

Wired

PCI Express Fiber

100000 Mbit/s

Internal

Summary Description

Mellanox Technologies MCX515A-CCAT, Internal, Wired, PCI Express, Fiber, 100000 Mbit/s

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Mellanox MCX515A-CCAT?

Our lowest price for MCX515A-CCAT is $413.92 Buy Now

Explore even more affordable prices for Mellanox and Mellanox products.

specifications

Specification

MCX515A-CCAT Specification

MCX515A-CCAT Specification
Model	MCX515A-CCAT
Physical	Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile Connector: Single QSFP28 (copper and optical)
PCI Express Gen3:	SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible)
Ethernet	100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 56GBASE-R4, 50G Ethernet Consortium, 40GBASE-CR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G Ethernet Consortium, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X
Data Rate	1/10/25/40/50/100 Gb/s Ethernet
