Locom5 Overview
Ubiquiti / UBNT 5.8G Broad Band Outdoor Wireless, CPE Router 300m 3km, Panel NSM5 Locom5
Overview
Locom5 Overview
Ubiquiti LocoM5, 150 Mbit/s, Ethernet LAN
The low cost, high performance, and small form factor of NanoStationM and NanoStationlocoM make them extremely versatile and economical to deploy.
Quick Specs

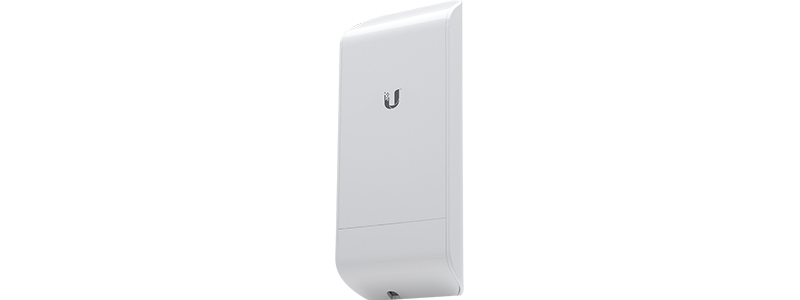

Figure 1 shows the appearance of Locom5.
| Product Code | Locom5 |
| Power Supply (PoE) | 24V, 0.5A |
| Max. Power Consumption 5.5W | 5.5W |
| Memory | 64 MB DDR2, 8 MB Flash |
| Dimensions | 161 x 31 x 80 mm |
Product Details

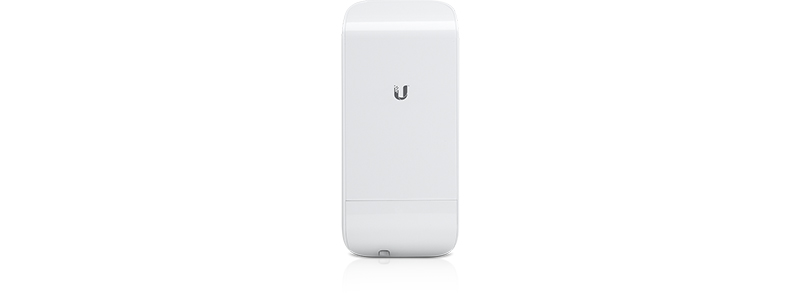

Figure 2 shows the front panel of Locom5.

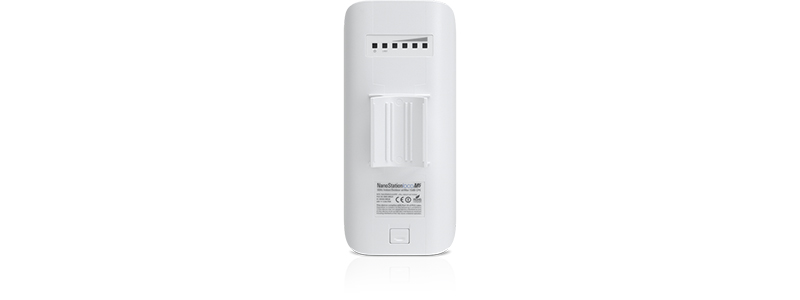

Figure 3 shows the back panel of Locom5.

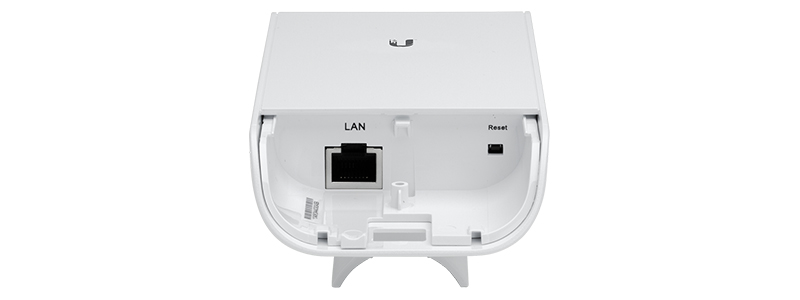

Figure 4 shows the bottom panel of Locom5.
Locom5 provides these features:
- Versatile Mounting
- Improved Surge Protection
- Efficient Footprint
- Quick Installation
Compare to Similar Items
| Module | Locom5 | |
| Power Supply (PoE) | 24V, 0.5A | 24V, 0.5A |
| Max. Power Consumption 5.5W | 5.5W | 5.5W |
| Memory | 64 MB DDR2, 8 MB Flash | 32 MB SDRAM, 8 MB Flash |
| Dimensions | 161 x 31 x 80 mm | 161 x 31 x 80 mm |
5GHz, 13dBi, Atheros MIPS 24KC, 400MHz, 32MB SDRAM, 8MB Flash, Fast Ethernet, White
- 150 Mbit/s
- Ethernet LAN
- Antenna design: MIMO 13 dBi
Summary Description
Ubiquiti LocoM5, 150 Mbit/s, Ethernet LAN
Need help with Locom5?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
Locom5 Specification
Locom5 Specification | |
Dimensions | 161 x 31 x 80 mm |
Power Supply (PoE) | 24V, 0.5A |
Max. Power Consumption 5.5W | 5.5W |
Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
Operating Frequency MHz |
|
Gain | 13 dBi |
Networking Interface | (1) 10/100 Ethernet Port |
Processor Specs | Atheros MIPS 24Kc, 400 MHz |
Memory | 64 MB DDR2, 8 MB Flash |
Frequency | 5 GHz |
Cross-pol Isolation | 20 dB Minimum |
Max. VSWR | 1.4:1 |
Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
Polarization | Dual Linear |
Enclosure | Outdoor UV Stabilized Plastic |
Mounting | Pole-Mount (Kit Included) |
Operating Temperature | -30 to 75° C |
Operating Humidity | 5 to 95% Noncondensing |
Wireless Approvals | FCC Part 15.247, IC RS210, CE |
RoHS Compliance | Yes |
Shock & Vibration | ETSI300-019-1.4 |
Frequently Asked Questions
What is the effective operational range of the Ubiquiti LocoM5? +
The LocoM5 is engineered for high-performance point-to-point and point-to-multipoint wireless bridging. While its form factor is compact, it is highly effective for links ranging from 300 meters up to 3 kilometers depending on clear line-of-sight conditions, environmental interference, and the specific alignment of your directional antenna arrays.
Does the LocoM5 support 5GHz frequency bands for data transmission? +
Yes, the LocoM5 is specifically designed to operate in the 5.8GHz broadband spectrum. Utilizing this frequency allows for cleaner signal propagation in crowded 2.4GHz environments, ensuring more stable throughput and reduced latency for your outdoor wireless infrastructure deployments.
What makes the Ubiquiti LocoM5 suitable for outdoor deployments? +
This device features a rugged, weather-resistant enclosure built to withstand harsh outdoor conditions. Its durable construction protects internal components from moisture and temperature fluctuations, making it an ideal choice for campus-wide connectivity, building-to-building bridging, or remote outdoor surveillance backhaul.
How do I power the LocoM5 unit during installation? +
The LocoM5 utilizes Passive Power over Ethernet (PoE) technology. This simplifies installation by allowing you to deliver both data and electrical power through a single Ethernet cable, significantly reducing the amount of cabling required at the mounting site and providing greater flexibility for deployment locations.
What is the maximum throughput performance expected from the LocoM5? +
The LocoM5 offers reliable performance capable of delivering real TCP/IP throughput up to 150+ Mbps. This bandwidth capacity is sufficient for streaming high-definition video, supporting VoIP services, and handling standard data transmission needs across your wireless bridge link.
Is the LocoM5 compatible with other airMAX products? +
The LocoM5 is fully compatible with the Ubiquiti airMAX TDMA protocol suite. This allows you to integrate the unit into existing airMAX infrastructure seamlessly, improving overall network efficiency, reducing latency, and increasing scalability when compared to standard 802.11 Wi-Fi protocols.
What are the common deployment scenarios for the LocoM5? +
IT professionals typically deploy the LocoM5 for building-to-building bridges, wireless backhaul for remote IP cameras, or as a cost-effective CPE for WISP (Wireless Internet Service Provider) applications. Its compact size allows for discreet installation on poles, walls, or rooftops while maintaining a strong signal profile.
Does the LocoM5 require complex manual configuration for basic links? +
The device is managed through the airOS interface, which provides a user-friendly dashboard for configuring bridge or router modes. Most standard point-to-point links can be established quickly by adjusting channel width, frequency, and signal alignment settings within the intuitive web-based utility.
