HPE JW825A - Aruba Instant IAP335 Access Point
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
JW825A
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com SAM.gov Registered Vendor CAGE Code : 23P86
overview
specifications
resources
faqs
reviews
JW825A Overview

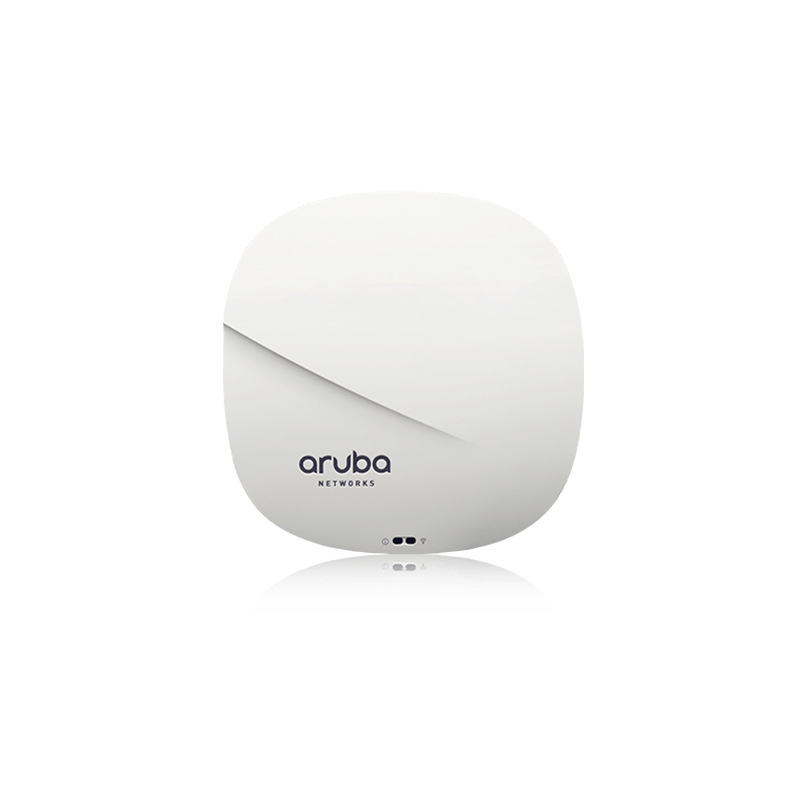

Aruba Instant IAP-335 (US) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP JW825A
Overview
JW825A Overview
Aruba Instant IAP-335 (US), 2300 Mbit/s, 600 Mbit/s, 1733 Mbit/s, 10,100,1000,2500,5000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at,..., 256 user(s)
JW825A is the Aruba Instant IAP-335 (US) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP. The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks.
Quick Spec
SKU | JW825A |
Product Model | Aruba Instant IAP-335 (US) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP |
Wireless LAN Standard | IEEE 802.11ac |
Frequency Band | 5 GHz 2.40 GHz |
Antennas | 12 Internal Antennas |
Wireless Transmission Speed | 2.50 Gbit/s |
Form Factor | Wall Mountable Ceiling Mountable |
Dimension (H × W × D) | 2" × 8.9" × 8.8" |
Product Details
The benefits of Aruba AP-330 include:
• Dual Radio 802.11ac access point with Multi-User MIMO
• Antenna polarization diversity for optimized RF performance
- Each 5 GHz radio chain has a switch and two antennas.
- Software controlled; Horizontally and vertically polarized.
• HPE Smart Rate uplink port that scales up to 5Gbps
• Built-in Bluetooth Low-Energy (BLE) radio
• Advanced Cellular Coexistence (ACC)
• RF Management
- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.
- The Aruba 330 Series Access Points can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.
• Spectrum analysis
- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4 GHz and 5 GHz radio bands to identify sources of RF interference from HT20 through VHT160 operation.
• Security
- Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.
- IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.
- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.
- SecureJack-capable for secure tunneling of wired Ethernet traffic.
• Intelligent Power Monitoring (IPM)
- Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities based on the amount of power available to the unit.
- Software configurable to disable capabilities in certain orders. For the 330 Series Access Points, by default, the USB interface will be the first feature to turn off if the AP power consumption exceeds the available power budget.
Compare to Similar Item
SKU | JW825A | |
Product Model | Aruba AP-335 802.11n/ac 4x4:4 MU-MIMO Dual Radio Integrated Antenna 2.5+1 GbE AP | Aruba Instant IAP-335 (US) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP |
Wireless LAN Standard | IEEE 802.11ac | IEEE 802.11ac |
Frequency Band | 5 GHz 2.40 GHz | 5 GHz 2.40 GHz |
Antennas | 12 Internal Antennas | 8 Internal Antennas |
Wireless Transmission Speed | 2.50 Gbit/s | 2.50 Gbit/s |
Form Factor | Wall Mountable Ceiling Mountable | Wall Mountable Ceiling Mountable |
Aruba Instant IAP-335 (US) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP
- 2.4 GHz 600 Mbit/s
- 5 GHz 1733 Mbit/s
- Maximum data transfer rate: 2300 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
- Power over Ethernet (PoE)
- Antennas quantity: 4 Internal Integrated antenna
Summary Description
Aruba Instant IAP-335 (US), 2300 Mbit/s, 600 Mbit/s, 1733 Mbit/s, 10,100,1000,2500,5000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at,..., 256 user(s)
Need help with JW825A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
JW825A Specification
JW825A Specification | |
General Information | |
Product Name | Aruba Instant IAP-335 (US) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP |
Manufacturer Part Number | JW825A |
Product Series | 330 |
Product Model | AP-335 |
Product Type | Wireless Access Point |
Technical Information | |
Wireless LAN Standard | IEEE 802.11ac |
Frequency Band | 5 GHz 2.40 GHz |
Total Number of Antennas | 12 |
Number of Internal Antennas | 12 |
Wireless Transmission Speed | 2.50 Gbit/s |
MIMO Technology | Yes |
Beamforming Technology | Yes |
Interfaces/Ports | |
Ethernet Technology | Gigabit Ethernet |
Number of Network (RJ-45) Ports | 2 |
PoE (RJ-45) Port | No |
PoE PD Port | Yes |
VGA | No |
HDMI | No |
USB | Yes |
Powerline | No |
Management Port | Yes |
Physical Characteristics | |
Form Factor | Wall Mountable Ceiling Mountable |
Dimension (H × W × D) | 2" × 8.9" × 8.8" |
Resources
Frequently Asked Questions
What are the primary performance advantages of the Aruba IAP-335 4x4:4 MU-MIMO configuration? +
The Aruba IAP-335 features a 4x4:4 MU-MIMO architecture, which significantly enhances multi-user throughput in dense environments. By utilizing four spatial streams, this access point can simultaneously communicate with multiple client devices, reducing contention and airtime efficiency loss. This makes it an ideal solution for modern office spaces where high-bandwidth applications require consistent, reliable wireless performance for numerous connected users at once.
How does the dual-radio 802.11ac design of the JW825A benefit my network capacity? +
The Aruba IAP-335 utilizes concurrent dual-radio operations, supporting both 2.4GHz and 5GHz frequency bands. By leveraging 802.11ac Wave 2 technology, you gain higher data rates and improved spectral efficiency. This allows for better traffic management and load balancing across your wireless infrastructure, ensuring that high-performance clients on the 5GHz band do not get throttled by legacy devices operating on the 2.4GHz spectrum.
What is the significance of the 2.5GbE and 1GbE uplink ports on the IAP-335? +
The inclusion of a 2.5GbE Smart Rate port alongside a secondary 1GbE port provides essential flexibility for network bottlenecks. The 2.5GbE uplink is designed to bypass the traditional 1Gbps throughput limit, allowing you to fully utilize the wireless speeds provided by the 802.11ac radios. This ensures your backhaul capacity can keep pace with high-density wireless traffic without the access point becoming a point of congestion.
Can the Aruba IAP-335 be deployed without a physical mobility controller? +
Yes, this model features Aruba Instant technology, which allows it to function as a controller-less access point. In this configuration, one AP acts as a virtual controller, orchestrating the network and simplifying deployment for smaller branch offices or distributed enterprise sites. This eliminates the need for additional hardware investment while maintaining centralized management capabilities through the intuitive Aruba Instant interface.
What environment is the Aruba IAP-335 (US) model best suited for? +
The IAP-335 is an indoor-rated access point built for demanding, high-density enterprise environments. Its integrated antenna array and robust hardware design make it perfect for conference rooms, large office floors, and classrooms where many users require stable connectivity simultaneously. It is optimized for ceiling or wall mounting to provide maximum coverage area within standard indoor facility layouts.
How do I manage the Aruba JW825A within an existing Aruba environment? +
This device is highly versatile and can be managed via several methods, including the Aruba Instant virtual controller, Aruba AirWave, or the Central cloud-based platform. For enterprise-grade networks, it can also be integrated into a larger mobility controller-based architecture, offering seamless roaming and unified policy enforcement across your campus or branch network from a single pane of glass.
Are there specific power requirements I should be aware of for the IAP-335? +
The Aruba IAP-335 supports Power over Ethernet (PoE), compliant with 802.3at standards. To ensure the AP operates at full 4x4:4 performance without disabling specific radio features or MIMO spatial streams, ensure your upstream switch provides adequate PoE+ power. Using an underpowered PoE source may lead to limited functionality; verify your switch's power budget during the planning phase of your deployment.
Does the JW825A support advanced security features like WPA3? +
The Aruba IAP-335 supports robust security protocols consistent with enterprise standards. It includes integrated wireless intrusion protection and secure authentication methods. While specific security feature sets are firmware-dependent, the hardware is engineered to support sophisticated encryption and client authentication mechanisms, ensuring your wireless traffic remains protected against unauthorized access in accordance with your organization's specific security policies and compliance requirements.
How can I obtain a bulk quote for Aruba JW825A units through BuyRouterSwitch.com? +
To receive a competitive bulk quote for your Aruba networking hardware, please contact our dedicated sales team directly through our website. Provide the SKU (JW825A) and the total quantity required for your project. Our specialists review large-volume requests daily to ensure you receive aggressive pricing tailored to your specific organizational budget and procurement timeline.
Why should I choose BuyRouterSwitch.com for my enterprise hardware procurement? +
BuyRouterSwitch.com is a trusted source for high-quality enterprise equipment, offering streamlined access to genuine Aruba networking components. We prioritize providing our customers with authentic, factory-sealed hardware ready for immediate integration into your production environment. By maintaining a deep inventory of essential networking assets, we help IT teams simplify their procurement cycle and secure the critical infrastructure needed for complex enterprise deployments.
