Mfr.part#:

JW319A

Name: HPE JW319A - Aruba IAP324 Access Point
Detail:
Aruba IAP-324 (RW) Instant 4x4:4 11ac AP JW319A
Availability: In Stock
Condition: New
GTIN: 0190017022208
icon
  • 0190017022208
  • 190017022208

JW319A

Aruba IAP-324 (RW) Instant 4x4:4 11ac AP JW319A
Call for Price
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
Payment:
  • Pay by Visa.
  • Pay with your Discover Card.
  • Pay with your America Express.
  • Pay with your JCB.
  • Pay with your Wire Transfer.
  • Genuine Guarantee
  • Price Protection
  • Bulk Order Rebate
  • 30 Day Return Policy
overview
specifications
reviews
Overview

JW319A Overview

Aruba IAP-324. Maximum data transfer rate: 1750 Mbit/s, Wi-Fi data rate (max): 1750 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. USB connector type: USB Type-A, WAN connection: Ethernet (RJ-45). Power consumption (max): 20 W. Product colour: White, Cable lock slot type: Kensington, Certification: FCC CE R&TTE 1995/5/EC Low Voltage 72/23/EEC EN 300 328 EN 301 489 EN 301 893 UL/IEC/EN 60950 EN.... Antenna features: Detachable antenna, Antenna connector type: RP-SMA

Multifunctional Aruba 320 Series Access Points provide the best IEEE 802.11ac Wi-Fi connectivity and user experience. Featuring Aruba enhanced ClientMatch and Aruba Beacon technologies, the 320 series enables the highest capacity, performance, and efficiency in extremely high density environments.

Quick Specs

Figure 1 shows the appearance of JW319A.
JW319A

Table 1 shows the Quick Specs.

Product Code

JW319A

Form Factor

In-ceiling

Connectivity Technology

Wireless

Data Transfer Rate

1.733 Gbps

Interfaces

2 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - RJ-45

Power Consumption Operational

20 Watt

Antenna

Internal

Frequency Band

2.4 GHz, 5 GHz

Capacity

Wireless clients: 255 ¦ BSSIDs per radio: 16

Product Details

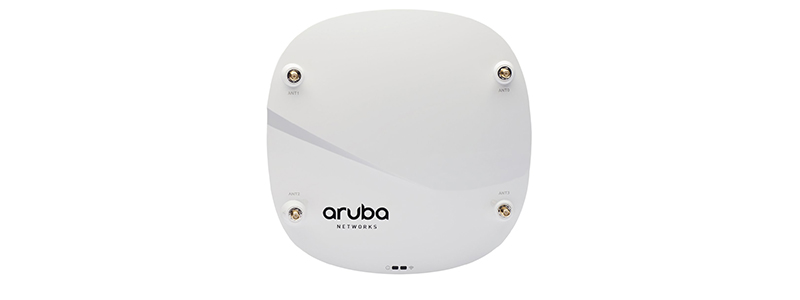

Figure 2 shows the front panel of JW319A.
JW319A front

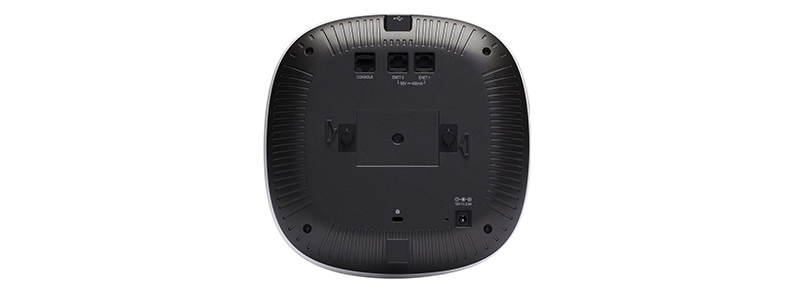

Figure 3 shows the back panel of JW319A.
JW319A back

JW319A provides these features:

Bringing a Switch-like Experience to 802.11ac for High Density Environments

  • The Aruba 320 Series Access Points are ultra-fast and designed for high-density environments.
  • Includes a second 1GigE port that provides network and power redundancy to enhance the network reliability while also boosting uplink performance with link aggregation.
  • Can be managed by a Mobility Controller or deployed in controllerless Aruba Instant mode.
  • Integrated BLE Beacon to simplify management of a large-scale network of battery-powered Aruba Beacons.

Intelligent App Visibility and Control

  • Aruba 320 Series Access Points feature AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for thousands of applications in a range of categories.

Threat Protection and Security

  • Aruba 320 Series Access Points feature integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.
  • IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.
  • Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.

Compare to Similar Items

Table 2 shows the comparison of JW319A.

Module

JW319A

JW320A

Form Factor

In-ceiling

In-ceiling

Connectivity Technology

Wireless

Wireless

Data Transfer Rate

1.733 Gbps

1.733 Gbps

Interfaces

2 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - RJ-45

2 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - RJ-45

Power Consumption Operational

20 Watt

20 Watt

Antenna

Internal

Internal

Frequency Band

2.4 GHz, 5 GHz

2.4 GHz, 5 GHz

Capacity

Wireless clients: 255 ¦ BSSIDs per radio: 16

Wireless clients: 255 ¦ BSSIDs per radio: 16

Get More Information

Do you have any question about the JW319A?

Contact us now via Live Chat or support@buyrouterswitch.com.

802.11ac, 2.4/5 GHz, 4x4 MIMO, 1733 Mbps, 8 x RP-SMA, DSSS, 24 dBm, PoE, 10/100/1000BASE-T, 950 g, Instant mode, Restricted regulatory domain: Rest of World

  • 2.4 GHz
  • 5 GHz
  • Maximum data transfer rate: 1750 Mbit/s
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
  • Power over Ethernet (PoE)
  • Detachable antenna

Summary Description

Aruba IAP-324, 1750 Mbit/s, 1750 Mbit/s, 10,100,1000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at,..., 80 MHz, DSSS

100% Low Price Guarantee

We offer high-quality network parts at wholesale prices that are guaranteed to be low.

What is the minimum price for the Aruba JW319A?

Click hereto find the lowest discounted price for JW319A.

Explore even more affordable prices for Aruba and Aruba products.

Specification

JW319A Specification

JW319A specification

Networking

Form Factor

In-ceiling

Connectivity Technology

Wireless

Data Transfer Rate

1.733 Gbps

Line Coding Format

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM

Data Link Protocol

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Spread Spectrum Method

OFDM, DSSS

Frequency Band

2.4 GHz, 5 GHz

Capacity

Wireless clients: 255 ¦ BSSIDs per radio: 16

Compliant Standards

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

122 °F

Humidity Range Operating

5 - 95% (non-condensing)

General

Device Type

Wireless access point

Width

8 in

Depth

8 in

Height

2.2 in

Expansion / Connectivity

Interfaces

2 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x console - RJ-45

Power

Power Over Ethernet (PoE) Supported

PoE

Power Consumption Operational

20 Watt

Antenna

Antenna

Internal

Antenna Qty

8
