HPE JW009A - Aruba AP Indoor Antenna
-
$67.20 In Stock - Ships Worldwide Order by 2:00 PM ET for Overnight ShippingWas: $77.28You Save: $10.08 13% OFF
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
JW009A
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com SAM.gov Registered Vendor CAGE Code : 23P86
overview
specifications
resources
faqs
reviews
JW009A Overview
AP-ANT-1W 2.4-2.5GHz (4dBi)/4.9-5.875GHz (6dBi) Hi Gain Dual-band Omni-Dir Indoor Antenna JW009A
Overview
JW009A Overview
HPE AP-ANT-1W, 5.8 dBi, 2.4-2.5/4.9-5.875 GHz, 3.8 dBi, 5.8 dBi, 50 Ω, Omni-directional antenna
HPE Aruba AP-ANT-1W - Antenna - 4 dBi (for 2400 MHz - 2500 MHz), 6 dBi (for 4900 MHz - 5875 MHz) - omni-directional - indoor - white
Quick Specs

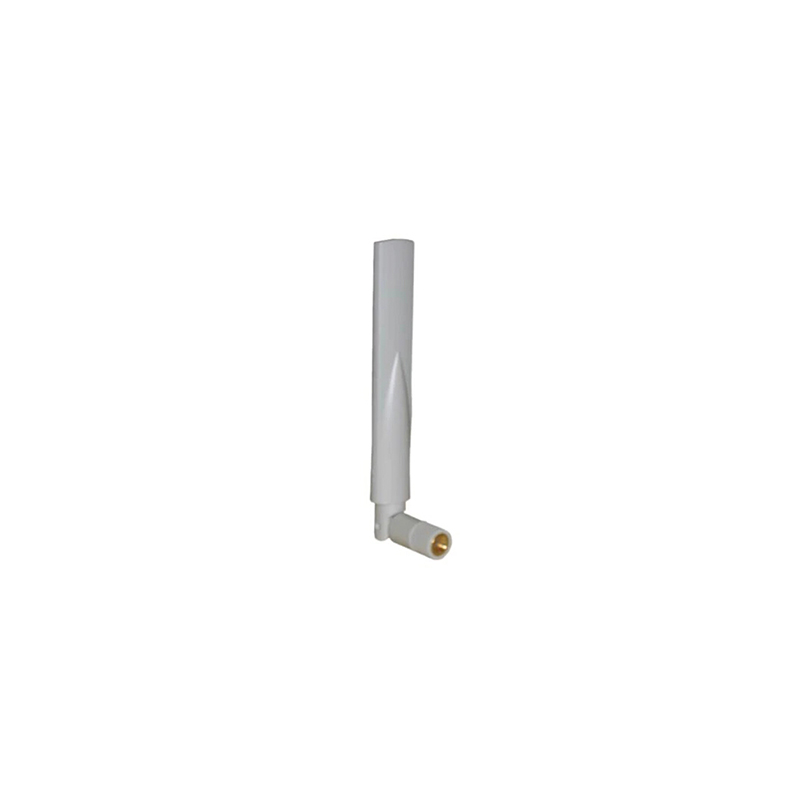

Figure 1 shows the appearance of JW009A.
| Product Code | JW009A |
| Product Type | Antenna |
| Product Material | Acrylonitrile butadiene styrene (ABS) |
| Antenna Placing / Mounting | Indoor |
| Frequency Range | 2.4 - 2.5 GHz, 4.9 - 5.875 GHz |
Product Details
Figure 2 shows the front panel of JW009A.
JW009A provides these features:
- Omnidirectional
- Self-articulating mount
- Compatible with select Aruba access points
- Supports 2.4GHz and 5GHz systems
- RP-SMA connector
AP-ANT-1W, 2.4-2.5/4.9-5.875 GHz, 3.8/5.8 dBi, 50 ohms
- Omni-directional antenna RP-SMA White
- 5.8 dBi
- 2.4-2.5/4.9-5.875 GHz
- 50 Ω
- Linear polarization
- 2 W
Summary Description
HPE AP-ANT-1W, 5.8 dBi, 2.4-2.5/4.9-5.875 GHz, 3.8 dBi, 5.8 dBi, 50 Ω, Omni-directional antenna
Need help with JW009A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
JW009A Specification
JW009A Specification | |
General | |
Product Type | Antenna |
Product Material | Acrylonitrile butadiene styrene (ABS) |
Width | 0.7 in |
Depth | 1.5 in |
Height | 5 in |
Enclosure Color | White |
Antenna | |
Antenna Placing / Mounting | Indoor |
Frequency Range | 2.4 - 2.5 GHz, 4.9 - 5.875 GHz |
Gain | 4 dBi (for 2400 MHz - 2500 MHz), 6 dBi (for 4900 MHz - 5875 MHz) |
Directivity | Omni-directional |
Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
Horizontal Beamwidth | 360° |
Vertical Beamwidth | 50° (at 2.4 - 2.5 GHz), 25° (at 4.9 - 5.875 GHz) |
Impedance | 50 Ohm |
Cabling & Wiring | |
Connector Provided | 1 x RP-SMA male |
Miscellaneous | |
Features | Linear vertical polarization |
Environmental Parameters | |
Min Operating Temperature | 14 °F |
Max Operating Temperature | 131 °F |
Resources
Documents
Frequently Asked Questions
What frequency ranges does the HPE AP-ANT-1W antenna support? +
The HPE JW009A AP-ANT-1W is a versatile dual-band indoor antenna. It is engineered to support the 2.4-2.5 GHz frequency range, providing 4dBi of gain, and the 4.9-5.875 GHz range, which delivers 6dBi of gain. This wide coverage ensures compatibility with both standard Wi-Fi bands for high-performance enterprise wireless environments.
Is the AP-ANT-1W suitable for outdoor wireless deployments? +
The AP-ANT-1W is specifically designed as an indoor antenna. It lacks the ruggedized housing and ingress protection required to withstand environmental elements such as moisture, dust, and temperature extremes typically found in outdoor settings. For outdoor wireless deployments, we recommend selecting a dedicated outdoor-rated antenna from the HPE Aruba portfolio to ensure hardware longevity and reliable signal propagation.
What is the primary radiation pattern of the JW009A antenna? +
This antenna features an omnidirectional radiation pattern. This design is highly effective for indoor coverage scenarios where you need to distribute a wireless signal evenly in a 360-degree horizontal plane. It is an ideal choice for open-plan offices, conference rooms, or corridors where maximum signal dispersion is required to ensure consistent connectivity for mobile devices across a large floor area.
How does the AP-ANT-1W perform across different frequency bands? +
The JW009A offers optimized performance by providing varying gain levels based on the frequency utilized. By delivering 4dBi at the 2.4 GHz band and a higher 6dBi at the 5 GHz band, it effectively balances signal penetration and data throughput. This makes it an excellent choice for modern wireless networks that prioritize higher speed and capacity on the 5 GHz spectrum.
Does the JW009A require specific mounting hardware for installation? +
The AP-ANT-1W is designed for direct mounting to compatible HPE Aruba access points. Installation typically involves connecting the antenna to the RP-SMA connectors on the AP chassis. Because it is a compact indoor unit, it integrates seamlessly into existing enterprise wireless architectures without the need for complex mounting kits or additional cabling, simplifying the deployment process for your IT infrastructure team.
Can I use the AP-ANT-1W with non-Aruba access points? +
While the JW009A uses standard physical interfaces, it is specifically tuned and tested for HPE Aruba access points. Using this antenna with third-party hardware may result in impedance mismatches or sub-optimal signal patterns, which can negatively impact overall network performance. To maintain the integrity and reliability of your wireless environment, we strongly recommend deploying this antenna strictly within supported Aruba infrastructure configurations.
What are the physical mounting considerations for the HPE JW009A? +
As a lightweight, indoor omnidirectional antenna, the JW009A should be mounted in a clear area to prevent signal obstruction. Avoid placing the antenna near large metal objects or high-density cabling, which can induce signal reflection or interference. Proper positioning relative to the access point ensures that the dual-band performance remains consistent throughout your facility, maintaining high SNR for client devices.
Does this antenna support MIMO configurations? +
The HPE AP-ANT-1W is an individual antenna unit. When deploying it in a MIMO configuration, ensure you are utilizing the correct number of antennas to match the spatial stream capabilities of your specific access point model. For optimal results, consult the data sheet for your access point to ensure the antenna configuration aligns with the radio chain requirements for your chosen Wi-Fi standard.
