JL678A - Aruba 6100 Series Switch
-
$1,334.00 In Stock - Ships Worldwide Order by 2:00 PM ET for Overnight ShippingWas: $1,534.10You Save: $200.10 13% OFF
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
- Authenticity: Original Genuine OEM
JL678A
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com SAM.GOV CAGE Code : 23P86
overview
specifications
resources
faqs
reviews
JL678A Overview
Aruba 6100 24G 4SFP+ Switch JL678A
Overview
JL678A Overview
Aruba 6100 24G 4SFP+ Switch JL678A
The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks.
Quick Specs

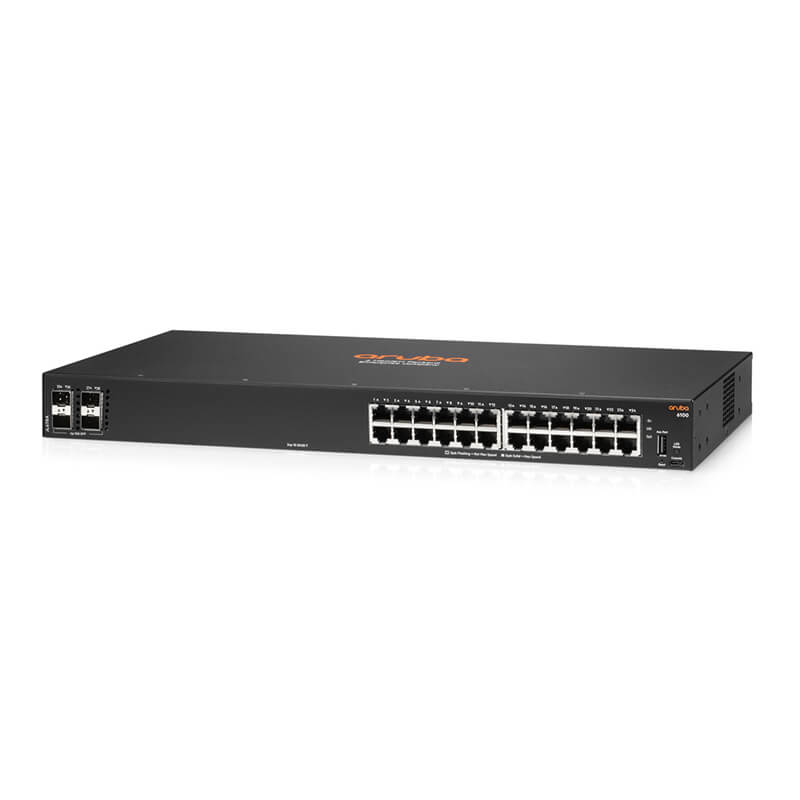

Figure 1 shows the appearance of JL678A.
| Product Code | JL678A |
| Product type | Managed Switch |
| Ports | 24 x 10/100/1000BASE-T |
| Power supply | Internal |
Product Details

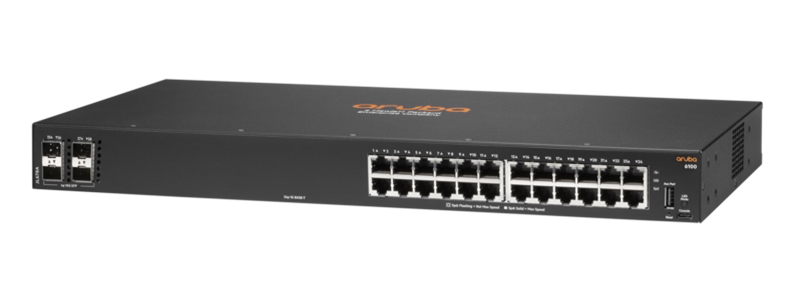

Figure 2 shows the front panel of JL678A.

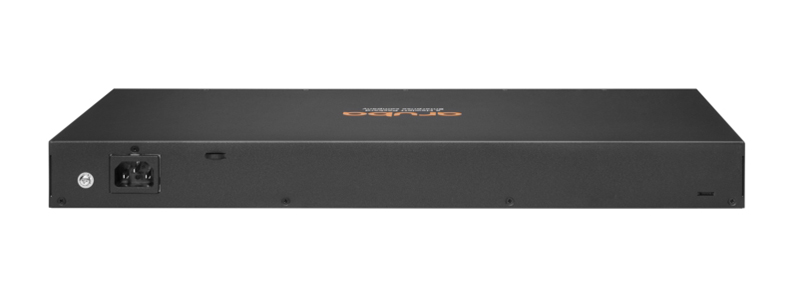

Figure 3 shows the back panel of JL678A.
JL678A provides these features:
- Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
- Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
- Compact and fanless 12 port model for quiet deployment
- Manage via single pane of glass with Aruba Central across wired, wireless, and WAN
- Automated configuration and verification with Aruba NetEdit
- Software defined ready with REST APIs
- Simplify adds, moves and changes with colorless ports
Compare to Similar Items
| Module | JL678A | |
| Product type | Managed Switch | Switch |
| Ports | 24 x 10/100/1000BASE-T | 24 x 10/100/1000BASE-T |
| Power supply | Internal | Internal |
Aruba 6100 24G 4SFP+ Switch
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: USB
- 10G support
- MAC address table: 8192 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included
Summary Description
HPE Aruba Networking Aruba 6100 24G 4SFP+, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Need help with JL678A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
JL678A Specification
JL678A specification | |
Product name | HPE Aruba 6100 24G Switch |
Product type | Managed Switch |
Connectivity | |
Ports | 24 x 10/100/1000BASE-T |
Other ports | 4 x SFP+ |
Free module slots | - |
Performance | |
Stackable | No |
PoE | No |
General | |
Managed | Yes |
Ventilation | Fan |
Width | 17.4 in |
Depth | 7.9 in |
Height | 1.7 in |
Physical properties | |
Form factor | Rack-mount |
Features | |
Power supply | Internal |
Resources
Documents
Frequently Asked Questions
What are the primary port specifications for the Aruba 6100 JL678A switch? +
The Aruba 6100 JL678A features 24 fixed 10/100/1000BASE-T ports for standard device connectivity and 4 fixed 1G/10G SFP+ uplink ports. These high-speed SFP+ ports are designed to provide robust fiber connectivity to your distribution layer or core network, ensuring low-latency data throughput for bandwidth-intensive enterprise applications and modern workstation environments.
Does the Aruba 6100 JL678A support cloud-based network management? +
Yes, this switch is fully integrated with Aruba Central. It allows IT teams to gain unified visibility and simplified management across the entire network fabric from a single dashboard. This cloud-native approach streamlines zero-touch provisioning, firmware updates, and comprehensive monitoring, which is ideal for branch offices and distributed enterprise deployments that require centralized operational control.
What layer of network operation does the Aruba 6100 JL678A function at? +
The JL678A is a Layer 2 switch utilizing the Aruba AOS-CX operating system. It provides essential switching capabilities, including support for static routing, VLAN tagging, and advanced access control. By leveraging the AOS-CX programmable platform, it delivers high reliability and operational consistency across your network infrastructure, making it a powerful choice for secure, entry-level enterprise access layers.
Can the Aruba 6100 JL678A be mounted in a standard 19-inch server rack? +
Absolutely. The Aruba 6100 JL678A is designed with a standard 1U form factor, making it perfectly suited for mounting in 19-inch racks. Its compact design includes the necessary rack-mounting hardware to ensure a clean, efficient installation in standard data center or telecom closets, providing easy physical access to the front-facing ports for simplified cable management.
Is the Aruba 6100 JL678A suitable for supporting voice and video traffic? +
This switch is well-equipped to handle real-time traffic like voice and video. It supports advanced Quality of Service (QoS) features, allowing you to prioritize latency-sensitive data packets. By configuring traffic prioritization, you can ensure consistent performance for VoIP phones and video conferencing endpoints, preventing jitter and packet loss during periods of high network congestion.
What is the maximum stacking capability for the Aruba 6100 series switches? +
The Aruba 6100 series, including the JL678A, supports virtual stacking through the use of front-panel uplink ports. You can manage multiple switches as a single logical entity to simplify configuration and troubleshooting. This capability is essential for scaling your network capacity while maintaining a streamlined management interface, reducing the overhead typically associated with managing individual access switches.
Does the JL678A model include Power over Ethernet (PoE) capabilities? +
The JL678A is a non-PoE model, meaning it does not provide power to connected devices over Ethernet cabling. It is specifically designed for high-density environments where devices are powered locally or via separate power injectors. This makes it an efficient, cost-effective solution for standard workstations, servers, or legacy equipment that do not require network-based power delivery.
How does the AOS-CX operating system benefit the management of the JL678A? +
AOS-CX provides a modern, programmable interface that offers built-in monitoring and troubleshooting tools. With its REST API support and Python scripting capabilities, network administrators can automate repetitive tasks and integrate the JL678A into wider orchestration workflows. This architecture improves overall system resiliency and accelerates deployment cycles for evolving enterprise network requirements.
How can I obtain a competitive bulk quote for multiple Aruba JL678A units? +
If you are planning a large-scale deployment and require multiple units, BuyRouterSwitch.com offers specialized bulk pricing to help you stay within project budgets. Simply contact our sales team with your project requirements or requested quantities, and we will provide a comprehensive, tailored quote that reflects your specific purchasing needs and volume discounts.
Why should I choose BuyRouterSwitch.com for my Aruba network hardware procurement? +
BuyRouterSwitch.com is a dedicated partner for IT procurement, providing access to a vast inventory of enterprise-grade networking equipment. We specialize in sourcing authentic hardware and delivering a secure, professional purchasing experience. Our expertise ensures that you receive the correct configuration for your infrastructure requirements, backed by our focus on reliability, clear communication, and efficient order processing for organizations of all sizes.
