HPE JL382A - Aruba 1920 Switches
-
Warranty: 90-day return/replacement
Click here to read our Return Policy for returns/replacements.
JL382A
Free ground shipping within the
United States
Government, Federal & Education Procurement
We support quotes, POs, stock docs, and compliance invoicing.
Email: support@buyrouterswitch.com Sam.Gov CAGE Code : 23P86
overview
specifications
resources
faqs
reviews
JL382A Overview

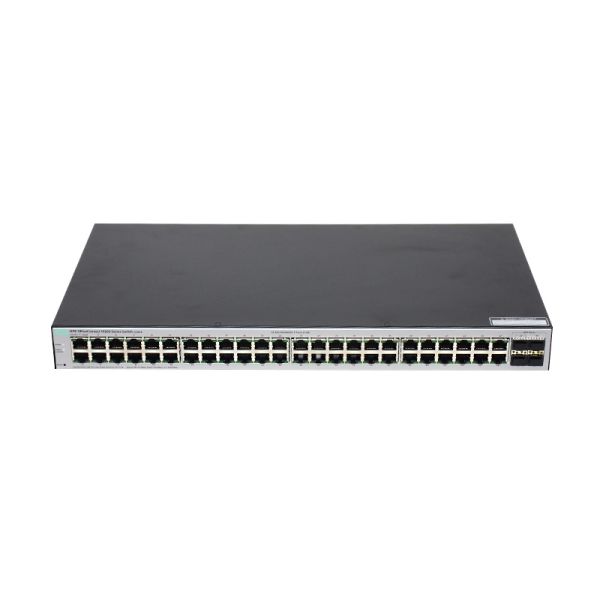

HPE OfficeConnect 1920S 48G 4SFP Switch JL382A
Overview
JL382A Overview
HPE OfficeConnect 1920S 48G 4SFP, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
The HPE OfficeConnect 1920S Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution. The JL382A has 48 x 10/100/1000 ports as well as 4 SFP ports.
Quick Spec
Product Number | JL382A |
Product Description | HPE OfficeConnect 1920S 48G 4SFP Switch |
Ports | (48) RJ-45 auto-negotiating 10/100/1000 ports (4) SFP 100/1000 Mbps ports |
Throughput | up to 77.3 Mpps |
Routing/switching capacity | 104 Gbps |
Product dimensions (H x W x D) | 17.42 x 9.69 x 1.73 in |
The Accessories
Product number | Description |
J9054D | Aruba 100M SFP LC FX 2km MMF XCVR |
J4858D | Aruba 1G SFP LC SX 500m MMF XCVR |
J4859D | Aruba 1G SFP LC LX 10km SMF XCVR |
J8177D | Aruba 1G SFP RJ45 T 100m Cat5e XCVR |
Compare to Similar Items
Product Number | JL382A | JL385A |
Product Description | HPE OfficeConnect 1920S 48G 4SFP Switch | HPE OfficeConnect 1920S 24G 2SFP PoE+ 370W Switch |
Ports | (48) RJ-45 auto-negotiating 10/100/1000 ports (4) SFP 100/1000 Mbps ports | (24) RJ-45 auto-negotiating 10/100/1000 PoE+ ports (12) RJ-45 auto-negotiating 10/100/1000 ports (2) SFP 100/1000 Mbps ports |
Throughput | up to 77.3 Mpps | up to 77.3 Mpps |
Routing/switching capacity | 104 Gbps | 52 Gbps |
OfficeConnect 1920S 48G 4SFP Switch
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 104 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- Power supply included
Summary Description
HPE OfficeConnect 1920S 48G 4SFP, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Need help with JL382A?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
JL382A Specification
JL382A Specification | |
Product Description | HPE OfficeConnect 1920S 48G 4SFP Switch |
Product Dimensions (metric) | 44.25 x 24.61 x 4.39 cm |
Power Consumption Description | 32.2W (maximum), 23.3W (idle) |
Product Differentiator (long) | Advanced smart managed 48-port Gigabit switch from our most popular switch series for small businesses. This model has 48x 10/100/1000 ports as well as 4 SFP ports. |
External I/O Ports | (48) RJ-45 auto-negotiating 10/100/1000 ports (4) SFP 100/1000 Mbps ports |
Routing/switching Capacity | 104 Gbps |
Management Features | Web browser SNMP IEEE 802.3 Ethernet mib |
Throughput | up to 77.3 Mpps |
Input Voltage | 32.2W (maximum), 23.3W (idle) |
Product Dimensions (imperial) | 17.42 x 9.69 x 1.73 in |
Resources
Documents
Frequently Asked Questions
What are the primary port configurations available on the HPE JL382A switch? +
The HPE OfficeConnect 1920S 48G 4SFP (JL382A) features 48 RJ-45 autosensing 10/100/1000 ports for high-density copper connectivity. Additionally, it is equipped with 4 dedicated SFP 1GbE ports, which provide versatile fiber uplink options for your network core or high-speed inter-switch links, making it an excellent choice for SMB environments requiring robust port density.
Does the HPE OfficeConnect 1920S JL382A support Layer 3 static routing? +
Yes, this managed switch supports static IPv4 and IPv6 routing with up to 32 static routes. This functionality allows you to segment your network into virtual local area networks (VLANs) and route traffic between them at the hardware level, significantly improving overall network performance and reducing congestion within your local environment.
How do I manage the JL382A switch in a production environment? +
The JL382A offers an intuitive, browser-based web interface for simplified management. This makes it ideal for IT administrators who require granular control over VLANs, security settings, and port monitoring without the complexity of a full command-line interface. It provides essential insights into traffic patterns while remaining accessible for rapid configuration updates.
Is the HPE JL382A suitable for mounting in a standard 19-inch server rack? +
Absolutely. The JL382A is designed with a standard 1U form factor, making it fully compatible with traditional 19-inch server racks. The unit includes the necessary mounting hardware to ensure secure installation in your rack or cabinet, optimizing airflow and cabling organization within your telecommunications closet or data center environment.
What security features are built into the HPE 1920S 48G switch? +
This switch incorporates several security protocols, including Access Control Lists (ACLs), IEEE 802.1X port-based authentication, and BPDU protection. These features help prevent unauthorized access to your network infrastructure and defend against common attacks, ensuring that only authenticated devices can communicate while protecting your network topology from unauthorized configuration changes.
Can the JL382A be used to manage traffic for bandwidth-intensive applications? +
It excels in traffic management through advanced features such as Rate Limiting and Quality of Service (QoS). By prioritizing critical voice and video traffic while limiting bandwidth for less essential applications, the switch ensures that your business-critical data flows without interruption, maintaining a stable and reliable performance profile for your users.
What is the primary difference between the 1920S and entry-level unmanaged switches? +
Unlike unmanaged switches that are 'plug-and-play' only, the 1920S JL382A is a smart-managed Layer 3 switch. It provides visibility into network health, allows for port-level security configurations, and enables advanced traffic prioritization. This level of control is vital for growing businesses that need a scalable network that can adapt to evolving performance and security requirements.
How does the JL382A contribute to energy efficiency in a network closet? +
This switch supports the Energy Efficient Ethernet (IEEE 802.3az) standard. It automatically adjusts power consumption based on link activity and cable length, reducing electricity usage during off-peak hours or for ports with inactive devices. This helps lower operational costs and heat dissipation in environments where power efficiency is a primary concern.
How can I obtain a competitive bulk quote for multiple JL382A units? +
If you are planning a large-scale deployment or infrastructure refresh, contact our sales team directly via the BuyRouterSwitch.com website. We specialize in volume pricing for enterprise clients and can provide a custom quote tailored to your specific project requirements, ensuring you receive the best possible value for your hardware procurement.
Why should I choose BuyRouterSwitch.com for my HPE networking hardware? +
BuyRouterSwitch.com is a dedicated partner for IT procurement professionals seeking reliable access to enterprise-grade networking gear. We focus on streamlining your purchasing experience, providing authentic products through secure ordering channels, and offering expert support to ensure your equipment arrives ready for deployment in your production environment.
