| Name: |
IE-2000U-4TS-G - Cisco Industrial Ethernet 2000 Switches |
|
| Mfr. Part #: |
IE-2000U-4TS-G
|
|
| Condition: | New | |
| Authenticity: | Original Genuine OEM | |
| Availability: | In Stock | |
| Brand: | Cisco | |
| Price: | $1,125.34 | |
IE-2000U-4TS-G
Shipping:
Free ground shipping within United States up to 10LBS
᛫ Items in stock will arrive within the estimated delivery time.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
᛫ Preordered items need to be negotiated for delivery time.
᛫ Compensation if delivery delayed.
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
-
Genuine Guarantee
-
Price Protection
-
Bulk Order Rebate
-
30 Day Return Policy
overview
specifications
resources
reviews
IE-2000U-4TS-G Overview
IE 2000U 4 x 10/100, 2 SFP GE ports IE-2000U-4TS-G
Overview
Cisco IE-2000U-4TS-G, Managed, Fast Ethernet (10/100)
The IE-2000U-4TS-G from the Cisco IE 2000U series switch adopts the IE 2000U 4 x 10/100, 2 SFP GE ports.
The Cisco Industrial Ethernet (IE) 2000U Switches are compact switches for the harsh, rugged environments often found in the energy and utility industries. IE 2000U switches support the communications needs of the utility- and customer-owned energy-delivery infrastructure across distributed generation, transmission, and distribution sectors. This infrastructure includes substation applications supporting electrical transmission and distribution, renewable generation, oil and gas, water, distributed generation, cogeneration, and trackside operations.
Quick Spec
Model | IE-2000U-4TS-G |
Ports | 4 x 10/100 + 2 x Gigabit SFP |
Subtype | Fast Ethernet |
Capacity | Virtual interfaces (VLANs): 255 ¦ IGMP groups: 255 |
Interfaces | 4 x 100Base-TX RJ-45 ¦ 2 x 1000Base-X SFP uplink ¦ 1 x console ¦ 1 x USB |
Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
RAM | 256 MB |
Flash Memory | 64 MB |
Software Included | Cisco IOS LAN Base |
Dimensions | 5.1 x 3.15 x 4.51 in (130 x 80 x 115 mm) |
Product Details

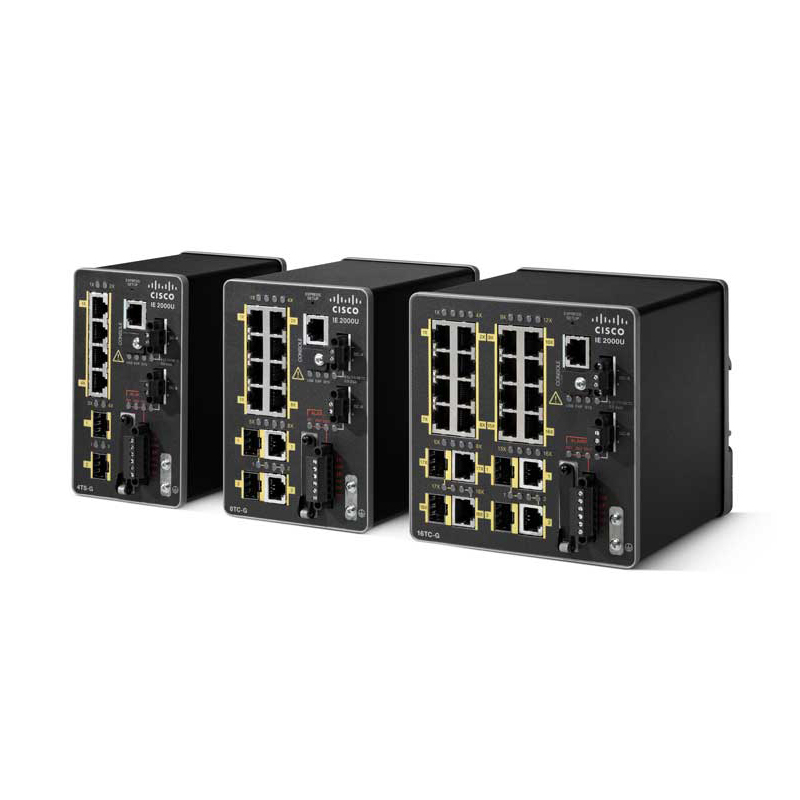

Cisco IE 2000U Series Switches are designed for DIN rail mounting, low port counts, and small sizes. They offer:
● Four, eight, or 16 Fast Ethernet ports (either SFP (Small Form-Factor Pluggable) or 100BaseT RJ45 downlinks depending on the model); fixed configurations with a compact form factor
● Two Gigabit Ethernet uplink ports (SFP, RJ45 or combo) and up to 2 additional FE uplinks depending on model
● IEC-62439-3: Parallel Redundancy Protocol support on 8 and 16 port models
● Dual-input DC power supply, alarm relays, DIN rail mount
● Swappable SD flash card required and included
● Mini-USB and traditional serial console connector
● Substation environmental compliance and certifications: IEC-61850-3 and IEEE 1613
● Conformal coating available on specific models
Software and Accessories part numbers
Product Number | Description |
1 GB industrial-grade Secure Digital (SD) memory card | |
19 in. DIN rail mount kit |
Compare to Similar Items
Product Number | Total Ports | RJ45 Ports | Combo Ports | SFP Ports | Software | IEEE 1588 | PRP | PoE(+) |
IE-2000U-4TS-G | 6 | 4 FE | 2 GE | LAN Base | ||||
6 | 2 GE + 4 FE | LAN Base | ||||||
6 | 2 GE + 4 FE | LAN Base | ||||||
10 | 8 FE | 2 GE | LAN Base | X | X | |||
20 | 16 FE | 2 GE + 2 FE | LAN Base | X | X | |||
20 | 16 FE | 2 GE + 2 FE | LAN Base | X | X | |||
18 | 16 FE | 2 GE | LAN Base | X | X | X |
4x 10/100, 2x SFP GE, 256 MB DRAM, 1 GB SD flash
- Managed Web-based management BRIDGE-MIB (RFC1493), BGP4-MIB (RFC1657), CISCO-CABLE-DIAG-MIB, CISCO-BULK-FILE-MIB, CISCO-CDP-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONF-MAN-MIB, CISCO-DATA-COLLECTION-MIB, CISCO-ENVMON-MIB, CISCO-ERR-DISABLE-MIB, CISCO-ETHERNET-ACCESS-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-IETF-DOT3-OAM-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IPLSA-ETHERNET-MIB, CISCO-PAGP-MIB, CISCO-PAE-MIB, CISCO-PING-MIB, CISCO-POE-EXTENSIONS-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-IMAGE-MIB, CISCO-LAG-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-RTTMON-MIB, CISCO-STACK-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, ENTITY-MIB(RFC2737), ETHERLIKE-MIB, IEEE8021-PEA-MIB, IEEE8023-LAG-MIB, IF-MIB (RFC 1573), IGMP-MIB, IPMROUTE-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, PIM-MIB, RFC1213-MIB (MIB-II), RMON-MIB (RFC 1757), RMON2-MIB (RFC 2021), SNMP-FRAMEWORK-MIB (RFC2571), SNMP-MPD-MIB (RFC 2572), SNMP-NOTIFICATION-MIB (RFC 2573), SNMP-TARGET-MIB (RFC 2573), SNMPv2-MIB (RFC 1907), SNMP-USM-MIB (SNMP-USER-BASED-SM-MIB) (RFC2574), SNMP-VACM-MIB (SNMP-VIEW-BASED-ACM-MIB) (RFC2575), TCP-MIB (RFC 2012), UDP-MIB (RFC 2013)
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 4
- MAC address table: 8000 entries Switching capacity: 7.6 Gbit/s
- Access Control List (ACL)
Summary Description
Cisco IE-2000U-4TS-G, Managed, Fast Ethernet (10/100)
Need help with IE-2000U-4TS-G?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
IE-2000U-4TS-G Specification
IE-2000U-4TS-G Specification | |
| General | |
| Device Type | Switch - 6 ports - managed |
| Enclosure Type | DIN rail mountable |
| Subtype | Fast Ethernet |
| Ports | 4 x 10/100 + 2 x Gigabit SFP |
| Performance | Forwarding performance (64-byte packet size): 6.5 Mpps |
| Capacity | Virtual interfaces (VLANs): 255 ¦ IGMP groups: 255 |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, HTTPS, SSH, CLI |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Port Security, Remote Switch Port Analyzer (RSPAN) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Expansion / Connectivity | |
| Interfaces | 4 x 100Base-TX RJ-45 ¦ 2 x 1000Base-X SFP uplink ¦ 1 x console ¦ 1 x USB |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Miscellaneous | |
| Compliant Standards | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, UL 508, CSA C22.2 No. 60950-1 |
| Software / System Requirements | |
| Software Included | Cisco IOS LAN Base |
| Dimensions | |
| Width | 2.9 in |
| Depth | 4.5 in |
| Height | 5 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 5 years - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -58 °F |
| Max Storage Temperature | 185 °F |
