| Name: |

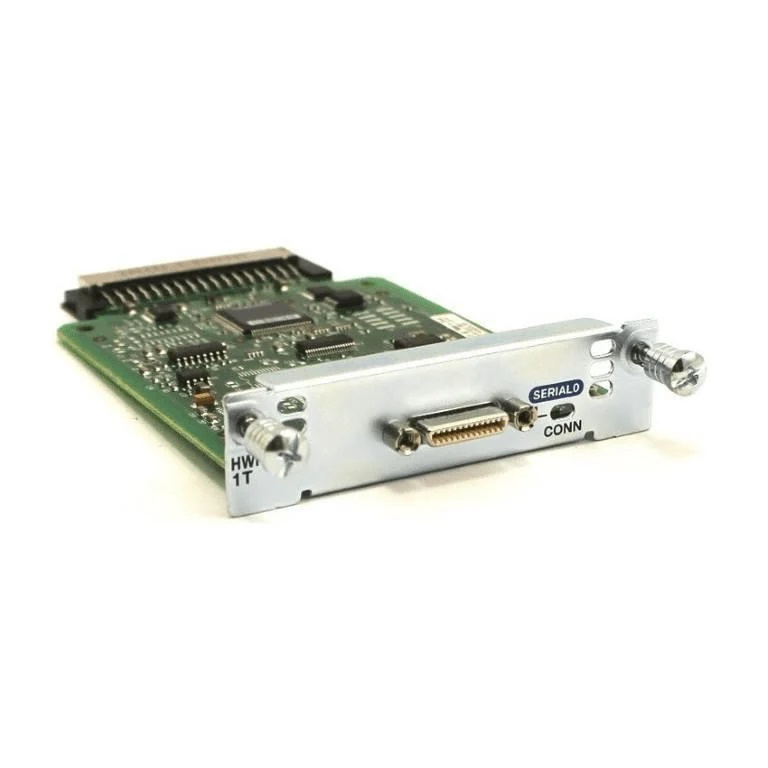

HWIC-1T Cisco Router High-Speed WAN Interface card |
| Mfr. Part #: |
HWIC-1T
|
| Condition: | Refurbished |
| Availability: | In Stock |
| Brand: | Cisco |
| Price: | $50.74 |
HWIC-1T
Shipping:
Free ground shipping within United States up to 10LBS
Accepting POs:
We accept Purchase Orders from Government Agencies, Defense, Hospitals, Universities, Schools and Businesses.
-
Genuine Guarantee
-
Price Protection
-
Bulk Order Rebate
-
30 Day Return Policy
overview
specifications
reviews
HWIC-1T Overview
1-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card HWIC-1T
Overview
Cisco HWIC-1T, Serial
Serial and asynchronous high-speed WAN interface cards (HWICs) provide highly flexible connections for Cisco1800, 1900, 2800, 2900, 3800, and 3900 Series Integrated Services Routers. These HWICs help customers enable applications such as WAN access, legacy protocol transport, console server, and dial access server. You can mix and match HWICs to tailor cost-effective solutions for common networking problems such as remote network management, external dial-modem access, low-density WAN aggregation, legacy protocol transport, and high-port-density support.
Cisco offers four new serial and asynchronous HWICs:
• Cisco 1-Port T1/Fractional T1 DSU/CSU WAN Interface Card (HWIC-1DSU-T1)
• Cisco 1-Port Serial WAN Interface Card (HWIC-1T)
• Cisco 2-Port Serial WAN Interface Card (HWIC-2T)
• Cisco 2-Port Asynchronous/Synchronous Serial WAN Interface Card (HWIC-2A/S)
Quick Specs

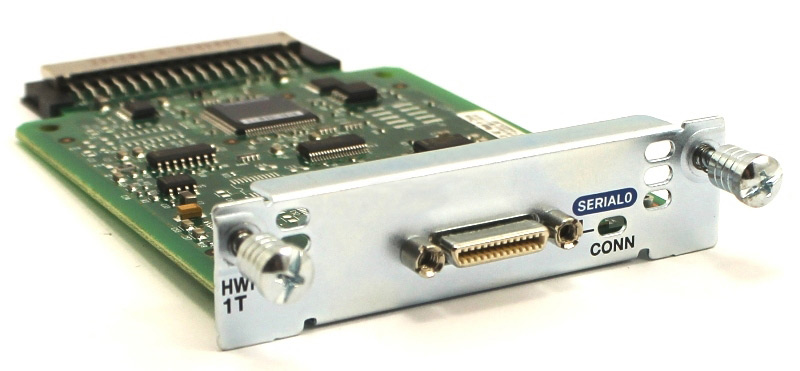

Figure 1 shows the appearance of HWIC-1T
Model | HWIC-1T |
Synchronous Support | Yes |
Synchronous Maximum Speed (Per Port) | 8 Mbps |
Asynchronous Support | Yes |
Asynchronous Maximum Speed (Per Port) | 115.2 kbps |
Bisync Support | Yes |
Serial Protocols | EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21 |
Network Clock Synchronization | Yes |
NEBS | Type 2/4 |
TelecommPTT | • TBR1 and 2 • JATE Digital • NEBS |
Safety Approvals | • UL 60950 (United States) • CAN/CSA 22.2, CSA60950 (Canada) • GB 4943 (China) • AS/NZS 60950 (Australia/New Zealand) • EN60950 (Europe) • IEC 60950 (International) |
Immunity | • EN300386 • CISPR24 • EN55024 • EN50082-1 • 61000-4-2/3/4/5/6/8/11 |
Emissions | • FCC Part 15 Class A • ICES-003 Class A • EN55022 Class A • CISPR22 Class A • AS/NZSCISPR22 Class A • VCCI Class A • EN 300386 • EN61000-3-2/3 • CNS13438 |
Physical Specifications | • Singlewide HWIC, no slot restrictions • Dimensions (H x W x D) 0.8 x 3.1 x 5.6 in. (2.1 x 7.9 x 14.2 cm) |
Environmental Specifications | • Operating temperature: 32 to 104°F (0 to 40°C) • NEBS short-term operating temperature: 32 to 131°F (0 to 50°C) • Storage temperature: -4 to 149°F (-20 to 65°C) • Relative humidity: 10 to 90%, noncondensing |
Datasheet Download
Cisco ISR One- and 2-Port Serial and Asynchronous High-Speed WAN Interface Cards Datasheet.pdf
Summary Description
Cisco 1-Port Serial HWIC Front Panel, Serial
Need help with HWIC-1T?
Get pricing, availability, lead time, and compatible options from our team. Chat with us live or email support@buyrouterswitch.com
Specification
HWIC-1T Specification
Cisco 1-Port Serial WAN Interface Card (HWIC-1T) | |
Manufacturer | Cisco |
Part Number | HWIC-1T |
Device Type | Expansion module |
Form factor | Plug-in module |
Specifications | |
Synchronous Support | Yes |
Synchronous Maximum Speed (Per Port) | 8 Mbps |
Asynchronous Support | Yes |
Asynchronous Maximum Speed (Per Port) | 115.2 kbps |
Bisync Support | Yes |
Serial Protocols | EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21 |
Network Clock Synchronization | Yes |
NEBS | Type 2/4 |
TelecommPTT | TBR1 and 2 JATE Digital NEBS |
Safety Approvals | UL 60950, CAN/CSA 22.2, CSA60950, GB 4943, AS/NZS 60950, EN60950, IEC 60950 |
Immunity | EN300386, CISPR24, EN55024, EN50082-1, 61000-4-2/3/4/5/6/8/11 |
Emissions | FCC Part 15 Class A, ICES-003 Class A, EN55022 Class A, CISPR22 Class A, AS/NZSCISPR22 Class A, VCCI Class A, EN 300386, EN61000-3-2/3, CNS13438 |
Physical Specifications | Singlewide HWIC, no slot restrictions Dimensions (H x W x D) 0.8 x 3.1 x 5.6 in. (2.1 x 7.9 x 14.2 cm) |
Environmental Specifications | Operating temperature: 32 to 104°F (0 to 40°C) NEBS short-term operating temperature: 32 to 131°F (0 to 50°C) Storage temperature: -4 to 149°F (-20 to 65°C) Relative humidity: 10 to 90%, noncondensing |
